Siemens 7MC7216-3GB20-0AA0

SITRANS TS200 Temperature sensor (Ø 3mm) Pt100 Cl

MPN
7MC7216-3GB20-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 7MC7216-3GB20-0AA0?

SITRANS TS200 Temperature sensor (Ø 3mm) Pt100 Cl. A with fast response time, sensor length 115mm and integrated thermowell connection M10. Inclusive IO-Link / 4...20mA output, stainless steel housing 316L

Specifications

design, dimensions and weights

length / of the enclosure88 mm
outer diameter / of the enclosure18 mm
weight / without packaging0.045 kg
length / of packaging200 mm
width / of packaging10 mm
height / of packaging1 mm
weight / with packaging0.05 kg
physical measuring principletemperature determination by resistance measurement

electrical data / input

measured variableTemperature
unit / of the measurand°C
temperature measuring range / at input-50 ... +350
type of connection technology / at input / for resistance thermometer4-wire system
design of the sensor / at input / is supported / according to EN 60751Pt100
number of measuring resistors1
delayed display (T90) / at electronic damping time constant0.1 ... 3.7 s
sensor current0.0001 A
response time / T633.5 s

electrical data / output

number of analog outputs1
signal range / at analog output4 ... 20 mA
diagnostics function / at analog output / sensor fault / according to NAMUR NE43Yes
design of the digital outputIO-Link, transistor (NPN), transistor (PNP)
number of digital outputs1
connector typeM12 plug, 4-pole, A-coded
product feature / connection plug according to IEC 61076-2-101Yes
accuracy class / for resistance thermometers / according to IEC 60751Accuracy class A
type of connection technology2- and 3-wire technology
type of voltageDC
supply voltage / at DC / 4 mA ... 20 mA8 ... 32 V
supply voltage / at DC / IO-Link / switching output18 ... 30 V
consumed active power – maximum0.8 W
consumed active power – IO-Link0.65 W
consumed active power – 4 mA ... 20 mA0.55 W
consumed active power – switching output0.8 W
product function – reverse polarity protectionYes
product function – galvanic isolation between in and outputsNo
product function – localization via LEDYes
type of light sourceRGB-LED, multicolor

IO-Link

protocol / between master and IO-Link device / Version 1.1Yes
symbol data transfer rate / to COM238.4 kBd
cycle time / minimum8.4 ms
data volume / of process data / per module input4 byte
type of IO-Link port / AYes

switching output

active current / maximum0.15 A
product function / at the digital outputs / parameterizable OFF delayYes

ambient conditions

ambient temperature / during operation-40 ... +80 °C
relative humidity / during operation0 ... 100 %
ambient temperature / during storage-40 ... +80 °C
protection class IP / of the enclosureIP67
standard / for EMCEN 61326-1

mechanical data

design of the housingcompact version, transmitter integrated
design of the process connectionfemale thread
nominal size / of the process connectionM10 x 1
material / of the process connectionstainless steel
material number / of the process connection – according to AISI316L
material / of the sensor sheathStainless steel
material number / of the sensor sheath – according to EN 10027-21.4404
material number / of the sensor sheath – according to AISI316L
Material / of the connection headStainless steel
installation length115 mm
outer diameter / of the temperature measurement insert3 mm
vibration resistance / according to IEC 60068-2-610 g

factory setting

design of the sensor / is supported / according to EN 60751Pt100
design of the sensor / in factory setting / according to EN 60751Pt100
type of connection technology / in factory setting / for resistance thermometer4-wire system
temperature measuring range / in factory setting0 ... 150 °C

environmental footprint

Environmental Product DeclarationYes

global warming potential

global warming potential [CO2 eq] – total17.4 kg
global warming potential [CO2 eq] – during manufacturing0.85 kg
global warming potential [CO2 eq] – during operation16.5 kg
global warming potential [CO2 eq] – after end of life0.002 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

7MC7216-3GB20-0AA0: frequently asked questions

When can 7MC7216-3GB20-0AA0 be shipped?

7MC7216-3GB20-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7MC7216-3GB20-0AA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7MC7216-3GB20-0AA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7MC7216-3GB20-0AA0, subject to availability and destination.

More Siemens parts

Siemens 7MC2021-2LC – SHEATHED THERMOCOUPLE WITH CONNECTION HEAD, FORM B SHEATH DIAMETER 3 MM; INCONEL 1 thermocouple NICR/NI
Siemens
7MC2021-2LC

SHEATHED THERMOCOUPLE WITH CONNECTION HEAD

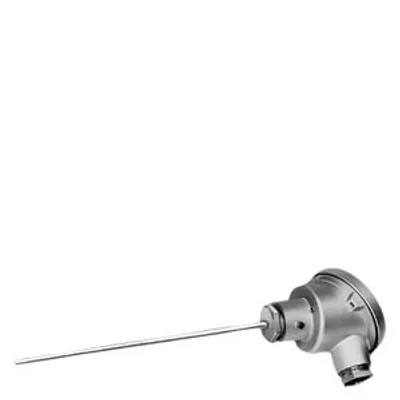

Siemens 7MC2021-2LD – SHEATHED THERMOCOUPLE WITH CONNECTION HEAD, FORM B SHEATH DIAMETER 3 MM; INCONEL 2 THERMOCOUPLES NICR/NI
