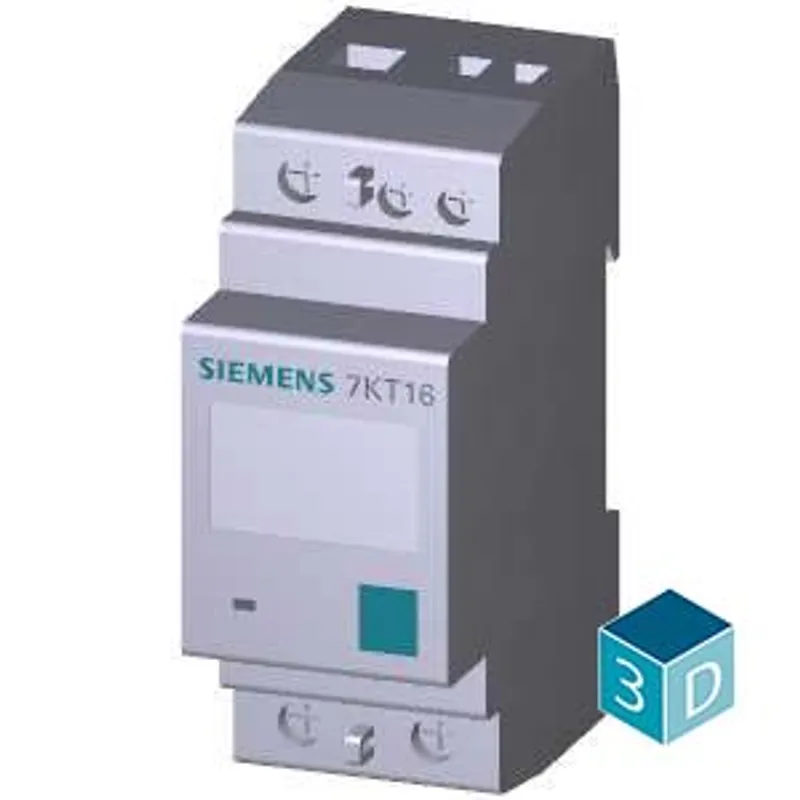

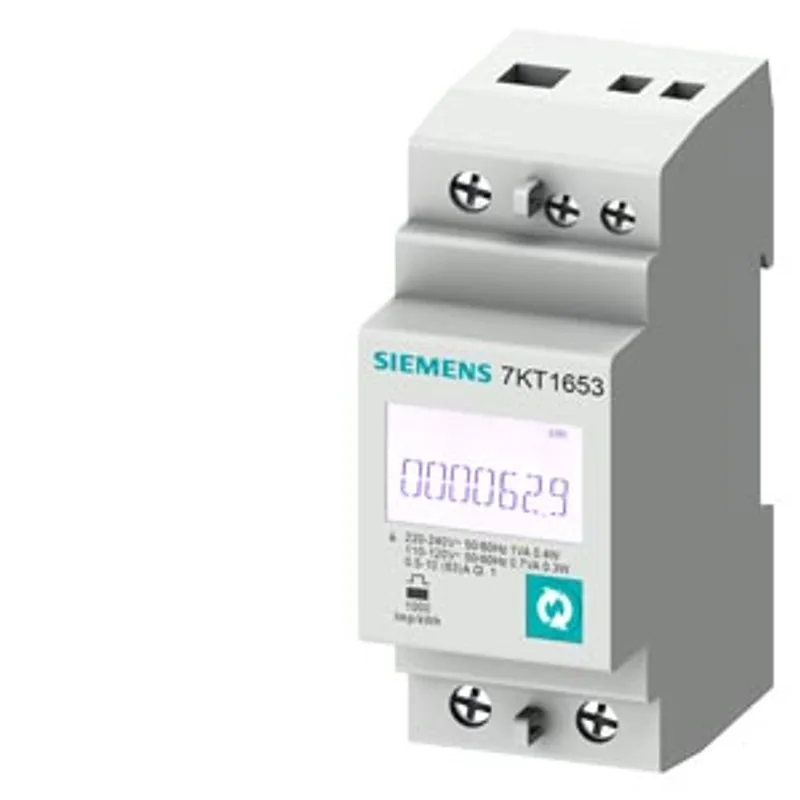

Siemens 7KT1653
SENTRON, measuring device, 7KT PAC1600, LCD, L-N: 230 V, 63 A, strd rail instr., sing.-ph., M-Bus
- MPN
- 7KT1653
- Category
- 7KT PAC1600 Measuring Devices
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7KT1653?
SENTRON, measuring device, 7KT PAC1600, LCD, L-N: 230 V, 63 A, strd rail instr., sing.-ph., M-Bus, apparent/active/ reactive energy, self-powered, screw terminals
Specifications
Model
| product brand name | SENTRON |
| product designation | Energy counter |
| product quality calibrated | No |
| type of measured value detection load profile | No |
| type of signal | S0 |
| design of the energy counter | Solid-state |
| design of the pulse output | Electrical |
General technical data
| energy-related number of pulses — minimum | 1 1/kVAh |
| energy-related number of pulses — maximum | 100 1/kVAh |
| type of the power supply network | three-wire/four-wire |
| operating voltage — between L and L minimum | 323 V |
| operating voltage — between L and L maximum | 456 V |
| operating voltage — between N and L minimum | 187 V |
| operating voltage — between N and L maximum | 264 V |
Protection class
| protection class IP | IP40 |
Main circuit
| operating frequency rated value — minimum | 45 Hz |
| operating frequency rated value — maximum | 65 Hz |
| operational current rated value | 63 A |
Suitability
| suitability for use | Import/export |
Product function
| product function — backstop | Yes |
| product function — blocking code | Yes |
Display and operation
| display version | digital |
Number
| number of characters that can be displayed | 10 |

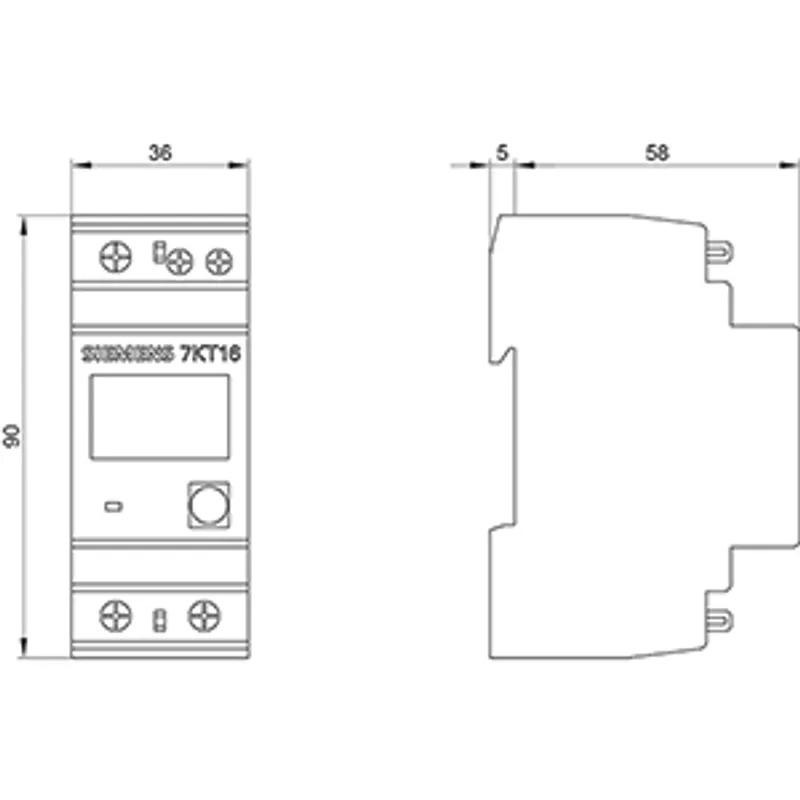

Mechanical Design
| number of modular width units | 2 |
| fastening method | DIN rail device |
| Net Weight | 144 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
7KT1653: frequently asked questions
When can 7KT1653 be shipped?
7KT1653 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7KT1653 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7KT1653 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7KT1653, subject to availability and destination.
