Siemens 7KN1110-0XC05

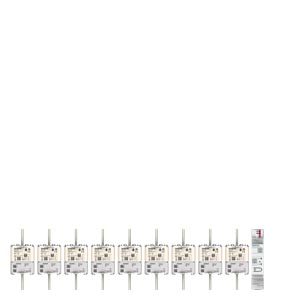

Bundle 5 consisting of 1 piece 7KN1110-0MC00 plus 9 pieces 3NA3244-4KK02 plus 9 pieces 3NX8201
- MPN
- 7KN1110-0XC05
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7KN1110-0XC05?
Bundle 5 consisting of 1 piece 7KN1110-0MC00 plus 9 pieces 3NA3244-4KK02 plus 9 pieces 3NX8201
Specifications
Model
| product brand name | SENTRON |
| product designation | System bundle 5 |
| design of the product | starter set for easy first use of the SENTRON COM system via SENTRON Powercenter 1000 |
| product type designation | Powercenter 1000 |
| design of the housing | DIN rail device |
General technical data
| degree of pollution according to EN 60664-1 | 2 |
| number of interfaces according to wireless | wireless, Bluetooth |
| guideline via radio-controlled system | 2014/53/EU |
| frequency with radio transmission minimum | 2 400 MHz |
| frequency with radio transmission maximum | 2 483.5 MHz |
| vibration resistance under ambient conditions according to IEC 60068-2-6 | 1-6 Hz, 15 mm, 6-500 Hz, 20 m/s² |
| consumed current maximum | 100 mA |
Supply voltage
| supply voltage at DC rated value — minimum | 19.2 V |
| supply voltage at DC rated value — maximum | 28.8 V |
| type of voltage of the supply voltage | 24 V DC SELV |
Protection class
| protection class IP | IP20 |
Suitability
| suitability for use | 5ST3 COM, 5SL6 COM, 5SV6 COM, 3NA COM |
Communication
| number of interfaces according to wireless | 2 |
| standard for wireless communication bluetooth note | V5.1, |
| number of interfaces according to Industrial Ethernet | 1 |
| protocol is supported — MODBUS protocol | Yes |
| protocol is supported — other protocols | Yes |
Number
| number of supported devices | 24 |
| type of terminals screwless | yes |
| connectable conductor cross-section — minimum | 0.2 mm² |
| connectable conductor cross-section — maximum | 1.5 mm² |
Mechanical Design
| height | 90 mm |
| width | 18 mm |
| depth | 70 mm |
| fastening method rail mounting | Yes |
| Net Weight | 6 442 g |
Environmental conditions
| relative humidity with condensation according to IEC 60068-2-38 maximum | 93 % |
| relative humidity with condensation according to IEC 60068-2-38 | RH incl. condensation/frost (no commissioning with condensation) |
| shock acceleration during operation according to EN 60068-2-27 | 150 m/s², 11 ms |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 60 °C |
| ambient temperature during storage and transport — minimum | -40 °C |
| ambient temperature during storage and transport — maximum | 85 °C |
