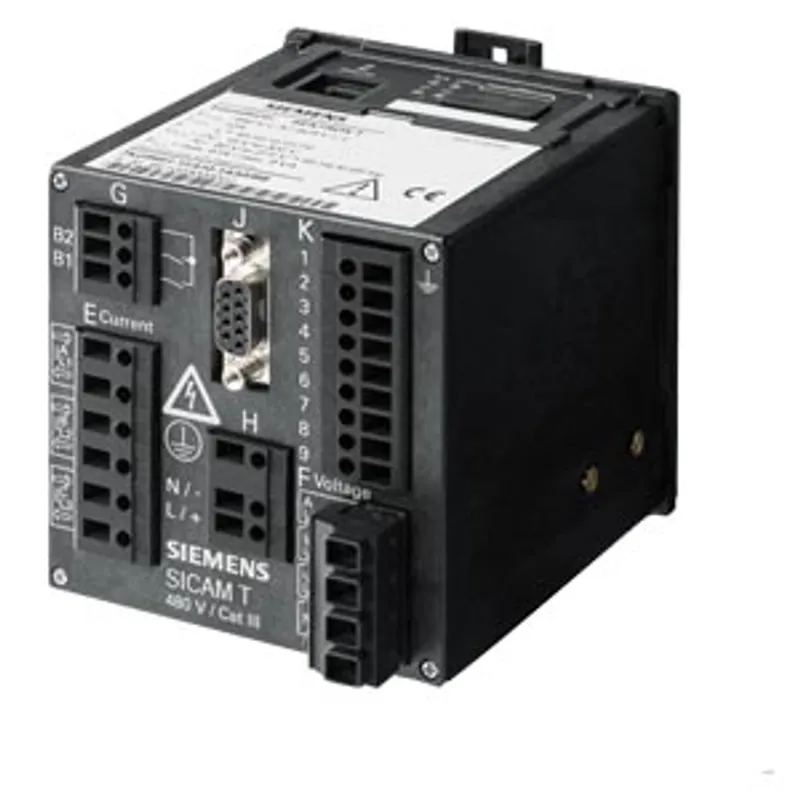

Siemens 7KG9661-1FA00-1AA0

Digital measuring instrument Transmitter SICAM T, Standard mounting rail device without display

MPN: 7KG9661-1FA00-1AA0
Category: SICAM T - Multifunctional Transducer

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 7KG9661-1FA00-1AA0?

Digital measuring instrument Transmitter SICAM T, Standard mounting rail device without display, Enclosure 96 mm x 96 mm x 100 mm, IP20, 2 binary outputs, Ethernet interface with Modbus TCP, Ohmic voltage divider, 4 analog outputs, without serial interface and communication protocol

Specifications

Measuring functions

measuring procedure / for voltage measurement	resistive voltage divider
sampling frequency / per sampling cycle	3 200 Hz
number of harmonics	0
product function / phase angle measurement	Yes
product function / active power measurement	Yes
product function / reactive power measurement	Yes
product function / apparent power measurement	Yes
product function / querying of limit violations	Yes
product function / logic function	No
type of measured value detection / min./max. values	No
type of measured value detection / mean values	Yes
accuracy class / of the measuring instrument / for measured variable active power / according to IEC 62053-22	0,2S
accuracy class / of the measuring instrument / for measured variable reactive power	0,5

File formats

type of data transmission / via CSV

Energy Management functions

product function / active energy measurement	Yes
product function / reactive energy measurement	Yes
product function / apparent energy measurement	Yes

Measuring inputs

number of inputs / for voltage measurement	4
number of inputs / for current measurement	3
input voltage / between L and L / maximum	690 V
input voltage / between L and N / maximum	400 V
input current / maximum	10 A

Supply voltage

supply voltage / at AC	110 ... 230 V
supply voltage / at DC	24 ... 250 V
measuring range frequency / at the measurement inputs	45 ... 65 Hz
type of voltage / of the supply voltage	AC/DC

Inputs / Outputs

number of analog inputs	0
number of digital inputs	0
number of analog outputs	4
number of digital outputs	2

Communication

protocol / is supported / IEC 61850	No
protocol / is supported / Modbus TCP	Yes
protocol / is supported / Modbus RTU	No
protocol / is supported / SNMP	No
protocol / is supported / OPC UA with PubSub	No
protocol / is supported / IEC 60870-5-103	No
protocol / is supported / IEC 60870-5-104	No
communication function / Modbus RTU as master	No
number of ports / of the Ethernet interface	1
product function / gateway function for Modbus RTU	No

Cybersecurity

type of access control / role-based access control (RBAC)	No
product function / logging via Audit log	No
product function / logging via Security Eventlog	No
service / as web server / HTTPS	Yes
product function / firmware identifier	No

Time synchronization

type of time synchronization

NTP

Mechanical Design

width	96 mm
height	96 mm
depth	100 mm
weight	500 g
fastening method / DIN-rail mounting	Yes
fastening method / wall mounting	Yes
fastening method / rack mounting	Yes
type of electrical connection	screw terminal
connectable conductor cross-section	0.2 ... 2.5 mm²

Degree of protection / protection class

protection class IP / on the front	IP20
protection class IP / rear side	IP20

Environmental conditions

ambient temperature / during operation	-25 ... +55 °C
ambient temperature / during storage	-25 ... +70 °C

Approval certification

certificate of suitability / CE marking	Yes
certificate of suitability / UL approval	Yes
