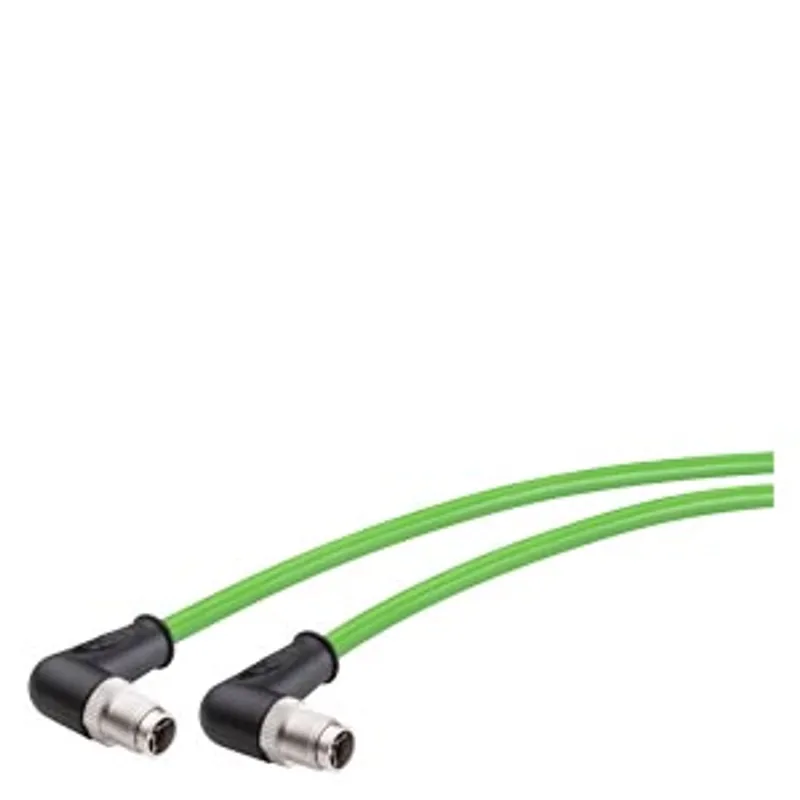

Siemens 6XV1878-5GH30
IE TP Cord M12-90/M12-90, pre-assembled IE Flexible Cable, with 2 M12 connectors (X-coded)
- MPN
- 6XV1878-5GH30
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1878-5GH30?
IE TP Cord M12-90/M12-90, pre-assembled IE Flexible Cable, with 2 M12 connectors (X-coded); 90-degree cable outlet; length 3.0 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1878-5GH30 |
| suitability for use | For connecting Industrial Ethernet stations with an M12 interface (e.g. SCALANCE W and XP-200) |
| cable designation | S/FTP |
| wire length | 3 m |
electrical data
| number of electrical connections | 2 |
| attenuation factor per length — at 10 MHz / maximum | 0.086 dB/m |
| attenuation factor per length — at 100 MHz / maximum | 0.28 dB/m |
| attenuation factor per length — at 300 MHz / maximum | 0.402 dB/m |
| attenuation factor per length — at 600 MHz / maximum | 0.735 dB/m |
| impedance — at 1 MHz ... 100 MHz | 100 Ω |
| near-end crosstalk per length — at 100 MHz | 0.724 dB/m |
| near-end crosstalk per length — at 300 MHz | 0.653 dB/m |
| near-end crosstalk per length — at 600 MHz | 0.608 dB/m |
| loop resistance per length / maximum | 290 mΩ/m |
| insulation resistance coefficient | 5000 GΩ·m |
| operating voltage — RMS value | 80 V |
| NVP value in percent | 68 % |
mechanical data
| number of electrical cores | 8 |
| design of the shield | S/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect | No |
| core diameter — of AWG26 insulated conductor | 0.48 mm |
| outer diameter — of the wire insulation | 1 mm |
| outer diameter — of the inner sheath of the cable | 5.4 mm |
| outer diameter — of cable sheath | 6.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | PUR |
| color — of the insulation of data wires | white/blue, white/orange, white/green, white/brown |
| color — of cable sheath | green |
| bending radius — with single bend / minimum permissible | 32.5 mm |
| bending radius — with multiple bends / minimum permissible | 65 mm |
| tensile load / maximum | 100 N |
| weight per length | 45 kg/km |
plug
| type of plug interlock | screwed |
| design of plug-in connection | M12-90 |
| connector coding | M12 |
| connector coding — of the M12 circular connector | X-coded |
ambient conditions
| ambient temperature — during operation | -30 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| ambient temperature — during installation | -40 ... +80 °C |
| fire behavior | flame resistant according to IEC 60332-1-2, smoke density according to IEC 61034 |
| chemical resistance — to mineral oil | oil resistant according to DIN EN 60811-2-1 |
| chemical resistance — to grease | Conditional resistance |
| chemical resistance — to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
| protection class IP | IP65, IP67 |
product features, product functions, product components / general
| product feature — halogen-free | Yes; acc. to IEC 60754-1, IEC 61034 |
| product feature — PoE capability | Yes |
| product feature — PoE+ capability | Yes |
| product feature — PoE++ capability | Yes |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; AWM Style 21815, Wiring Harness |
| UL/ETL style / 600 V Rating | No |
| certificate of suitability | ISO/IEC 11801-1, IEC 61035 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — RoHS conformity | Yes |
| standard for structured cabling | Cat6A |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
