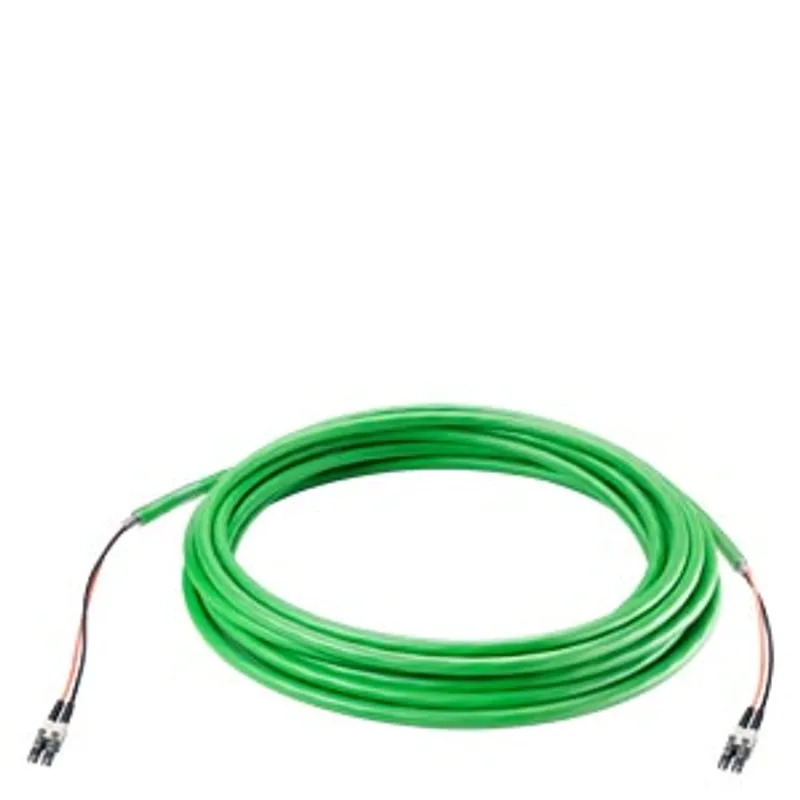

Siemens 6XV1873-5AT15
FO Standard Cable GP 50/125, pre-assembled with 2x LC duplex connectors, length 150 m.
- MPN
- 6XV1873-5AT15
- Category
- Glass fiber-optic cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1873-5AT15?
FO Standard Cable GP 50/125, pre-assembled with 2x LC duplex connectors, length 150 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1873-5AT15 |
| suitability for use | Cable for installation indoors and outdoors, UL approval |
| version of the assembled FO cable | Pre-assembled with 2x LC DUPLEX connectors |
| cable designation | AT-W(ZN)YY 2x1 G 50/125 OM2++ |
| wire length | 150 m |
optical data
| attenuation factor per length — at 850 nm / maximum | 2.7 dB/km |
| attenuation factor per length — at 1300 nm / maximum | 0.7 dB/km |
| bandwidth length product — at 850 nm | 600 GHz·m |
| bandwidth length product — at 1300 nm | 1200 GHz·m |
mechanical data
| number of fibers / per FOC core | 1 |
| number of FO cores / per FOC cable | 2 |
| version of the FO conductor fiber | Multi-mode gradient fiber 50/125 µm, OM 2 |
| design of the FOC core | Hollow core, filled, diameter 1400 µm |
| design of the fiber-optic cable | segmentable |
| outer diameter — of the optical fibers | 50 µm |
| outer diameter — of the optical fiber sheath | 125 µm |
| outer diameter — of the FOC core sheath | 2.9 mm |
| symmetrical deviation / of the outer diameter of the FOC core sheath | 0.1 mm |
| width / of cable sheath | 7.4 mm |
| thickness / of cable sheath | 4.5 mm |
| material — of the fiber-optic cable core | Quartz glass |
| material — of the optical fiber sheath | Quartz glass |
| material — of the FOC core sheath | PVC |
| material — of the fiber-optic cable sheath | PVC |
| material — of the strain relief | Aramid fibers |
| color — of the FOC core sheath | orange/black |
| color — of cable sheath | green |
| bending radius — with single bend / minimum permissible | 45 mm |
| bending radius — with multiple bends / minimum permissible | 65 mm |
| tensile load — during installation / short-term | 1200 N |
| tensile load — during operation / maximum | 500 N |
| short-term shear force per length | 600 N/cm |
| continuous shear force per length | 400 N/cm |
| weight per length | 40 kg/km |
ambient conditions
| ambient temperature — during operation | -25 ... +80 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during transport | -25 ... +80 °C |
| ambient temperature — during installation | -5 ... +50 °C |
| fire behavior | flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A) |
| chemical resistance — to mineral oil | conditional resistance |
| chemical resistance — to grease | conditional resistance |
| radiological resistance / to UV radiation | resistant |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
| product component / rodent protection | No |
| wire length — for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum | 5000 m |
| wire length — for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum | 750 m |
| wire length — for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum | 2000 m |
| wire length — for glass FOC / with PROFIBUS / maximum | 3000 m |
standards, specifications, approvals
| certificate of suitability — UL approval | Yes; c(UL)us OFN FT4 |
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information / header
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
