Siemens 6XV1870-4HN15
IE TP cord
- MPN
- 6XV1870-4HN15
- Category
- IE TP cord
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1870-4HN15?

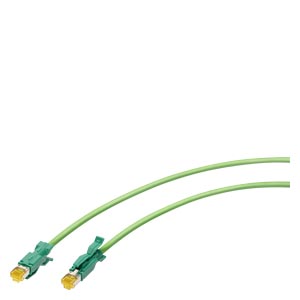

IE TP Cord PLUS RJ45/RJ45, CAT 6A, TP cable 4x2, pre-assembled with 2 RJ45 plugs for EasyClip interlock, length 15 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1870-4HN15 |
| suitability for use | easy connection of end devices to the IE FC cabling system with EasyClip interlock |
| cable designation | S/FTP, LI 02YSCH 4x2x0,15 PIMF GN FRNC |
| wire length | 15 m |
electrical data
| number of electrical connections | 2 |
| attenuation factor per length — at 10 MHz / maximum | 0.086 dB/m |
| attenuation factor per length — at 100 MHz / maximum | 0.28 dB/m |
| attenuation factor per length — at 300 MHz / maximum | 0.485 dB/m |
| attenuation factor per length — at 600 MHz / maximum | 0.675 dB/m |
| impedance — at 1 MHz ... 100 MHz | 100 Ω |
| impedance — at 10 MHz … 600 MHz | 100 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 1 MHz … 100 MHz | 5 % |
| coupling loss / at 30 MHz … 100 MHz / minimum | 85 dB |
| transfer impedance per length / at 10 MHz | 10 mΩ/m |
| loop resistance per length / maximum | 290 mΩ/m |
| operating voltage — RMS value | 80 V |
| NVP value in percent | 76 % |
mechanical data
| number of electrical cores | 8 |
| design of the shield | S/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| core diameter — of AWG26 insulated conductor | 0.5 mm |
| outer diameter — of inner conductor | 0.5 mm |
| outer diameter — of the wire insulation | 1 mm |
| outer diameter — of cable sheath | 6.2 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | FRNC |
| color — of the insulation of data wires | white/blue, white/orange, white/green, white/brown |
| color — of cable sheath | green |
| bending radius — with single bend / minimum permissible | 31 mm |
| bending radius — with multiple bends / minimum permissible | 62 mm |
| weight per length | 46 kg/km |
plug
| connector type | RJ45 |
| type of plug interlock | latched |
| design of plug-in connection | RJ45-180 |
ambient conditions
| ambient temperature — during operation | -25 ... +80 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during transport | -25 ... +80 °C |
| ambient temperature — during installation | -25 ... +80 °C |
| ambient temperature — note | In fixed installation -40 °C to 80 °C |
| fire behavior | flame resistant acc. to IEC 60332-1-2, EN 60332-3-24, smoke density acc. to IEC 61034 |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance — to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| chemical resistance — to grease | Conditional resistance |
| radiological resistance / to UV radiation | not resistant |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — halogen-free | Yes; halogen-free according to EN 60754-2 |
| product feature — PoE capability | Yes |
| product feature — PoE+ capability | Yes |
| product feature — PoE++ capability | Yes |
| product feature — silicon-free | Yes |
| test voltage — at AC / core-to-core | 500 V |
| test voltage — at AC / core shield | 1500 V |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | No |
| UL/ETL style / 600 V Rating | Yes; E502506 AWM STYLE 21279, Wiring Harness |
| certificate of suitability | ISO/IEC 11801-1, IEC 61035 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
| standard for structured cabling | Cat6A |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
