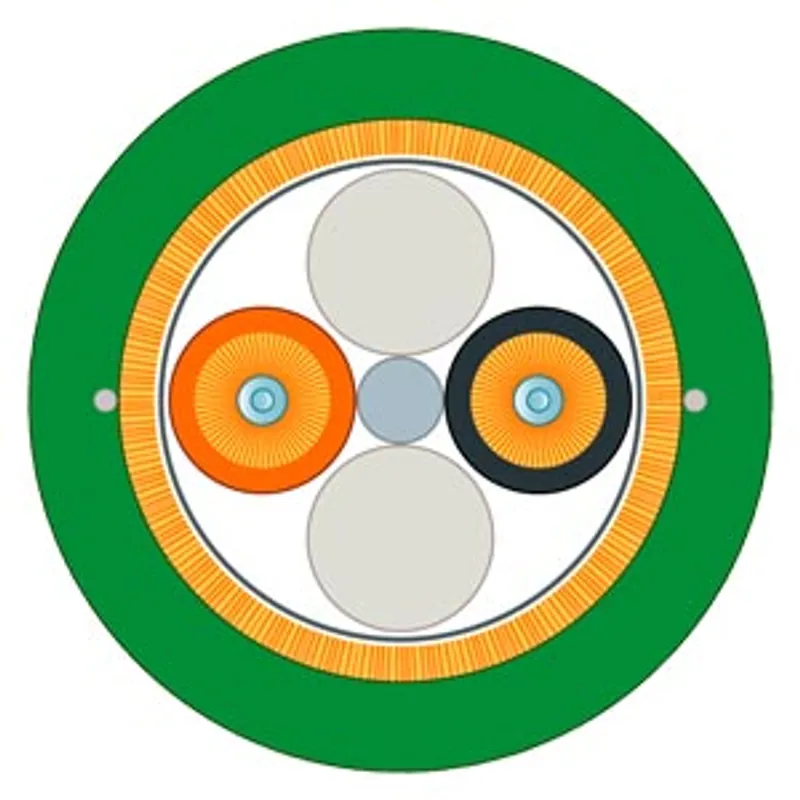

Siemens 6XV1861-3CT15
PCF Trailing Cable, pre-assembled with 2x2 BFOC plugs, insertion aid, length 150 m.
- MPN
- 6XV1861-3CT15
- Category
- Plastic and PCF FOCs
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1861-3CT15?
PCF Trailing Cable, pre-assembled with 2x2 BFOC plugs, insertion aid, length 150 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1861-3CT15 |
| suitability for use | Cable for applications with high mechanical loading, and motion (e.g. trailing cables), no UL approval |
| version of the assembled FO cable | Assembled with four BFOC connectors |
| cable designation | AT-V(ZN)Y(ZN)11Y 2K 200/230 |
| wire length | 150 m |
optical data
| attenuation factor per length — at 650 nm / maximum | 10 dB/km |
| attenuation factor per length — at 660 nm / maximum | 10 dB/km |
| bandwidth length product — at 650 nm | 17 GHz·m |
mechanical data
| number of fibers / per FOC core | 1 |
| number of FO cores / per FOC cable | 2 |
| version of the FO conductor fiber | Step index fiber 200/230 µm |
| outer diameter — of the optical fibers | 200 µm |
| outer diameter — of the optical fiber sheath | 230 µm |
| outer diameter — of the FOC core sheath | 2.2 mm |
| symmetrical deviation / of the outer diameter of the FOC core sheath | 0.1 mm |
| outer diameter / of the cable | 8.8 mm |
| symmetrical deviation / of the outer diameter of the line | 0.5 mm |
| material — of the fiber-optic cable core | Quartz glass |
| material — of the optical fiber sheath | Special polymer |
| material — of the FOC core sheath | PVC |
| material — of the fiber-optic cable sheath | PUR |
| material — of the strain relief | Aramid fibers |
| color — of the FOC core sheath | orange/black |
| color — of cable sheath | green |
| bending radius — with single bend / minimum permissible | 130 mm |
| bending radius — with multiple bends / minimum permissible | 175 mm |
| number of bending cycles | 5000000 |
| tensile load — during installation / short-term | 2000 N |
| tensile load — during operation / maximum | 800 N |
| short-term shear force per length | 500 N/cm |
| continuous shear force per length | 300 N/cm |
| weight per length | 85 kg/km |
ambient conditions
| ambient temperature — during operation | -25 ... +75 °C |
| ambient temperature — during storage | -30 ... +75 °C |
| ambient temperature — during transport | -30 ... +75 °C |
| ambient temperature — during installation | -5 ... +50 °C |
| fire behavior | flame-retardant |
| chemical resistance — to mineral oil | resistant |
| chemical resistance — to grease | resistant |
| radiological resistance / to UV radiation | resistant |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
| product component / rodent protection | No |
| wire length — for PCF FOC / for Industrial Ethernet / maximum | 100 m |
| wire length — for PCF FOC / with PROFIBUS / maximum | 400 m |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information / header
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
