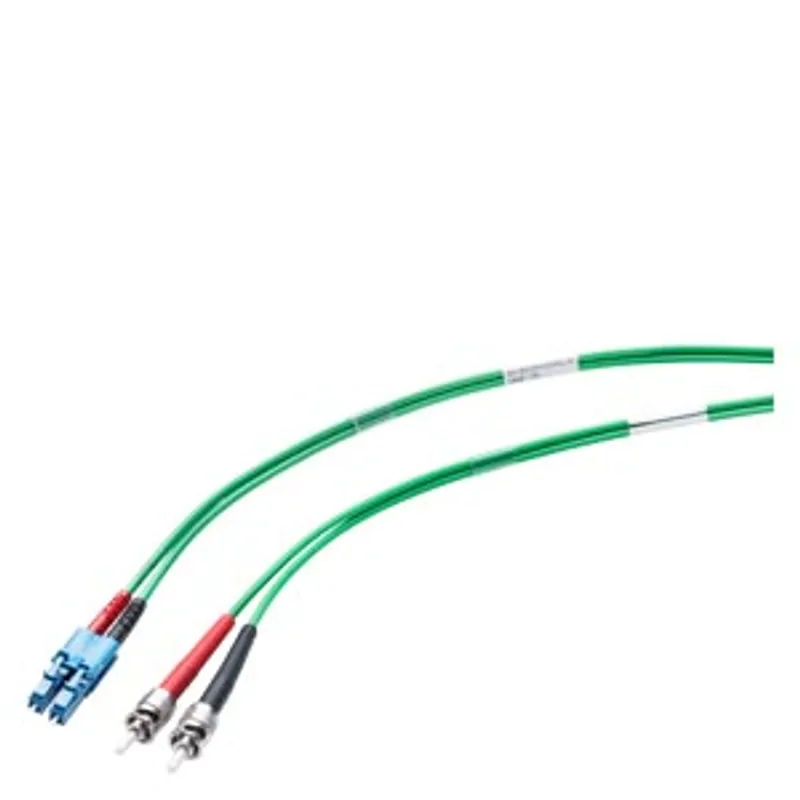

Siemens 6XV1843-5FH20-0AB0
SM FO cord BFOC/LC; 9/125; pre-assembled with 1x LC duplex plug and 2 x BFOC plugs; length 2.0 m.
- MPN
- 6XV1843-5FH20-0AB0
- Category
- IE FO cords
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1843-5FH20-0AB0?
SM FO cord BFOC/LC; 9/125; pre-assembled with 1x LC duplex plug and 2 x BFOC plugs; length 2.0 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1843-5FH20-0AB0 |
| suitability for use | Cable for applications in the control cabinet |
| version of the assembled FO cable | Pre-assembled with 1x LC DUPLEX connector and 2x BFOC connector |
| cable designation | l-V(ZN)H 2E9/125 G.652D |
| wire length | 2 m |
optical data
| attenuation factor per length — at 1300 nm / maximum | 0.4 dB/km |
| attenuation factor per length — at 1550 nm / maximum | 0.3 dB/km |
mechanical data
| number of fibers / per FOC core | 1 |
| number of FO cores / per FOC cable | 2 |
| version of the FO conductor fiber | Singlemode glass fiber 9/125 µm |
| design of the FOC core | Fixed core |
| outer diameter — of the optical fibers | 9 µm |
| outer diameter — of the optical fiber sheath | 125 µm |
| outer diameter — of the FOC core sheath | 2.8 mm |
| width / of cable sheath | 5.9 mm |
| thickness / of cable sheath | 2.8 mm |
| material — of the fiber-optic cable core | Quartz glass |
| material — of the optical fiber sheath | Quartz glass |
| material — of the FOC core sheath | FR-LSZH |
| material — of the fiber-optic cable sheath | LSZH |
| material — of the strain relief | Aramid fibers |
| color — of the FOC core sheath | green/green |
| bending radius — with single bend / minimum permissible | 42 mm |
| tensile load — during installation / short-term | 500 N |
| tensile load — during operation / maximum | 500 N |
| continuous shear force per length | 100 N/cm |
ambient conditions
| ambient temperature — during operation | -30 ... +70 °C |
| ambient temperature — during storage | -30 ... +70 °C |
| ambient temperature — during transport | -30 ... +70 °C |
| ambient temperature — during installation | -5 ... +50 °C |
| fire behavior | flame-resistant acc. to IEC 60332-3-22 (Cat. A) |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — halogen-free | Yes |
| product feature — silicon-free | Yes |
| product component / rodent protection | No |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information / header
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6XV1843-5FH20-0AB0: frequently asked questions
When can 6XV1843-5FH20-0AB0 be shipped?
6XV1843-5FH20-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6XV1843-5FH20-0AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6XV1843-5FH20-0AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6XV1843-5FH20-0AB0, subject to availability and destination.
