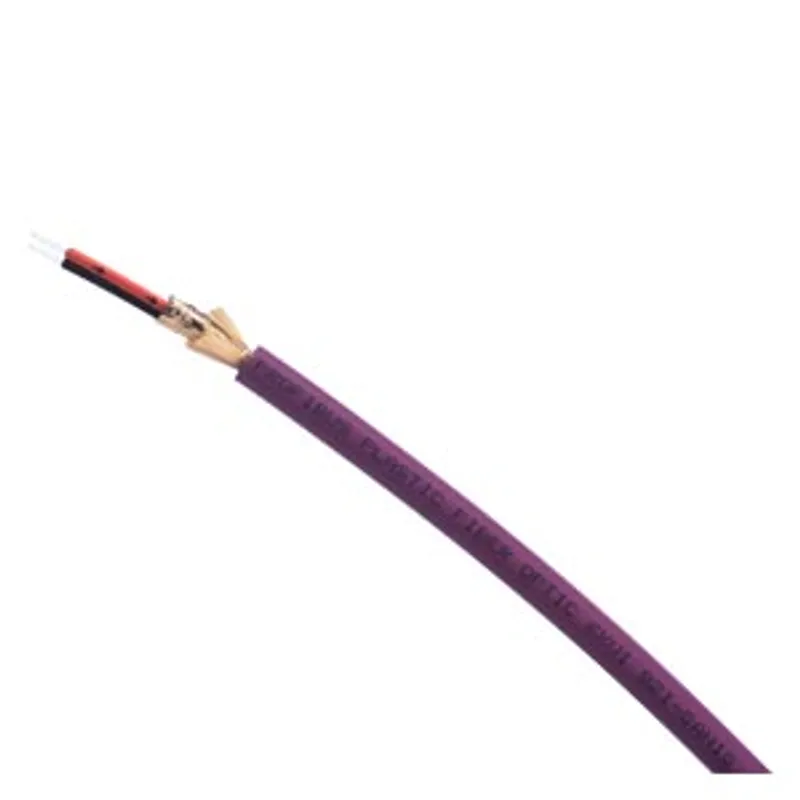

Siemens 6XV1821-0BN25
PROFIBUS Plastic Fiber Optic, Standard cable with 4 BFOC connectors, length 25 m.
- MPN
- 6XV1821-0BN25
- Category
- Plastic and PCF FOCs
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1821-0BN25?
PROFIBUS Plastic Fiber Optic, Standard cable with 4 BFOC connectors, length 25 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1821-0BN25 |
| suitability for use | Cable for indoor applications |
| version of the assembled FO cable | Assembled with four BFOC connectors |
| cable designation | I-V4Y(ZN)Y 2P 980/1000 |
| wire length | 25 m |
optical data
| attenuation factor per length — at 650 nm / maximum | 160 dB/km |
| attenuation factor per length — at 660 nm / maximum | 230 dB/km |
| bandwidth length product — at 650 nm | 1 GHz·m |
mechanical data
| number of fibers / per FOC core | 1 |
| number of FO cores / per FOC cable | 2 |
| version of the FO conductor fiber | Step index fiber 980/1000 µm |
| outer diameter — of the optical fibers | 980 µm |
| outer diameter — of the optical fiber sheath | 1000 µm |
| outer diameter — of the FOC core sheath | 2.2 mm |
| symmetrical deviation / of the outer diameter of the FOC core sheath | 0.1 mm |
| outer diameter / of the cable | 7.8 mm |
| symmetrical deviation / of the outer diameter of the line | 0.3 mm |
| material — of the fiber-optic cable core | Polymethylmethacrylate (PMMA) |
| material — of the optical fiber sheath | Fluoridated special polymer |
| material — of the FOC core sheath | PA |
| material — of the fiber-optic cable sheath | PVC |
| material — of the strain relief | Kevlar fibers |
| color — of the FOC core sheath | orange/black |
| color — of cable sheath | Violet |
| bending radius — with single bend / minimum permissible | 100 mm |
| bending radius — with multiple bends / minimum permissible | 150 mm |
| tensile load — during installation / short-term | 100 N |
| tensile load — during operation / maximum | 100 N |
| short-term shear force per length | 100 N/cm |
| weight per length | 65 kg/km |
ambient conditions
| ambient temperature — during operation | -30 ... +70 °C |
| ambient temperature — during storage | -30 ... +70 °C |
| ambient temperature — during transport | -30 ... +70 °C |
| ambient temperature — during installation | 50 °C |
| fire behavior | flame-resistant acc. to IEC 60332-1-2 |
| chemical resistance — to mineral oil | conditional resistance |
| chemical resistance — to grease | conditional resistance |
| radiological resistance / to UV radiation | not resistant |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
| product component / rodent protection | No |
| wire length — for POF FOC / with PROFIBUS / maximum | 80 m |
standards, specifications, approvals
| certificate of suitability — UL approval | Yes; (UL) OFN |
| certificate of suitability — RoHS conformity | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information / header
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
