Siemens 6MD2322-1AA00-1AA0
DIRECTIONAL SHORT CIRCUIT AND EARTH FAULT DETECTOR VOLTAGE MEASUREMENT VIA CAPACITIVE VOLTAGE DIVIDER EARTH…
- MPN
- 6MD2322-1AA00-1AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6MD2322-1AA00-1AA0?

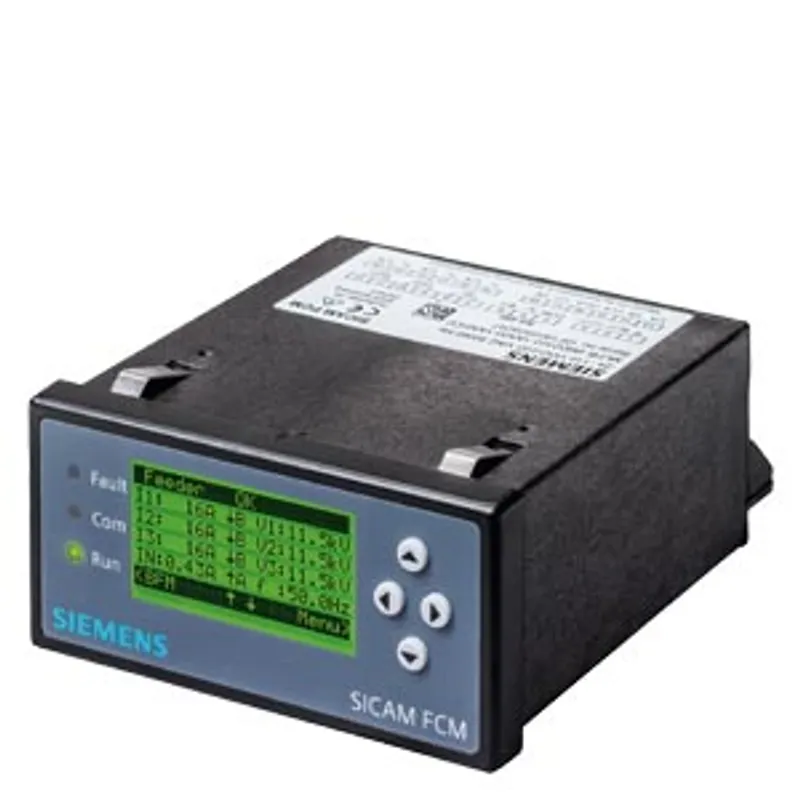

DIRECTIONAL SHORT CIRCUIT AND EARTH FAULT DETECTOR VOLTAGE MEASUREMENT VIA CAPACITIVE VOLTAGE DIVIDER EARTH FAULT DETECTOR FOR LOW-POWER CURRENT SENSORS 1 BINARY INPUT 2 BINARY OUTPUTS MEASUREMENT/CALCULATION OF VALUES U,I,P,Q,S,F,COS PHI ENERGY COUNTER COMMUNICATION MODBUS RTU POWER SUPPLY DC24-110V / AC230V
Specifications
Product details
| product function / connection to capacitive LRM voltage detecting systems | No |
Measuring functions
| number of events | 20 |
| product function / phase angle measurement | Yes |
| product function / active power measurement | Yes |
| product function / reactive power measurement | Yes |
| product function / apparent power measurement | Yes |
| product function / power factor measurement | Yes |
| product function / measurement of ground current | Yes |
| product function / calculation of ground current | Yes |
| accuracy class / according to IEC 61557-12 | 0.5 |
Product Functions
| automatic calibration | No |
| adjustable rated value of primary current | 50 ... 1 000 A |
| adjustable rated value of primary voltage | 1 000 V ... 36 kV |
| correction factors for current values according to IEC 61869-10 | Yes |
| reversal of load flow direction per phase | Yes |
| inversion of active power, reactive power | Yes |
| phase-rotation supervision | Yes |
| min/max pointer | Yes |
| direct low voltage measurement | No |
| remote parameterization | Yes |
| remote firmware update | Yes |
| password protection | Yes |
| undervoltage detection | Yes |
| overvoltage detection | Yes |
| overcurrent detection | Yes |
| self-test | Yes |
| number of display languages / note | German, English, Spanish, Portuguese, French |
Short-Circuit Indicator Functions
| product function / phase-selective fault acquisition | Yes |
| product function / ground fault detection with cos phi/sin phi | Yes |
| product function / ground fault detection with pulse detection | Yes |
| product function / ground fault detection with earth leakage wiper | Yes |
| product function / parameter group switchover for ground fault detection | Yes |
| type of distribution system / with regard to neutral point | grounded, insulated, compensated |
| number of overcurrent-time levels | 2 |
| product function / automatic reset of the fault display | Yes |
| product function / reset of the fault display via digital input | Yes |
| product function / reset of the fault display via user interface | Yes |
| product function / reset of the fault display via Modbus | Yes |
| product function / AMZ overcurrent protection with inverse time over tripping characteristic (NI) | Yes |
| product function / fault display via LED | Yes |
| product function / fault display via display | Yes |
| product function / fault display via Modbus | Yes |
| product function / monitoring for repeated short-circuits | Yes |
| product function / intermittent ground fault detection | Yes |
| product function / inrush current detection | Yes |
Energy Management functions
| product function / active energy measurement | Yes |
| product function / reactive energy measurement | Yes |
Measuring inputs
| number of inputs / for voltage measurement | 3 |
| number of inputs / for current measurement | 3 |
Supply voltage
| supply voltage / at AC | 230 V |
| supply voltage / at DC / rated value | 24 ... 250 V |
| type of voltage / of the supply voltage | AC/DC |
| line frequency | 50 ... 60 Hz |
Inputs / Outputs
| number of digital inputs | 1 |
| number of digital inputs / note | reset of fault display |
| number of digital outputs | 2 |
Communication
| protocol / is supported / Modbus RTU | Yes |
Time synchronization
| type of time synchronization | Modbus |
Mechanical Design
| width | 96 mm |
| height | 48 mm |
| depth | 109.5 mm |
| weight | 300 g |
| fastening method / panel mounting | Yes |
| type of electrical connection | spring-loaded terminal / screw terminal |
Degree of protection / protection class
| protection class IP / on the front | IP40 |
| protection class IP / rear side | IP20 |
Environmental conditions
| ambient temperature / during operation | -40 ... +70 °C |
| ambient temperature / during storage | -25 ... +55 °C |
| mounting height in relation to mean sea level / maximum | 2 000 m |
Approval certification
| certificate of suitability / CE marking | Yes |
