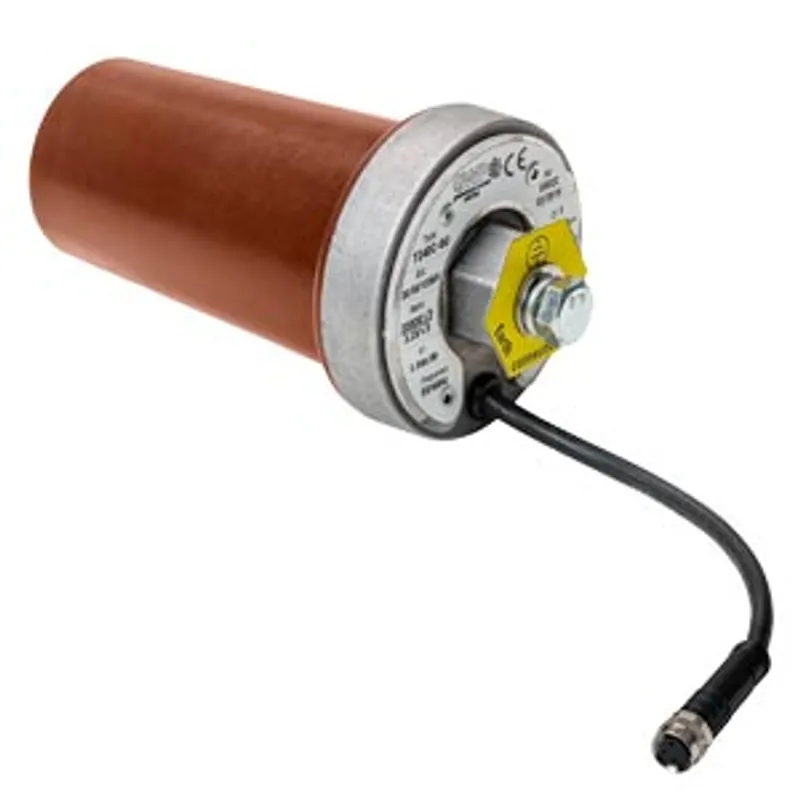

Siemens 6MD2320-0AA07-1AA0
LOW-POWER VOLTAGE SENSOR ACCORDING TO IEC 61869-11 RATIO: 3
- MPN
- 6MD2320-0AA07-1AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6MD2320-0AA07-1AA0?
LOW-POWER VOLTAGE SENSOR ACCORDING TO IEC 61869-11 RATIO: 3,25V/-/3' @ 20KV/-/3' FOR T-CONNECTOR WITH C-CONE ACCURACY CLASS: 0.5 (FCM V 3.30 ONWARDS), ELSE 1 INSULATION LEVEL: 24/50/125KV VOLTAGE FACTOR: 1,2*UN AND 1,9*UN FOR 8H WITH CONNECTION CABLE 2.0 M OPEN END
Specifications
General technical data
| primary voltage / rated value | 20 000 V |
| secondary voltage / rated value | 3.25 V |
Product Functions
| is supported / IEC 61869-1 | Yes |
| is supported / IEC 60044-7 | No |
| comparison of primary values required | No |
Supply voltage
| withstand voltage / at DC / limited to 15 min | 72 kV |
| medium voltage / minimum rated value | 10 kV |
| line frequency | 50 ... 60 Hz |
Mechanical Design
| weight | 700 g |
| dimensions / according to EN 50181, type C | Yes |
| length / of connection cable | 2 m |
| projection / of T-plug incl. screw | 45 mm |
Environmental conditions
| ambient temperature / during operation | -40 ... +80 °C |
| ambient temperature / during storage | -40 ... +80 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6MD2320-0AA07-1AA0: frequently asked questions
When can 6MD2320-0AA07-1AA0 be shipped?
6MD2320-0AA07-1AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6MD2320-0AA07-1AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6MD2320-0AA07-1AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6MD2320-0AA07-1AA0, subject to availability and destination.
