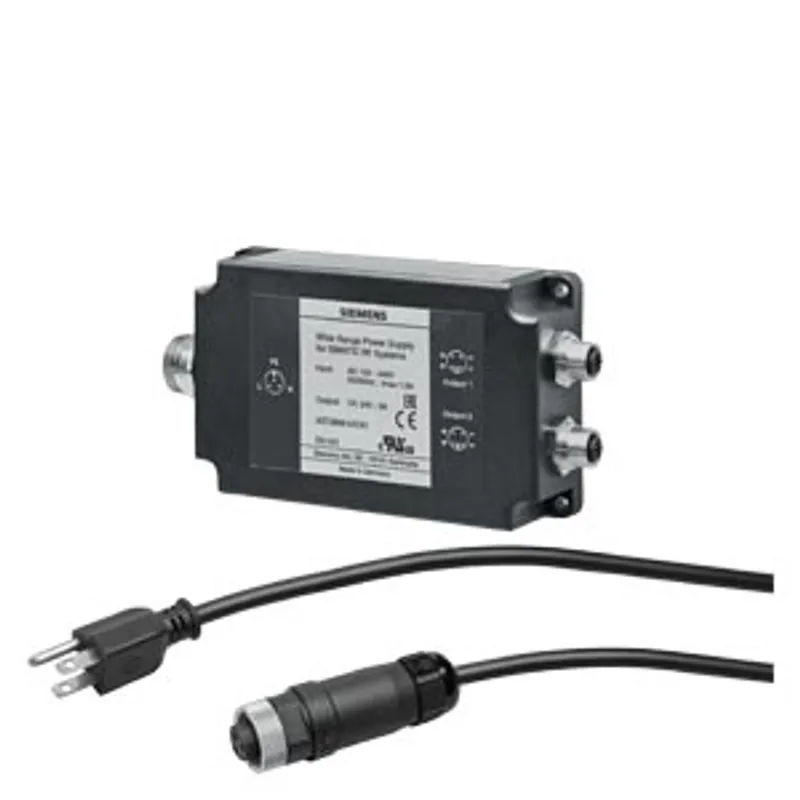

Siemens 6GT2898-0AC20

SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100-240 V Out: 24 V DC 3 A CE, UL

MPN: 6GT2898-0AC20

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2898-0AC20?

SIMATIC RF600 wide-range voltage supply for SIMATIC RF systems In: AC: 100-240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP67 with power supply cable / connector US consisting of: 1x 6GT28980AC81 1x 6GT28980AC21.

Specifications

General

product brand name	SIMATIC RF
type of current supply	Input: 100 to 230 V AC, output: 24 V DC / 3 A
Technical Product Detail Page	https://i.siemens.com/1P6GT2898-0AC20
suitability for use	Two readers can be connected directly. Robust and cast industrial power supply unit with high degree of protection for use directly at the process.

electrical data / input

voltage curve / at input	AC single phase
supply voltage / 1 / rated value	230 V
supply voltage / 1 / rated value — supply voltage / 1 / rated value	100 ... 240 V
supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage	AC
line frequency — 50 Hz	Yes
line frequency — 60 Hz	Yes

electrical data / output

voltage curve / at output	DC 24 V fixed voltage
output voltage — 1 / at DC / rated value	24 V
output current — rated value	3 A
output current — rated range	0 ... 3.9 A
efficiency in percent	90 %

electrical data / closed-loop control

relative overall tolerance / of the voltage

2 %

electrical data / protection and monitoring

design of the overvoltage protection / at output	Uout nom +20 % typ.
property of the output / short-circuit proof	Yes
design of short-circuit protection	Permanent
enduring short circuit current / RMS value / maximum	3.9 A

electrical data / safety

galvanic isolation / between input and output	Yes
galvanic isolation	SELV / PELV according to EN 60950
operating resource protection class	Class II (protective insulation)

interfaces

number of electrical connections — for power supply	2
type of electrical connection — at input	US plug with 2 m connecting cable
type of electrical connection — at output	2 x M12 4 pin, A-coded, female

signal inputs/outputs

product component / signaling contact

design, dimensions and weights

width	85 mm
height	35 mm
depth	175 mm
net weight	0.96 kg
fastening method	4 screws M5

ambient conditions

ambient temperature — during operation	-25 ... +75 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — note	free convection
protection class IP	IP67

standards, specifications, approvals

standard — for safety / from CSA and UL	EN 60950 / UL 60950 / CAN/CSA 22.2 950, 3 Edition
standard — for emitted interference	EN 61000-6-3, EN 55011 (Class B)

accessories

accessories / included

Power supply un...T2898-0AC003

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2898-0AC20PDF

6GT2898-0AC20: frequently asked questions

When can 6GT2898-0AC20 be shipped?

6GT2898-0AC20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GT2898-0AC20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GT2898-0AC20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2898-0AC20, subject to availability and destination.
