Home / Siemens / Siemens 6GT2891-4LN10

Siemens 6GT2891-4LN10

SIMATIC RF IO-Link connecting cable, pre-assembled, between IO-Link master and reader

MPN: 6GT2891-4LN10

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2891-4LN10?

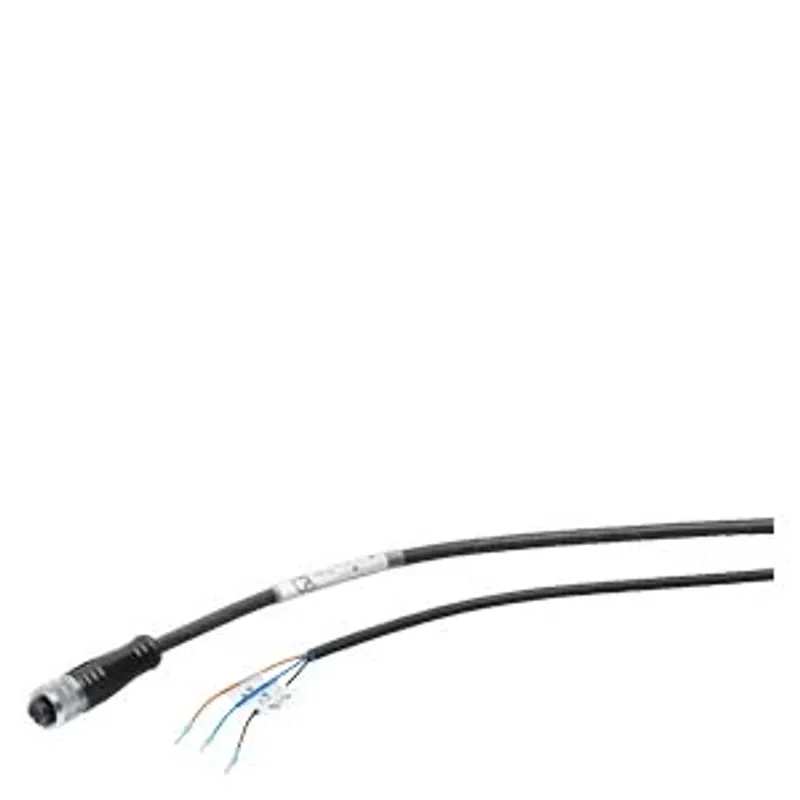

SIMATIC RF IO-Link connecting cable, pre-assembled, between IO-Link master and reader, M12 4-pole and open end, PUR, length 10 m.

Specifications

General

product brand name	SIMATIC RF
Technical Product Detail Page	https://i.siemens.com/1P6GT2891-4LN10
suitability for use	Plug-in cable for connecting an IO-Link device to an IO-Link master
cable designation	LiY-11Y 4xAWG 22/19
wire length	10 m

electrical data

number of electrical connections	2
type of electrical connection	wire end sleeves (labeled) / M12 (female, 4 pin, straight)
loop resistance per length / maximum	108 mΩ/m
insulation resistance coefficient	20 GΩ·m
operating voltage — maximum	30 V

mechanical data

number of electrical cores	4
design of the shield	unshielded
outer diameter — of cable sheath	4.3 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.15 mm
material — of the wire insulation	PVC
material — of cable sheath	TPE-U Ether Isolation
color — of the insulation of data wires	brown, white, blue, black
color — of cable sheath	Black
bending radius — with single bend / minimum permissible	34.4 mm
bending radius — with multiple bends / minimum permissible	64.5 mm

ambient conditions

ambient temperature — during operation	-5 ... +80 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
ambient temperature — during installation	-5 ... +80 °C
fire behavior	flame resistant according to AWM STYLE 21317 80°C 30V VW-1 for USA and AWM I/II A/B 80°C 30V FT-1 for Canada

product features, product functions, product components / general

product feature — halogen-free

standards, specifications, approvals

UL/ETL listing / 300 V Rating

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2891-4LN10PDF

6GT2891-4LN10: frequently asked questions

When can 6GT2891-4LN10 be shipped?

6GT2891-4LN10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GT2891-4LN10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GT2891-4LN10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2891-4LN10, subject to availability and destination.
