Siemens 6GT2881-1AB04-0AB0

SIMATIC IDENT CB 4H Gate ETSI for Tire

MPN: 6GT2881-1AB04-0AB0
Category: Systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2881-1AB04-0AB0?

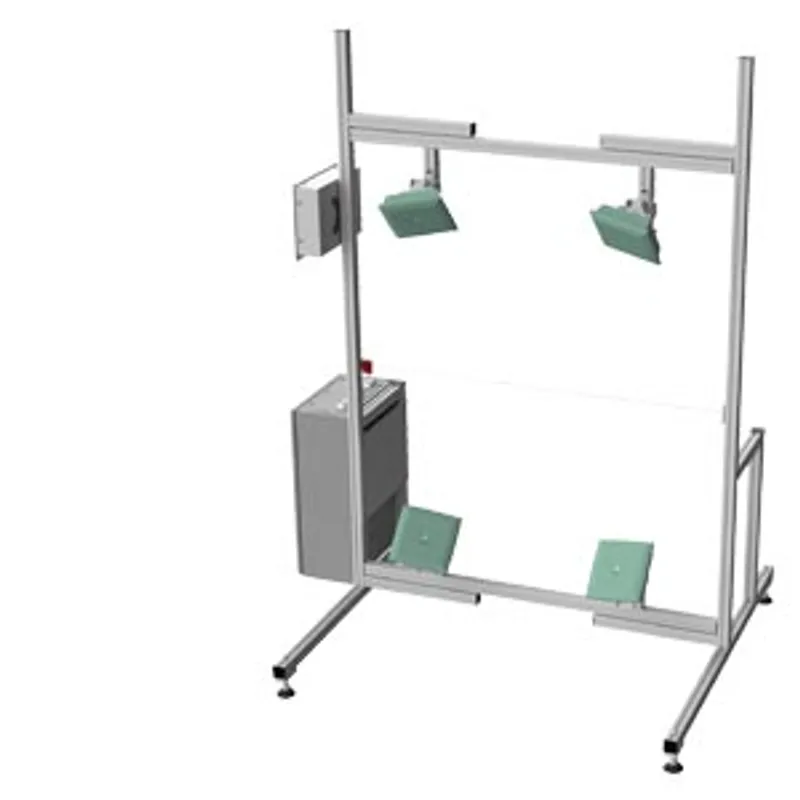

SIMATIC IDENT CB 4H Gate ETSI for Tire. RFID UHF system with four antennas for the detection of tires with integrated RFID transponder on a conveyor belt; The system includes special acquisition software for tire detection including side detection, and the necessary RFID and automation components including HMI panel, control cabinet and metal structure

Specifications

product type designation

product brand name	SIMATIC
Technical Product Detail Page	https://i.siemens.com/1P6GT2881-1AB04-0AB0

radio frequencies of the RFID reader

operating frequency	865 ... 868 MHz
transmit power	3 ... 2 000 mW

product functions management, configuration, engineering

software version — with STEP 7 in the TIA Portal required	SIMATIC STEP 7 Professional (TIA Portal) V18
software version — for WinCC in the TIA Portal required	SIMATIC WinCC (TIA Portal) V16
protocol is supported — S7 communication	Yes
protocol is supported — TCP/IP	Yes

product features

design of the display touchscreen

Yes; comfort panel (analog-resistive)

mechanical data

material — of the frame	aluminum
material — of the panel support	aluminum
material — of the antenna support	stainless steel
material — of the antenna	Pocan
material — of the control cabinet	sheet steel

supply voltage, current consumption, power loss

supply voltage — at AC	120 ... 230 V
supply voltage — at DC	110 ... 240 V
input voltage — at AC	85 ... 264 V
input voltage — at DC	85 ... 275 V
design of input wide range input	Yes
overvoltage overload capability	300 V AC for 30 s
operating condition of the mains buffering	at Ue = 230 V
buffering time for rated value of the output current in the event of power failure minimum	45 s
measurable line frequency	47 ... 63 Hz
input current — at rated input voltage 120 V rated value	2.2 A
input current — at rated input voltage 230 V rated value	1.2 A
current limitation of inrush current at 25 °C maximum	6 A

ambient conditions

ambient temperature — during operation	0 ... 50 °C
ambient temperature — during storage	-20 ... +60 °C
ambient temperature — during transport	-20 ... +60 °C

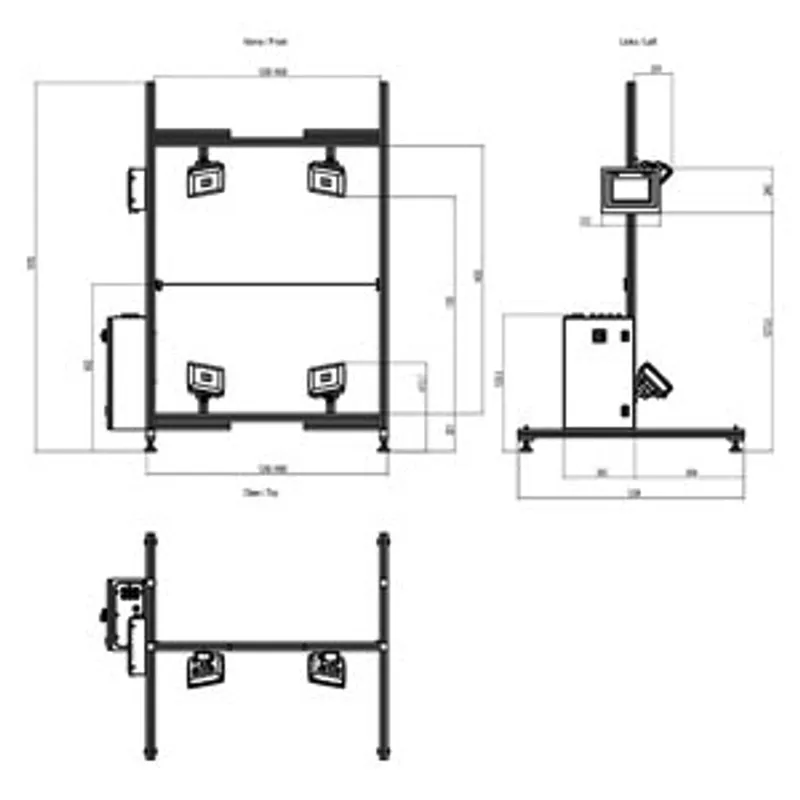

design, dimensions and weights

width	1.55 m
height	2 m
depth	1.2 m
net weight	53 kg
fastening method	ITEM profile
wire length of connection cable	1 m

standards, specifications, approvals

certificate of suitability CE marking

Yes

further information internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: RFID country approval	https://www.siemens.com/rfid-approvals
internet link — to web page: identification and localization systems	https://www.siemens.com/ident
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2881-1AB04-0AB0PDF

6GT2881-1AB04-0AB0: frequently asked questions
