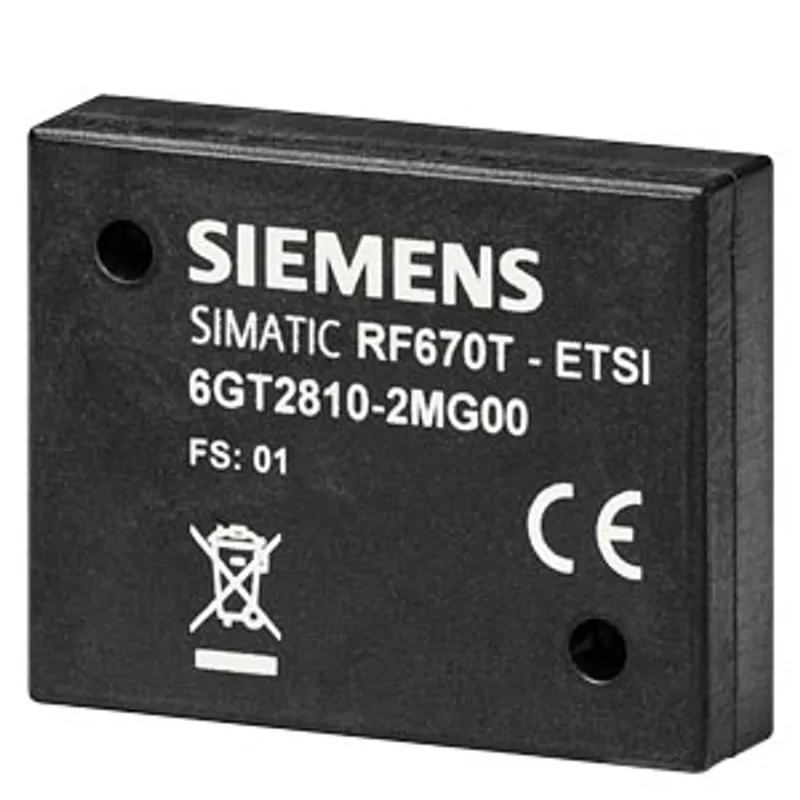

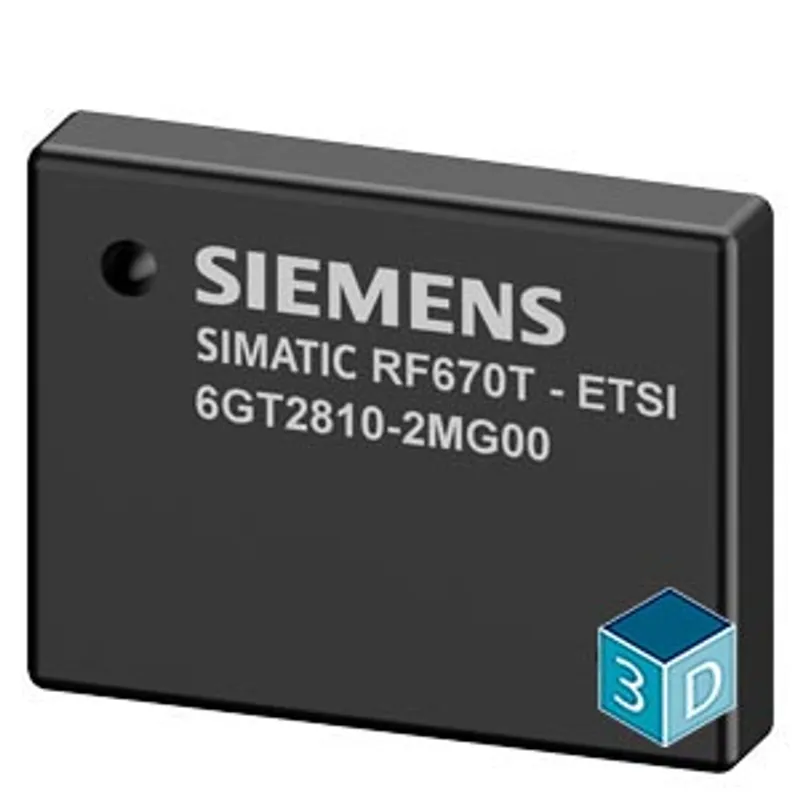

Siemens 6GT2810-2MG00
SIMATIC RF670T (ETSI) PPS, 43 x 33 x 5.5 mm ISO 18000-63
- MPN
- 6GT2810-2MG00
- Category
- RF67xT
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2810-2MG00?
SIMATIC RF670T (ETSI) PPS, 43 x 33 x 5.5 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE 9XM 496 bits (62 bytes) EPC ID 752 bits (94 bytes) user memory fixing by mounting on metal printing not possible temperature from -40 °C to +140 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2810-2MG00 |
radio frequencies
| operating frequency | 865 ... 868 MHz |
| range / maximum | 5 m; observe system manual RF600: overrange is possible, range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| protocol / with radio transmission | EPCglobal Class 1 Gen 2 / ISO 18000-63 |
| transfer rate / with radio transmission / maximum | 320 kbit/s |
| product feature / multitag-capable | Yes |
| polarization | Linear |
electrical data
| product component / backup battery | No |
memory
| type of memory | EEPROM |
| storage capacity / of the user memory | 94 byte |
| type of memory organization | EPC ID variable 128, 256 or 496 bits (16, 32 or 62 bytes), user memory variable 752, 624 or 384 bits (94, 78 or 48 bytes), TID memory 96 bits (12 bytes) |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | lock, unlock, write protection, password protection |
| type of transponder chip used | NXP Ucode 9xm |
mechanical data
| material | PPS |
| color | black |
| tightening torque / of the screw for securing the equipment / maximum | 0.8 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
ambient conditions
| ambient temperature — during read/write access | -25 ... +85 °C |
| ambient temperature — outside the read/write area | -40 ... +140 °C |
| ambient temperature — during storage | -20 ... +85 °C |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s² |
| vibrational acceleration | 200 m/s² |
| resistance to mechanical stress | Torsion and bending stress not permissible |

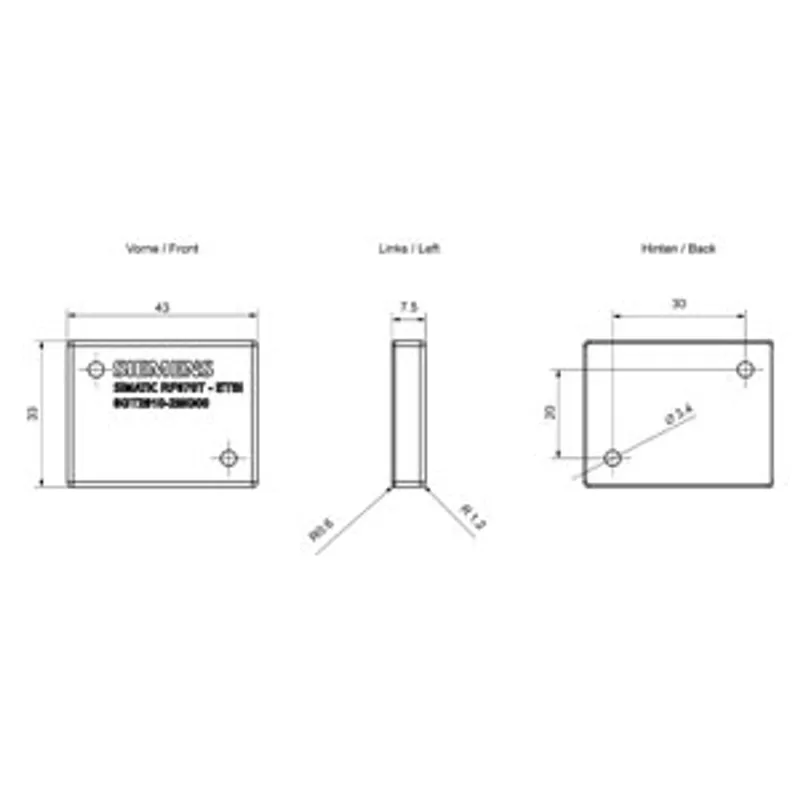

design, dimensions and weights
| width | 43 mm |
| height | 7.5 mm |
| depth | 33 mm |
| net weight | 20 g |
| fastening method | 2 x M3 screws |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
| product feature — printable | No |
standards, specifications, approvals
| certificate of suitability — IECEx | No |
further information / internet links
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial security functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems,machines and networks. Such systems, machines and components should only be connected to the enterprise network or the Internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial security measures that may be implemented, please visit: https://www.siemens.com/industrialsecurity. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens expressly recommends that product updates be applied as soon as they become available and that only the latest product versions be used. Using versions that are obsolete or no longer supported may increase the risk of cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Security RSS Feed under: https://www.siemens.com/cert. (V4.6) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2810-2MG00: frequently asked questions
When can 6GT2810-2MG00 be shipped?
6GT2810-2MG00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2810-2MG00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2810-2MG00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2810-2MG00, subject to availability and destination.
