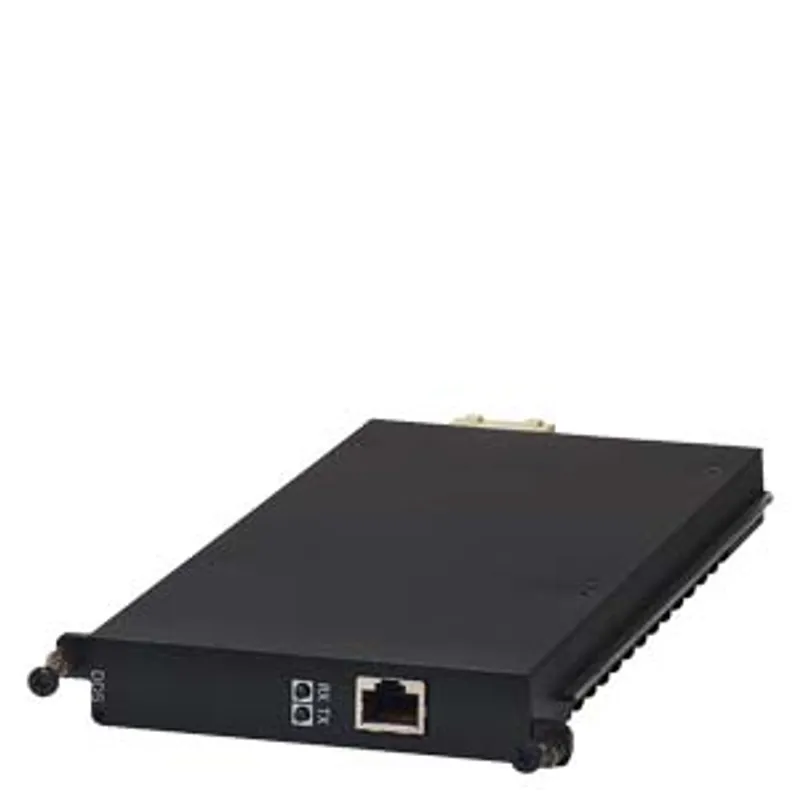

Siemens 6GK6015-0AL20-0LB0
RUGGEDCOM RX1500PN LM D02 Line Module 56K Master/Slave, 64K Slave DDS non-RoHS
- MPN
- 6GK6015-0AL20-0LB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK6015-0AL20-0LB0?
RUGGEDCOM RX1500PN LM D02 Line Module 56K Master/Slave, 64K Slave DDS non-RoHS
Specifications
General
| product brand name | RUGGEDCOM |
| Technical Product Detail Page | https://i.siemens.com/1P6GK6015-0AL20-0LB0 |
| suitability for operation | RX1500, RX1501, RX1510, RX1511, RX1512 |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
| number of electrical connections — for network components or terminal equipment / maximum | 1 |
ambient conditions
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — note | A maximum operating temperature of +85 °C is permissible for a duration of 16 hours |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP40 |
design, dimensions and weights
| design | Media module |
| width | 20 mm |
| height | 115 mm |
| depth | 180 mm |
| net weight | 0.35 kg |
| product feature / conformal coating | No |
| fastening method | screwed |
| fastening method — installation in media module slot | Yes |
standards, specifications, approvals
| standard — for EMC | FCC Part 15 (Class A), EN55022 (CISPR22 Class A) |
| standard — for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-7 |
| standard — for hazardous zone / from CSA and UL | Hazardous Locations: Class 1 Division 2 |
| standard — for emitted interference | EN 61000-6-4 (Class A) |
| standard — for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2, EN 61000-6-10 |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | No |
| certificate of suitability — KC approval | No |
| certificate of suitability — E1 approval | No |
| certificate of suitability — railway application in accordance with EN 50155 | Yes |
| certificate of suitability — railway application in accordance with EN 50124-1 | Yes |
| certificate of suitability — IEC 61850-3 | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 259.55 kg |
| global warming potential [CO2 eq] — during manufacturing | 13.3 kg |
| global warming potential [CO2 eq] — during operation | 246.21 kg |
| global warming potential [CO2 eq] — after end of life | 0.04 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to website: Industry Mall/RUGGEDCOM selector | https://www.siemens.com/ruggedcom-selector |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to website: Siemens RUGGEDCOM | https://www.siemens.com/ruggedcom |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK6015-0AL20-0LB0: frequently asked questions
When can 6GK6015-0AL20-0LB0 be shipped?
6GK6015-0AL20-0LB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK6015-0AL20-0LB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK6015-0AL20-0LB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK6015-0AL20-0LB0, subject to availability and destination.
