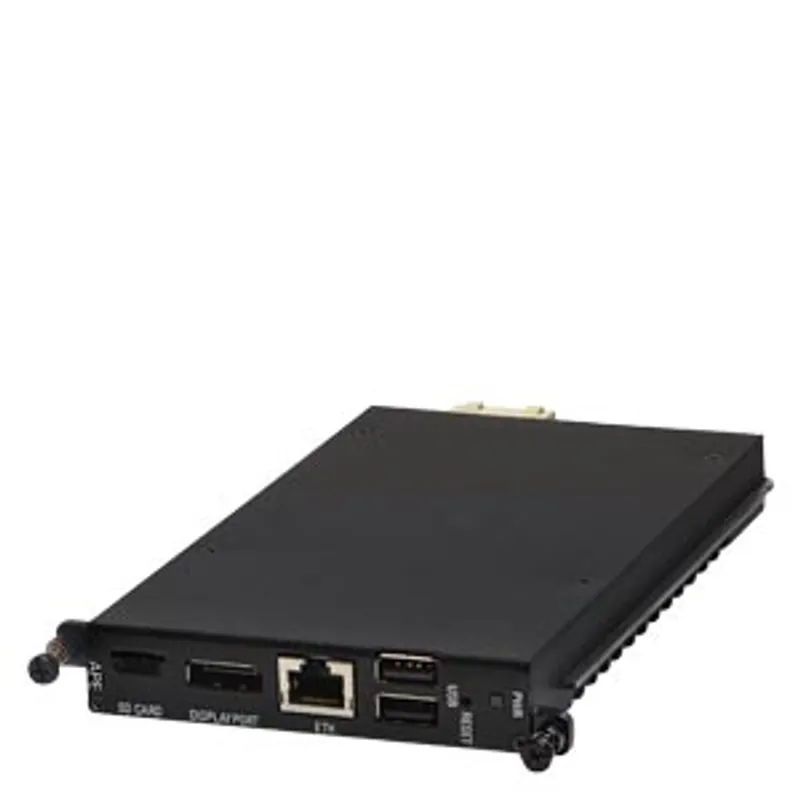

Siemens 6GK6015-0AL20-0GH0

RUGGEDCOM APE1808LNX Application Processing Engine Line Module, Atom x5-E3940, 8GB RAM, 80GB eMMC

MPN: 6GK6015-0AL20-0GH0
Category: RUGGEDCOM Application Processing Engine

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK6015-0AL20-0GH0?

RUGGEDCOM APE1808LNX Application Processing Engine Line Module, Atom x5-E3940, 8GB RAM, 80GB eMMC, DisplayPort, uSD, USB, Linux

Specifications

General

product brand name	RUGGEDCOM
Technical Product Detail Page	https://i.siemens.com/1P6GK6015-0AL20-0GH0

hardware configuration

design of the processor	Atom x5-E3940
processor clock frequency	1.6 GHz
design of the drive/storage medium / solid-state disk	Yes; eMMC
storage capacity / on solid-state disk	80 Gibyte
storage capacity / of the RAM	8 Gibyte
operating system / pre-installed	Linux

transfer rate

10, 100, 1000 Mbit/s

interfaces / other

number of interfaces / according to USB	2
number of USB-A ports	2

ambient conditions

ambient temperature — during operation	-40 ... +75 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum	95 %
protection class IP	IP30

design, dimensions and weights

design	Media module
width	102.9 mm
height	19.7 mm
depth	162.5 mm
product feature / conformal coating	No

standards, specifications, approvals

standard — for safety / from CSA and UL	IEC / EN / UL / CSA (62368-1, 60950-1)
standard — for emitted interference	CISPR 32 / EN 55032 / FCC Chapter 15 Class A
standard — for interference immunity	IEC 61000-6-2

standards, specifications, approvals / CE

certificate of suitability / CE marking

Yes

standards, specifications, approvals / other

certificate of suitability / Regulatory Compliance Mark (RCM)	Yes
certificate of suitability / EAC approval	Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	259.55 kg
global warming potential [CO2 eq] — during manufacturing	13.3 kg
global warming potential [CO2 eq] — during operation	246.21 kg
global warming potential [CO2 eq] — after end of life	0.04 kg

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to website: Industry Mall/RUGGEDCOM selector	https://www.siemens.com/ruggedcom-selector
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to website: Siemens RUGGEDCOM	https://www.siemens.com/ruggedcom
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
