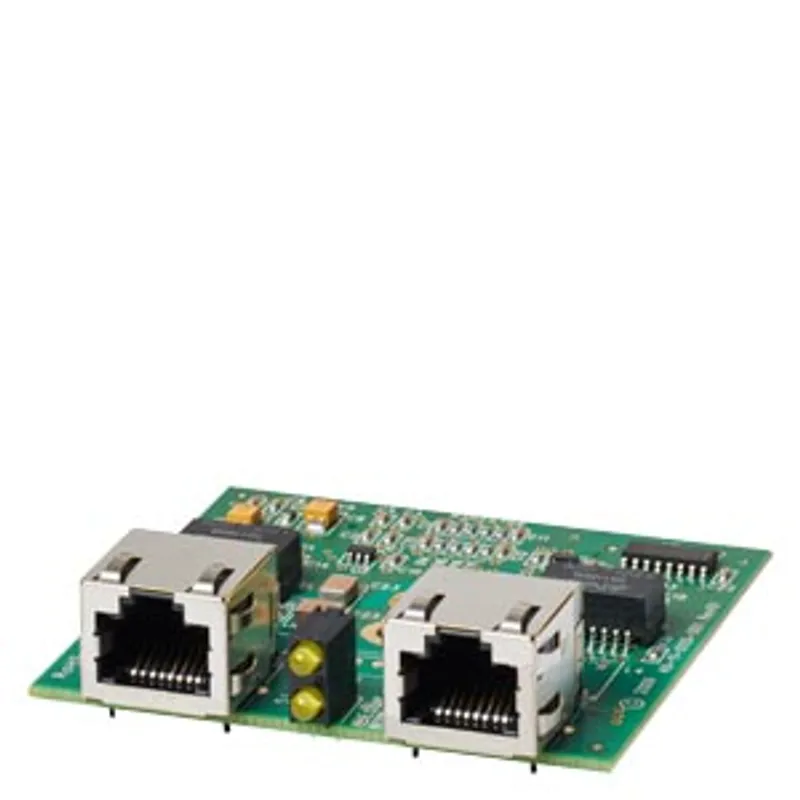

Siemens 6GK6000-8TX01-2AA0

RUGGEDCOM MEDIA MODULE FOR RSG2100, RSG2300, RS416 2x 10/100Tx RJ45 ports Equivalent to TX01

MPN: 6GK6000-8TX01-2AA0
Category: RUGGEDCOM Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK6000-8TX01-2AA0?

RUGGEDCOM MEDIA MODULE FOR RSG2100, RSG2300, RS416 2x 10/100Tx RJ45 ports Equivalent to TX01

Specifications

General

product brand name	RUGGEDCOM
Technical Product Detail Page	https://i.siemens.com/1P6GK6000-8TX01-2AA0
suitability for operation	RSG2100, RS416

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum	2
number of electrical connections — for network components or terminal equipment / maximum	2
number of 10/100 Mbit/s RJ45 ports	2
type of electrical connection — for network components or terminal equipment	RJ45

ambient conditions

ambient temperature — during operation	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — note	A maximum operating temperature of +85 °C is permissible for a duration of 16 hours
relative humidity / at 25 °C / without condensation / during operation / maximum	95 %
protection class IP	IP40 (when installed)

design, dimensions and weights

design	Media module
width	110 mm
height	22 mm
depth	91 mm
net weight	0.43 kg
product feature / conformal coating	No
fastening method	screwed
fastening method — installation in media module slot	Yes

standards, specifications, approvals

standard — for EMC	FCC Part 15 (Class A), EN55022 (CISPR22 Class A)
standard — for safety / from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-7
standard — for hazardous zone / from CSA and UL	Hazardous Locations: Class 1 Division 2
standard — for emitted interference	EN 61000-6-4 (Class A)
standard — for interference immunity	EN 61000-6-2
laser protection class	21 CFR Chapter 1, Subchapter J
certificate of suitability	EN 61000-6-2, EN 61000-6-10
certificate of suitability — CE marking	Yes
certificate of suitability — C-Tick	No
certificate of suitability — KC approval	No
certificate of suitability — E1 approval	No
certificate of suitability — IEC 61850-3	Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	259.55 kg
global warming potential [CO2 eq] — during manufacturing	13.3 kg
global warming potential [CO2 eq] — during operation	246.21 kg
global warming potential [CO2 eq] — after end of life	0.04 kg

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to website: Industry Mall/RUGGEDCOM selector	https://www.siemens.com/ruggedcom-selector
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to website: Siemens RUGGEDCOM	https://www.siemens.com/ruggedcom
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GK6000-8TX01-2AA0PDF

6GK6000-8TX01-2AA0: frequently asked questions

When can 6GK6000-8TX01-2AA0 be shipped?

6GK6000-8TX01-2AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GK6000-8TX01-2AA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GK6000-8TX01-2AA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK6000-8TX01-2AA0, subject to availability and destination.
