Home / Siemens / Communication Modules / Siemens 6GK5980-3CB00-0AA1

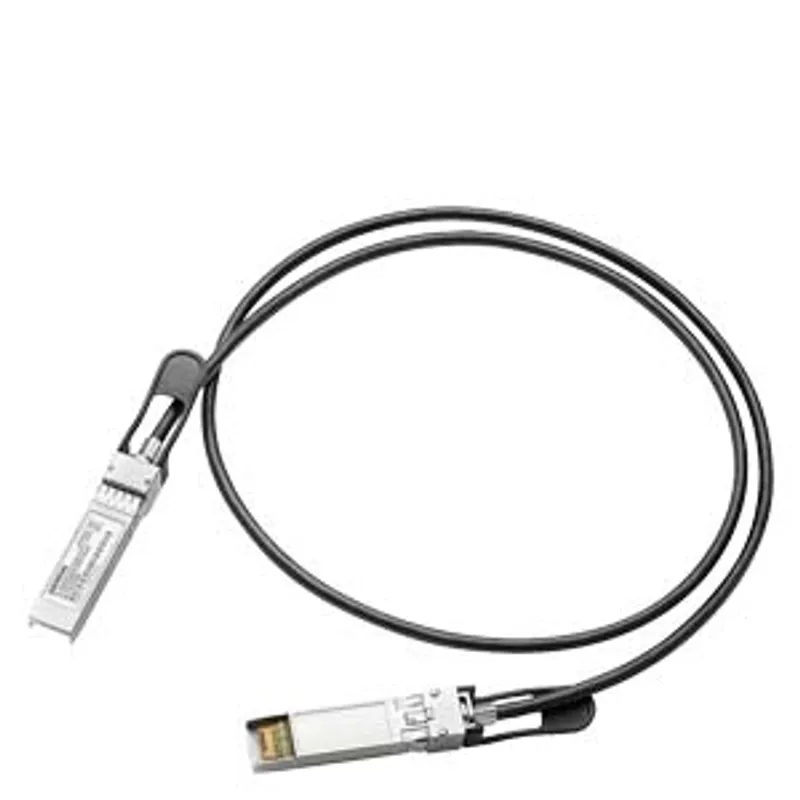

Siemens 6GK5980-3CB00-0AA1

IE cable SFP+/SFP+; pre-assembled IE cable with SFP-plus connectors; 1 pack=1 unit, length 1 m.

MPN: 6GK5980-3CB00-0AA1
Category: Communication Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5980-3CB00-0AA1?

IE cable SFP+/SFP+; pre-assembled IE cable with SFP-plus connectors; 1 pack=1 unit, length 1 m.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6GK5980-3CB00-0AA1
cable designation	02YS(ST)CY 2X2X0,25/0,75-100 PPIMF
wire length	1 m

electrical data

number of electrical connections	2
attenuation factor per length — at 600 MHz / maximum	1 dB/m
impedance — rated value	100 Ω

mechanical data

number of electrical cores	4
design of the shield	Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
AWG number	30
outer diameter — of cable sheath	4.1 mm
material — of cable sheath	PVC
color — of cable sheath	Black
bending radius — with single bend / minimum permissible	21 mm
bending radius — with multiple bends / minimum permissible	41 mm
weight per length	23 kg/km

ambient conditions

ambient temperature — during operation	-25 ... +80 °C
ambient temperature — during storage	-25 ... +80 °C
ambient temperature — during transport	-25 ... +80 °C
ambient temperature — during installation	80 °C
ambient temperature — note	Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472
fire behavior	flame resistant according to IEC 60332-1-2/60332-3-24 (Category C) and UL PLCC
protection class IP	IP20

product features, product functions, product components / general

product feature — halogen-free	No
product feature — silicon-free	No

standards, specifications, approvals

certificate of suitability — RoHS conformity

Yes

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GK5980-3CB00-0AA1PDF

6GK5980-3CB00-0AA1: frequently asked questions

When can 6GK5980-3CB00-0AA1 be shipped?

6GK5980-3CB00-0AA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GK5980-3CB00-0AA1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GK5980-3CB00-0AA1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5980-3CB00-0AA1, subject to availability and destination.
