Siemens 6GK5897-4PY00-0HA0

ANT897-4PY antenna for 5G/4G/3G/2G networks in frequency range from 617 to 5925 MHz 4 antenna elements

MPN: 6GK5897-4PY00-0HA0
Category: Mobile network antennas

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5897-4PY00-0HA0?

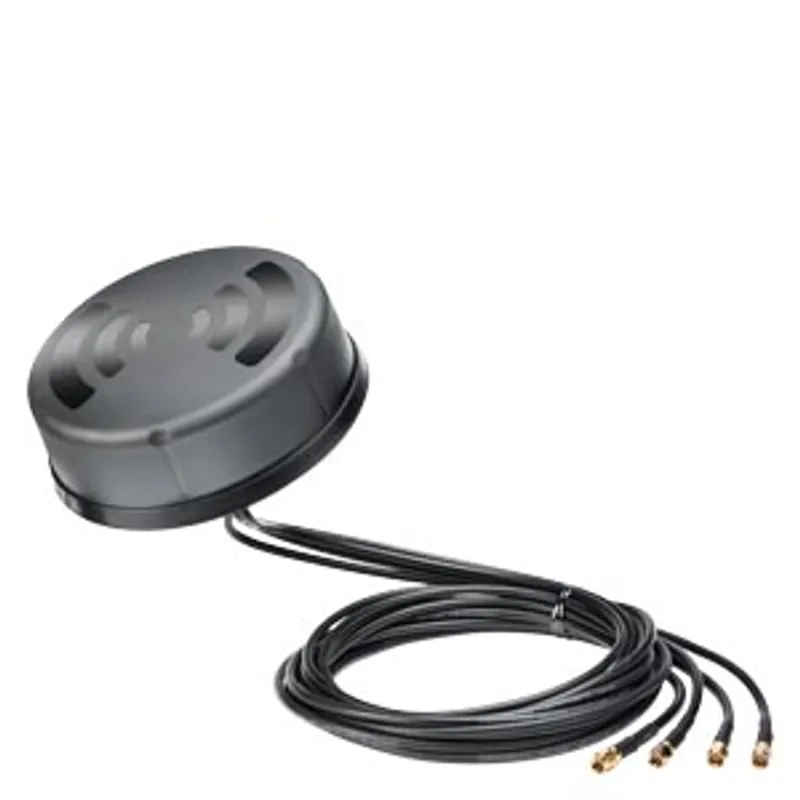

ANT897-4PY antenna for 5G/4G/3G/2G networks in frequency range from 617 to 5925 MHz 4 antenna elements; omnidirectional characteristic antenna gain: 1..4 dBi; including 4x 5 m cable with SMA plug-in connector; IP65/IP67; -30..+70 °C exact specification and national approvals to be observed

Specifications

General

product brand name	SCALANCE
Technical Product Detail Page	https://i.siemens.com/1P6GK5897-4PY00-0HA0
suitability for operation	antenna for 5G/4G/3G/2G networks

radio frequencies

type of wireless network / is supported	5G public networks, 5G private networks, LTE, UMTS, GSM
operating frequency / 1	617 ... 960 MHz
operating frequency / 2	1452 ... 2700 MHz
operating frequency / 3	3300 ... 5925 MHz

electrical data

antenna gain compared to spherical radiator — with linear radiation	typical maximum gain measured on metallic floor area Ø 0.35 m with cable length 0.3 m
antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 1 / typical	1 dB
antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 2 / typical	4 dB
antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 3 / typical	4 dB
impedance	50 Ω
polarization	Linear Vertical
radiation characteristic	omnidirectional
standing wave ratio (VSWR) / maximum	2.5
number of electrical connections / of the antenna	4
type of electrical connection / of the antenna	SMA Connector
design of plug-in connection	male

mechanical data

material — of outer shell	PC+ABS
color	black

ambient conditions

ambient temperature — during operation	-30 ... +70 °C
ambient temperature — during storage	-40 ... +85 °C
protection class IP	IP65/67

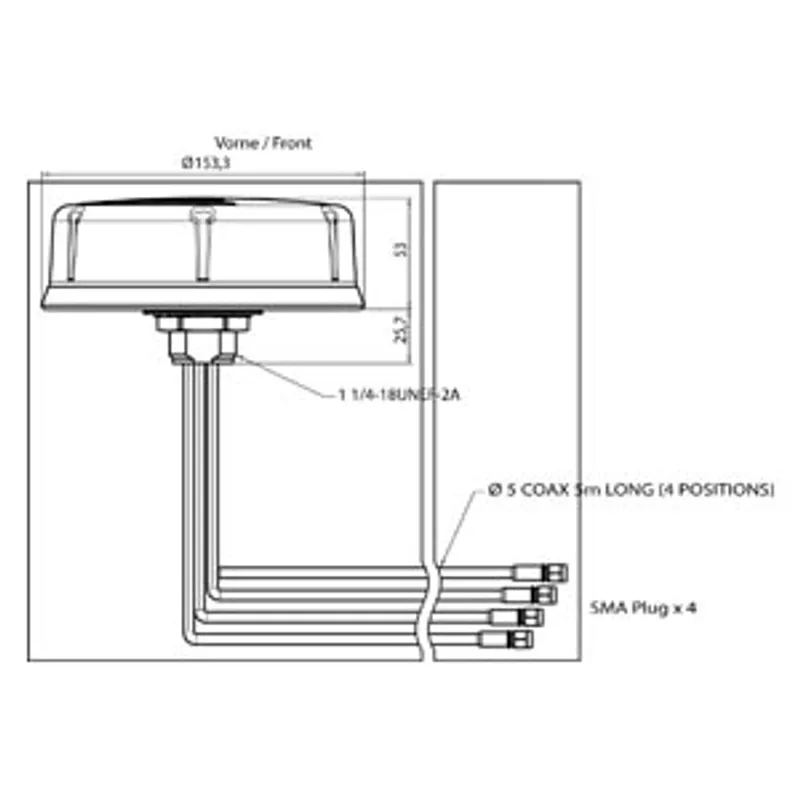

design, dimensions and weights

height	53 mm
diameter	153 mm
net weight	1340 g
fastening method	from outside in 32 mm drill hole, one stainless steel nut
fastening method — mast mounting	No
fastening method — flat roof mounting	Yes
fastening method — wall mounting	No
fastening method — roof mounting	Yes
fastening method — directly on the device	No
cable designation	J195
wire length / of antenna cable	5 m

product features, product functions, product components / general

product feature / silicon-free

standards, specifications, approvals

certificate of suitability — RoHS conformity	Yes
wireless approval	Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GK5897-4PY00-0HA0PDF
