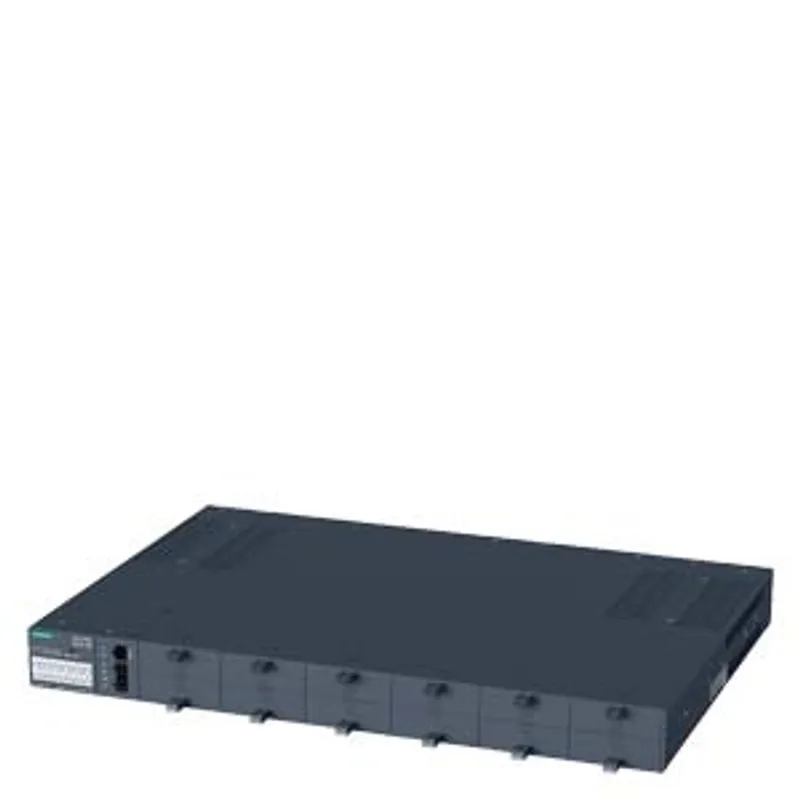

Siemens 6GK5324-0GG10-1AR2

SCALANCE XR324-12M; managed IE switch, 19" rack; 12x 100/1000 Mbit/s 2-port media modules

MPN
6GK5324-0GG10-1AR2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5324-0GG10-1AR2?

SCALANCE XR324-12M; managed IE switch, 19" rack; 12x 100/1000 Mbit/s 2-port media modules, electrical or optical; LED diagnostics; error signaling Contact; Select/set pushbutton, PROFINET IO device, network management, Integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) C-PLUG in scope of supply; Power supply 24 V DC; Ports in the front.

Specifications

product type designation

product brand nameSCALANCE
product type designationXR324-12M
Technical Product Detail Pagehttps://i.siemens.com/1P6GK5324-0GG10-1AR2

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces / for communication / integrated

number of 100 Mbit/s ST(BFOC) ports — for multimode24
number of 100 Mbit/s SC ports — for multimode24

interfaces / other

number of electrical connections — for operator console1
number of electrical connections — for signaling contact1
number of electrical connections — for media module12
number of electrical connections — for power supply1
type of electrical connection — for operator consoleRJ11
type of electrical connection — for signaling contact2-pole terminal block
type of electrical connection — for power supply4-pole terminal block
design of the removable storage — C-PLUGYes
operating voltage / of the signaling contacts — at DC / rated value24 V
operational current / of the signaling contacts — at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes
type of voltage supply / redundant power supply unitNo
type of voltage / 1 / of the supply voltageDC
type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value44 W
type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range19.2 ... 28.8
type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum1.8 A
type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply4-pole terminal block
type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply inputYes
type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltageF 5 A / 125 V

ambient conditions

ambient temperature — during operation-40 ... +70 °C
ambient temperature — during storage-40 ... +85 °C
ambient temperature — during transport-40 ... +85 °C
ambient temperature — noteReduced operating temperature through the use of media modules (-40 °C to +70 °C) or SFP plug-in transceivers (-40 °C to +60 °C). If the device is installed in the vertical position, the maximum operating temperature is reduced to +50 °C.
relative humidity — at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

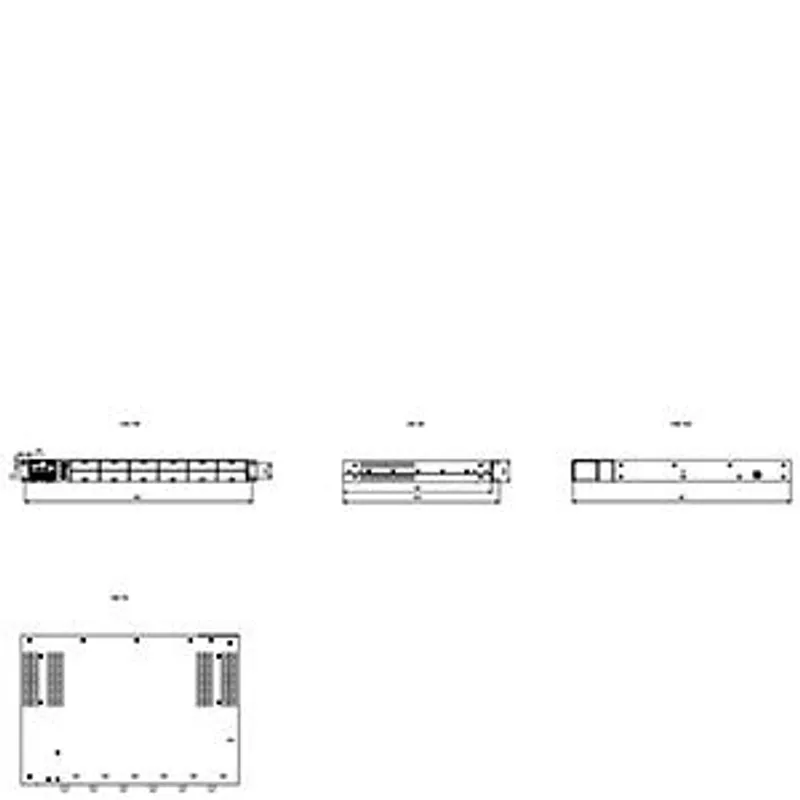

design, dimensions and weights

design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width483 mm
height44 mm
depth305 mm
net weight5.5 kg
product feature / conformal coatingNo
fastening methodWhen used in shipbuilding, the device must be secured in the 19" rack at four points
fastening method — 19-inch installationYes
fastening method — 35 mm DIN-rail mountingNo
fastening method — wall mountingNo
fastening method — S7-300 rail mountingNo
fastening method — S7-1500 rail mountingNo

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100
cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

product function — CLIYes
product function — web-based managementYes
product function — MIB supportYes
product function — TRAPs via emailYes
product function — configuration with STEP 7Yes
product function — RMONYes
product function — port mirroringYes
product function — multiport mirroringYes
product function — CoSYes
product function — PROFINET IO diagnosisYes
product function — switch-managedYes
PROFINET conformity classB
protocol / is supported — TelnetYes
protocol / is supported — HTTPYes
protocol / is supported — HTTPSYes
protocol / is supported — TFTPYes
protocol / is supported — FTPYes
protocol / is supported — BOOTPYes
protocol / is supported — GMRPYes
protocol / is supported — DCPYes
protocol / is supported — LLDPYes
protocol / is supported — SNMP v1Yes
protocol / is supported — SNMP v2Yes
protocol / is supported — SNMP v3Yes
protocol / is supported — IGMP (snooping/querier)Yes
identification & maintenance function — I&M0 - device-specific informationYes
identification & maintenance function — I&M1 - higher level designation/location designationYes

product functions / diagnostics

product function — port diagnosticsYes
product function — statistics Packet SizeYes
product function — statistics packet typeYes
product function — error statisticsYes
product function — SysLogYes

product functions / VLAN

product function — VLAN - port basedYes
product function — VLAN - protocol-basedNo
product function — VLAN - IP-basedNo
product function — VLAN dynamicYes
number of VLANs / maximum255
number of VLANs - dynamic / maximum255

product functions / DHCP

product function — DHCP clientYes
product function — DHCP Option 82Yes
product function — DHCP Option 66Yes
product function — DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes
product function — media redundancy protocol (MRP) with redundancy managerYes
product function — ring redundancyYes
product function — high speed redundancy protocol (HRP) with redundancy managerYes
product function — high speed redundancy protocol (HRP) with standby redundancyYes
product function — redundancy procedure STPYes
product function — redundancy procedure RSTPYes
product function — redundancy procedure MSTPYes
product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
product function — passive listeningYes
protocol / is supported — STP/RSTPYes
protocol / is supported — STPYes
protocol / is supported — RSTPYes
protocol / is supported — MSTPYes
protocol / is supported — RSTP big network supportYes
protocol / is supported — LACPYes

product functions / security

product function — IEEE 802.1x (radius)Yes
product function — broadcast/multicast/unicast limiterYes
product function — broadcast blockingYes
protocol / is supported — SSHYes

product functions / time

product function — SICLOCK supportYes
protocol / is supported — NTPYes
protocol / is supported — SNTPYes
protocol / is supported — IEEE 1588 profile defaultYes

standards, specifications, approvals

certificate of suitability — CE markingYes
certificate of suitability — UKCA markingYes
certificate of suitability — KC approvalYes
certificate of suitability — Regulatory Compliance Mark (RCM)Yes
standard — for EMC interference emissionEN 61000-6-4:2007 (Class A)
standard — for immunity to EMCEN 61000-6-2:2005
standard — for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1-03

standards, specifications, approvals / hazardous environments

certificate of suitability — ATEXYes
certificate of suitability — UKEXYes
certificate of suitability — IECExYes
certificate of suitability — ULhazloc approvalYes
certificate of suitability — CCC / for hazardous zone according to GB standardYes
certificate of suitability — FM registrationYes

standards, specifications, approvals / other

certificate of suitability — railway application in accordance with EN 50155No
certificate of suitability — RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
Marine classification association — Det Norske Veritas (DNV)No
Marine classification association — Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total1353.37 kg
global warming potential [CO2 eq] — during manufacturing132 kg
global warming potential [CO2 eq] — during operation1220.78 kg
global warming potential [CO2 eq] — after end of life0.59 kg

product functions / general

MTBF25 a
warranty period5 a

further information / internet links

internet link — to website: Selection guide for cables and connectorshttps://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to website: Industrial communicationhttps://www.siemens.com/simatic-net
internet link — to web page: SiePortalhttps://sieportal.siemens.com/
internet link — to website: Image databasehttps://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Managerhttps://www.siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing132 kg
global warming potential [CO2 eq] / during operation1220.78 kg
global warming potential [CO2 eq] / after end of life0.59 kg
global warming potential [CO2 eq] / total1353.37 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6GK5324-0GG10-1AR2: frequently asked questions

When can 6GK5324-0GG10-1AR2 be shipped?

6GK5324-0GG10-1AR2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GK5324-0GG10-1AR2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GK5324-0GG10-1AR2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5324-0GG10-1AR2, subject to availability and destination.
