Siemens
6GK1901-1BB20-2AE0
Siemens 6GK1901-1BE00-0AA3
IE FC RJ45 modular outlet Base module with power insert Interchangeable insert for 1 x 24 V DC and 1 x 100…
- MPN
- 6GK1901-1BE00-0AA3
- Category
- IE FC RJ45 modular outlet
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK1901-1BE00-0AA3?

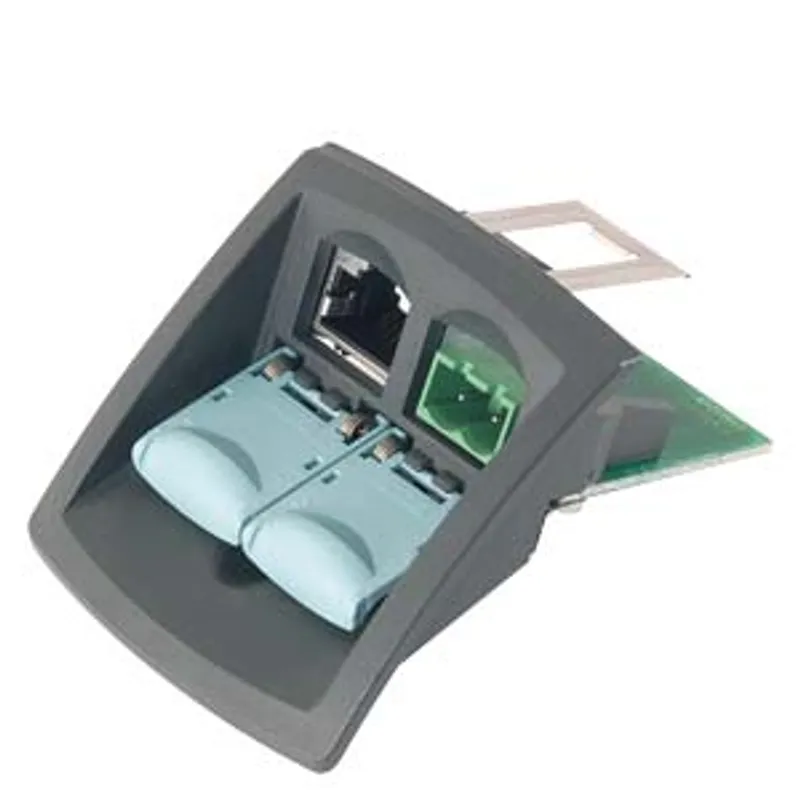

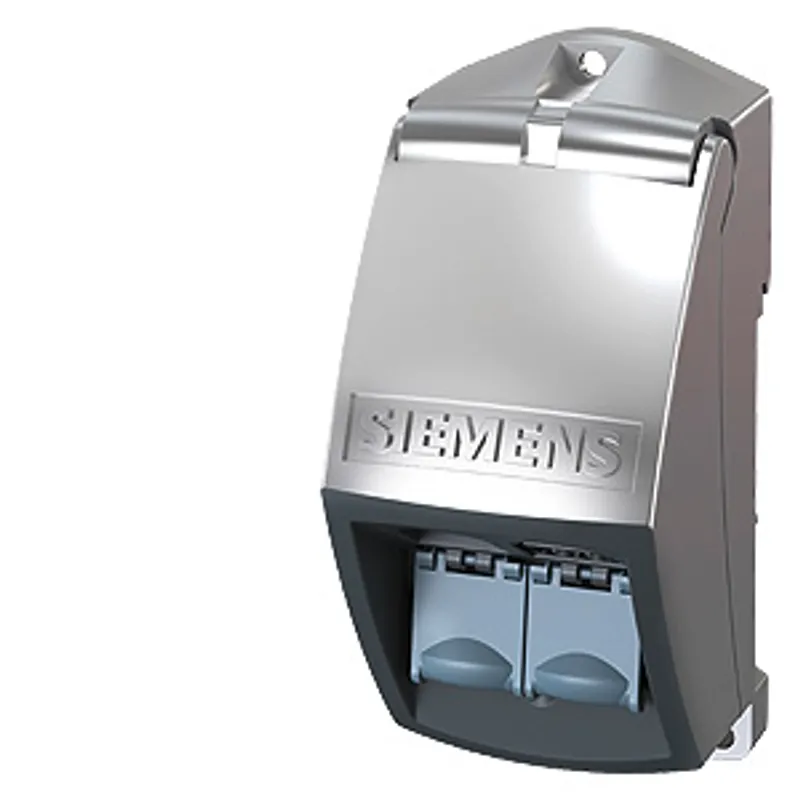

IE FC RJ45 modular outlet Base module with power insert Interchangeable insert for 1 x 24 V DC and 1 x 100 Mbit/s interface.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1901-1BE00-0AA3 |
transfer rate
| transfer rate — for Industrial Ethernet | 10, 100 Mbit/s |
interfaces
| number of electrical connections — for Industrial Ethernet FC TP cables | 1 |
| number of electrical connections — for network components or terminal equipment | 1 |
| type of electrical connection — for Industrial Ethernet FC TP cables | integrated insulation displacement contacts |
| type of electrical connection — for FC RJ45 modular outlet power insert | 1 x RJ45 socket (10/100 Mbit/s), 1 x 24 V DC terminal |
| type of electrical connection — FastConnect | Yes |
mechanical data
| material / of the enclosure | metal |
| number of reuses | 10 |

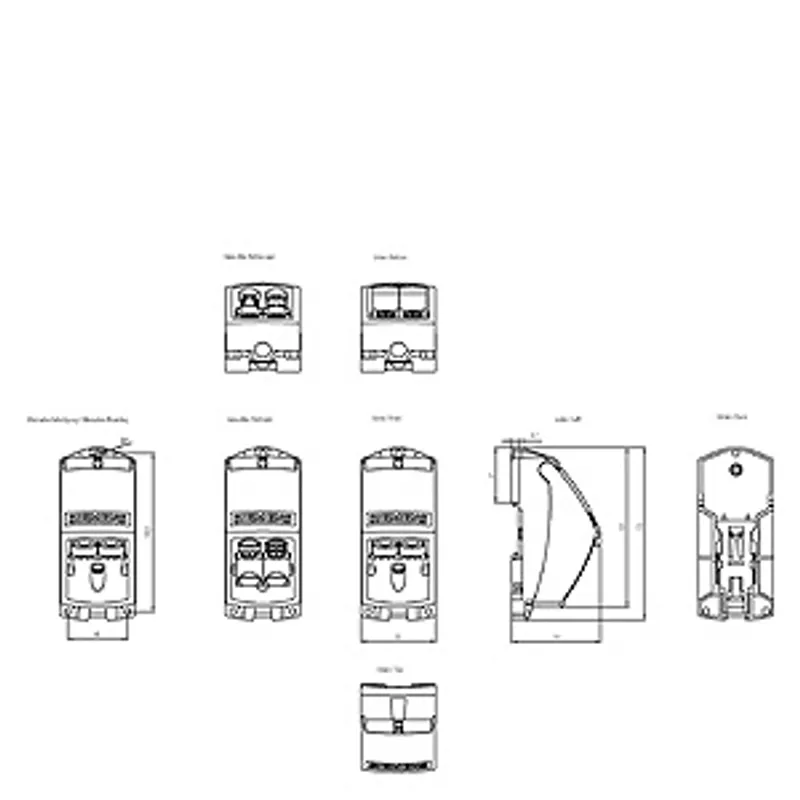

design, dimensions and weights
| width | 50 mm |
| height | 115.25 mm |
| depth | 58.95 mm |
| net weight | 400 g |
| connectable cable diameter | 9.5 |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
ambient conditions
| ambient temperature — during operation | -20 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP40 |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://siemens.com/tst |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK1901-1BE00-0AA3: frequently asked questions
When can 6GK1901-1BE00-0AA3 be shipped?
6GK1901-1BE00-0AA3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK1901-1BE00-0AA3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK1901-1BE00-0AA3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK1901-1BE00-0AA3, subject to availability and destination.
