Siemens 6GK1901-1BB20-2AB0
IE FC RJ45 plug 2 x 2, Cat5e
- MPN
- 6GK1901-1BB20-2AB0
- Category
- IE FC RJ45 plug 2 x 2, Cat5e
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

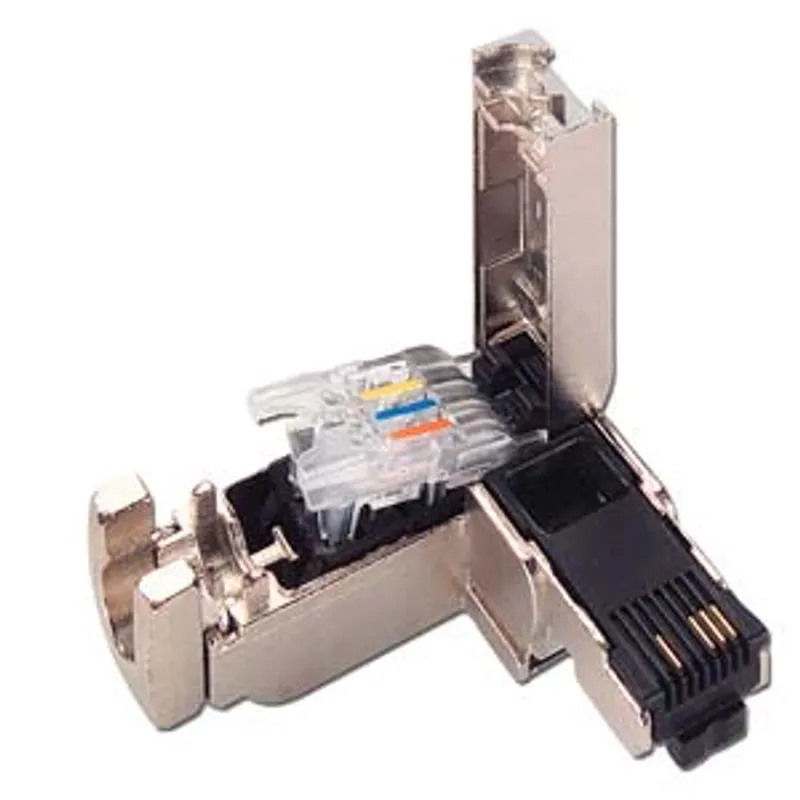

What is the Siemens 6GK1901-1BB20-2AB0?
Industrial Ethernet FastConnect RJ45 plug 90 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP Cable 2x 2; 90° cable outlet 1 pack = 10 units.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1901-1BB20-2AB0 |
| suitability for use | For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system |
transfer rate
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
interfaces
| number of electrical connections — for Industrial Ethernet FC TP cables | 4 |
| number of electrical connections — for network components or terminal equipment | 1 |
| type of electrical connection — for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 |
| type of electrical connection — for network components or terminal equipment | RJ45 connector |
| type of electrical connection / FastConnect | Yes |
mechanical data
| material / of the enclosure | metal |
| number of reuses | 10 |
| locking mechanism design | other |

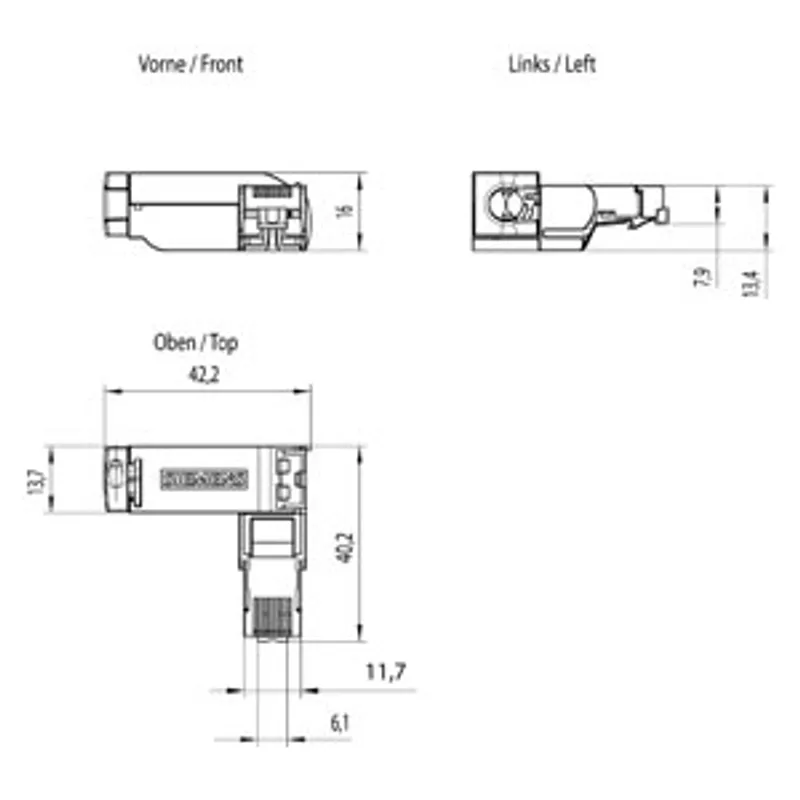

design, dimensions and weights
| type of cable outlet | 90° cable outlet |
| width | 13.7 mm |
| height | 16 mm |
| depth | 42 mm |
| net weight | 35 g |
| connectable cable diameter | 6.5 mm |
| connectable conductor cross-section | 0.33 mm² |
ambient conditions
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
product features, product functions, product components / general
| product feature — PoE capability | Yes |
| product feature — PoE+ capability | Yes |
| product feature — silicon-free | Yes |
| product component — strain relief | Yes |
| test voltage — at AC / core-to-core | 500 V |
| test voltage — at AC / core shield | 1500 V |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — cULus approval | Yes |
| certificate of suitability — railway application in accordance with EN 50155 | No |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| standard for structured cabling | Cat5 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 0.277 kg |
| global warming potential [CO2 eq] — during manufacturing | 0.263 kg |
| global warming potential [CO2 eq] — during operation | 0.0086 kg |
| global warming potential [CO2 eq] — after end of life | 0.0062 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
