Siemens 6GF3530-0CD10
SIMATIC MV530 S optical reader resolution: 800 x 600 pixels; Function: 1D/2D code reading
- MPN
- 6GF3530-0CD10
- Category
- SIMATIC MV530/MV540/MV550/MV560
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GF3530-0CD10?

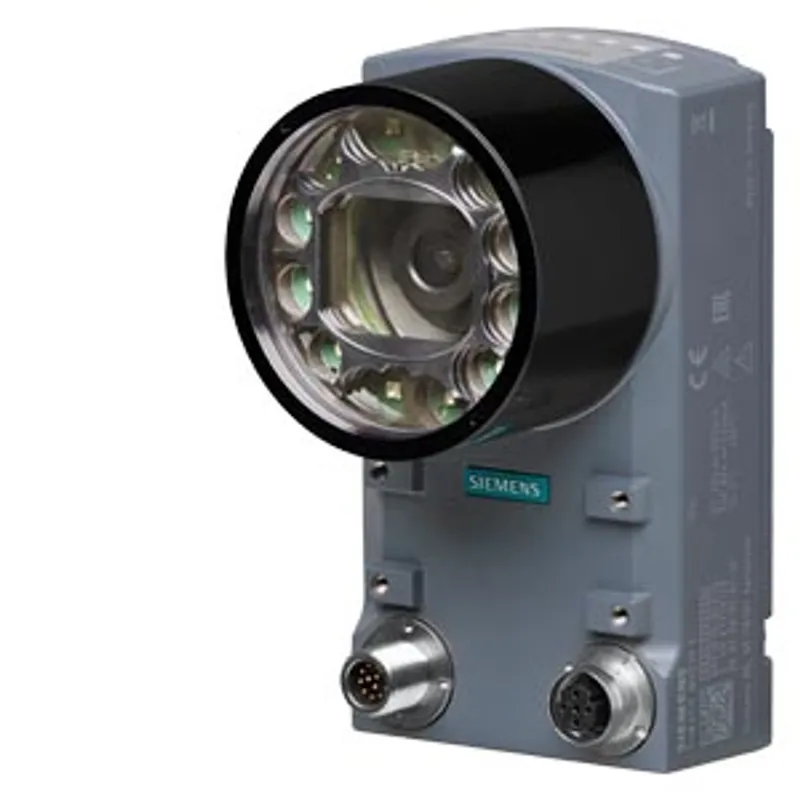

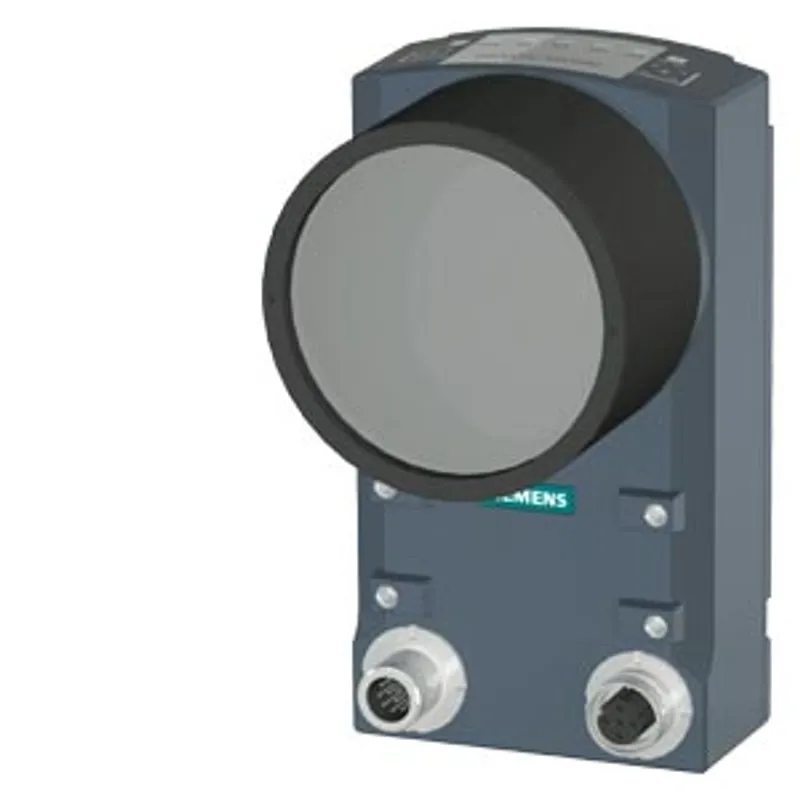

SIMATIC MV530 S optical reader resolution: 800 x 600 pixels; Function: 1D/2D code reading; operating range [mm]: 30…250, depending on dot size; image field[mm]: 40x30…185x140; PoE; IP67; delivery: complete reader incl. built-in ring lamp green, pole filter, Optic 5.6 mm (fix- focus, fixed cover) and protective barrel;
Specifications
General
| product brand name | SIMATIC MV |
| Technical Product Detail Page | https://i.siemens.com/1P6GF3530-0CD10 |
| suitability for operation | 1D codes: Int. 2/5, Code 128, Code 93, Code 39, Code 32, EAN 13, EAN 8, UPC-A, UPC-E, GS1, Pharmacode, Postnet, 2D codes: DMC, dot code, PDF417 (without: Truncated, Micro and Macro), Q R (without: Micro and Macro), verification uncalibrated |
interfaces
| type of electrical connection — of Industrial Ethernet interface | M12, d-coded, PoE |
| type of electrical connection — of the RS 422 interface | M12, 12-pin, male |
| type of electrical connection — of the RS 232 interface | M12, 12-pin, male |
| type of electrical connection — for supply voltage | M12, 12-pin, male |
| type of electrical connection — at the digital inputs/outputs | M12, 12-pin, male |
| number of digital inputs | 1 |
| number of digital outputs | 3 |
| digital input version | 1 fast trigger input |
| digital output version | 1 fast strobe output, 2 potential-free outputs (NPN- PNP-capable) |
optical data
| design of image sensor / of the camera | CMOS-Chip, 800 x 600 |
| type of image capture | Global shutter with manual or automatic exposure time |
| range | 30 ... 250 mm |
| range / note | range determined and preset by the built-in special lens |
| fastening method / of lens | C-mount lens connection |
| type of light source | Integrated lighting or external lighting according to accessories list |
| picture recording frequency / maximum | 100 Hz |
| code reading rate / maximum | 80 1/s |
| type of focusing | Based on mounting |
supply voltage, current consumption, power loss
| supply voltage / at DC — rated value | 24 V |
| consumed current / at DC / at 24 V — typical | 0.2 A |
| consumed current / at DC / at 24 V — maximum | 2 A |
| buffering time / in the event of power failure / minimum | 0.01 s |
mechanical data
| material | Die-cast aluminum |
| color | petrol blue |
ambient conditions
| ambient temperature — during operation | 50 °C |
| ambient temperature — during storage | -30 ... +70 °C |
| ambient temperature — during transport | -30 ... +70 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP67 |
| shock resistance | According to IEC 60068-2 |
| shock acceleration | 300 m/s² |
| vibrational acceleration | 40 m/s² |
design, dimensions and weights
| width | 68 mm |
| height | 122 mm |
| depth | 45 mm |
| net weight | 0.55 kg |
| fastening method | 4 x M4 screws |
product features, product functions, product components / general
| display version | 7 LEDs |
| protocol / is supported / Media Redundancy Protocol (MRP) | No |
| product function / of the PROFINET IO device / is supported / H-Sync forwarding | No |
| protocol / is supported — LLDP | Yes |
| protocol / is supported — PROFINET IO protocol | Yes |
| protocol / is supported — TCP/IP | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | No |
| protocol / is supported — SNMP v3 | No |
| protocol / is supported — DCP | Yes |
| protocol / is supported — EtherNet/IP protocol | No |
| protocol / is supported — OPC UA | No |
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability | CE, NuG suitable |
| MTBF | 66 a |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 177.46 kg |
| global warming potential [CO2 eq] — during manufacturing | 27.19 kg |
| global warming potential [CO2 eq] — during operation | 150.2 kg |
| global warming potential [CO2 eq] — after end of life | 0.07 kg |
accessories
| accessories | mounting brackets, built-in ring lights, external ring lights, E-focus lens, C-mount lenses, protective barrels for lenses |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
