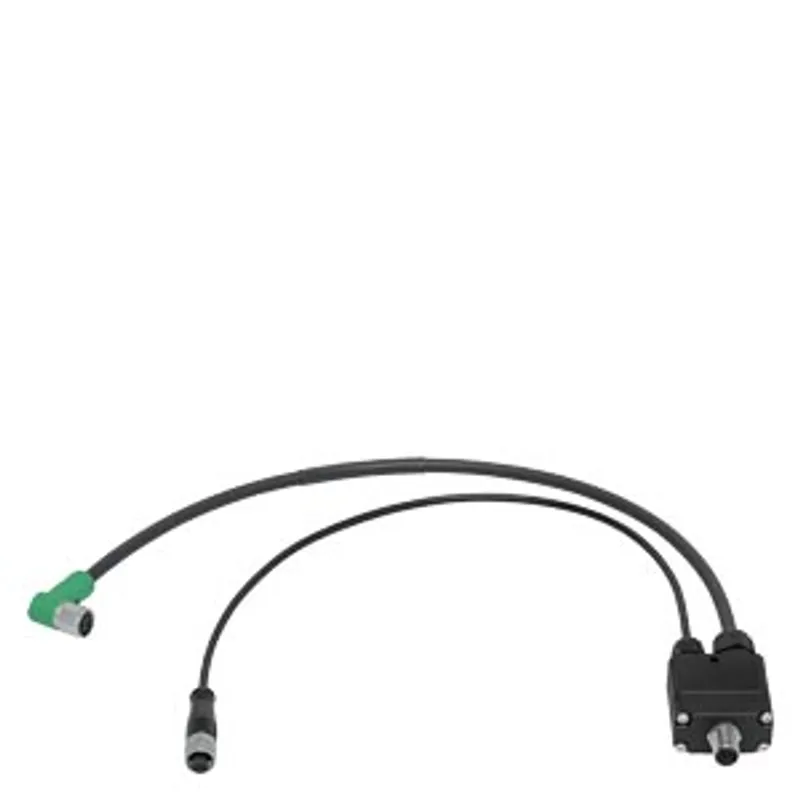

Siemens 6GF3500-8BD10
Adapter cable ext. lamps MV500 for MV500 ring lamps
- MPN
- 6GF3500-8BD10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GF3500-8BD10?
Adapter cable ext. lamps MV500 for MV500 ring lamps; subsequent connection of 6GF3400-0LT0-7BA1 and 6GF3400-0LT0-8BA1 to MV540 for power supply via 6GF3500-8BA21 or 6GF3500-8BA41; Connections: M12, 12-pole socket; M12, 12-pole plug; M12, 4-pole socket; effective length 25 cm.
Specifications
General
| product brand name | SIMATIC MV |
| Technical Product Detail Page | https://i.siemens.com/1P6GF3500-8BD10 |
| suitability for use | Y plug-in cable for later installation of an external ring light on an MV500 |
| wire length | 0.25 m |
electrical data
| number of electrical connections | 3 |
| type of electrical connection | M12 (male, 12-pin, straight) / M12 (female, 12-pin, straight) / M12 (female, 4-pin, straight) |
| operating voltage — maximum | 30 V |
mechanical data
| number of electrical cores | 12 |
| design of the shield | unshielded |
| outer diameter — of cable sheath | 4.7 mm |
| material — of the wire insulation | PP |
| material — of cable sheath | PUR |
| color — of the insulation of data wires | brown, white, blue, black |
| color — of cable sheath | Black |
| bending radius — with single bend / minimum permissible | 23.6 mm |
| bending radius — with multiple bends / minimum permissible | 23.6 mm |
ambient conditions
| ambient temperature — during operation | -15 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| ambient temperature — during installation | -15 ... +80 °C |
| fire behavior | flame resistant according to CSA FT2 - HFT(UL) |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; UL/CSA 20549 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GF3500-8BD10: frequently asked questions
When can 6GF3500-8BD10 be shipped?
6GF3500-8BD10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GF3500-8BD10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GF3500-8BD10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GF3500-8BD10, subject to availability and destination.
