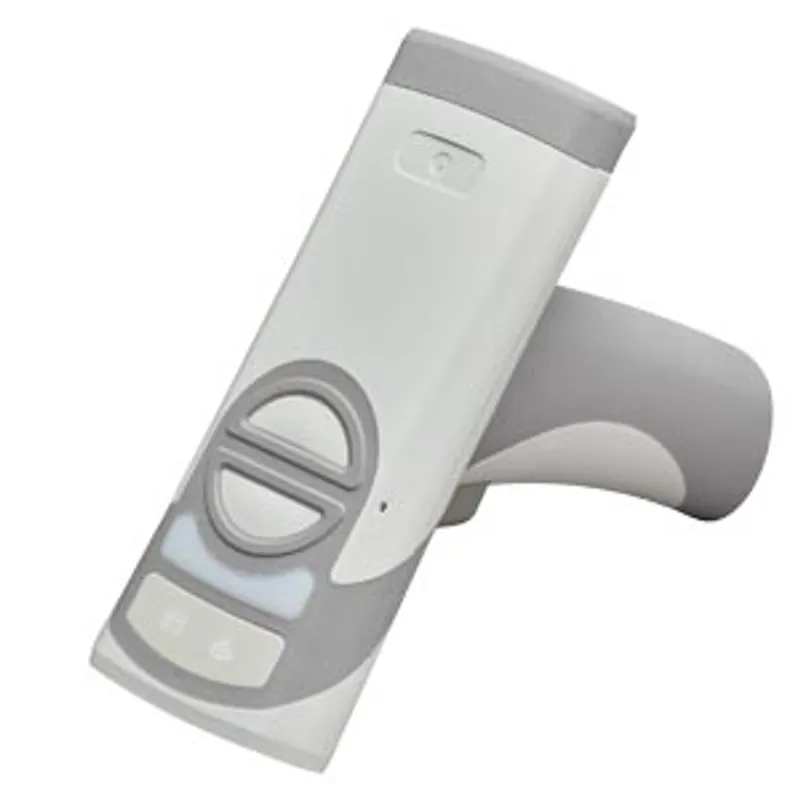

Siemens 6GF3326-0HT01

SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix

MPN: 6GF3326-0HT01
Category: SIMATIC MV326

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GF3326-0HT01?

SIMATIC MV326 optical reader, Bluetooth handheld reader for 1D bar code and data matrix, ready-to-use set from read device, charging station, access point and USB cable 6' (0.9 m) for codes with medium to high contrast, reading range depending on code type and Size 20 mm to 375 mm Note: Inductive charging not compatible with MV325.

Specifications

General

product brand name	SIMATIC MV
Technical Product Detail Page	https://i.siemens.com/1P6GF3326-0HT01
suitability for operation	1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code, 128, Interleaved 2 of 5, GS1 DataBar (RSS), Maxtrix 2of5, MSI Plessey, Plessey, Straight 2of5, Trioptic, UPC/EAN/JAN, Stacked 1D: GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417, 2D: Aztec Code, Data Matrix, Micro QR Code, QR Code, Han Xin
range	20 ... 375 mm
range / note	Code-dependent

optical data

design of image sensor / of the camera	CMOS 1280 x 960, image resolution 960 x 640
fastening method / of lens	Integrated
type of light source	Lighting system comprising incident light (red)
picture recording frequency / maximum	10 Hz
type of focusing	Fixed focus, optimum focal point at 6.3 mm

supply voltage, current consumption, power loss

type of current supply	Battery operation
type of battery	Lithium ion accumulator, fast charging capability
battery capacity	1.3 A·h
operating period / with standard battery / typical	12 h

ambient conditions

ambient temperature — during operation	-20 ... +55 °C
ambient temperature — during storage	-30 ... +65 °C
relative humidity / at 25 °C / without condensation / during operation / maximum	95 %
height of fall / maximum	1.8 m

design, dimensions and weights

width	135 mm
height	51 mm
depth	130 mm
net weight	0.18 kg

product features, product functions, product components / general

design of the display	6 LEDs
operator element version	Trigger in handle
design of acoustic signaling element	Vibration alarm, audible signal
design of the interface	Bluetooth Class 2, USB

product functions / management, configuration, engineering

product function / of the software	Read, display, save, transfer codes
type of programming	Optical parameterization or via configuration software

accessories

Changeable accumulator for 50000 readings (Lion 3.7 V / 1.3 Ah), external charging station (power supply via USB) incl. Bluetooth Accesspoint

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: RFID country approval	https://www.siemens.com/rfid-approvals
internet link — to web page: identification and localization systems	https://www.siemens.com/ident
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
