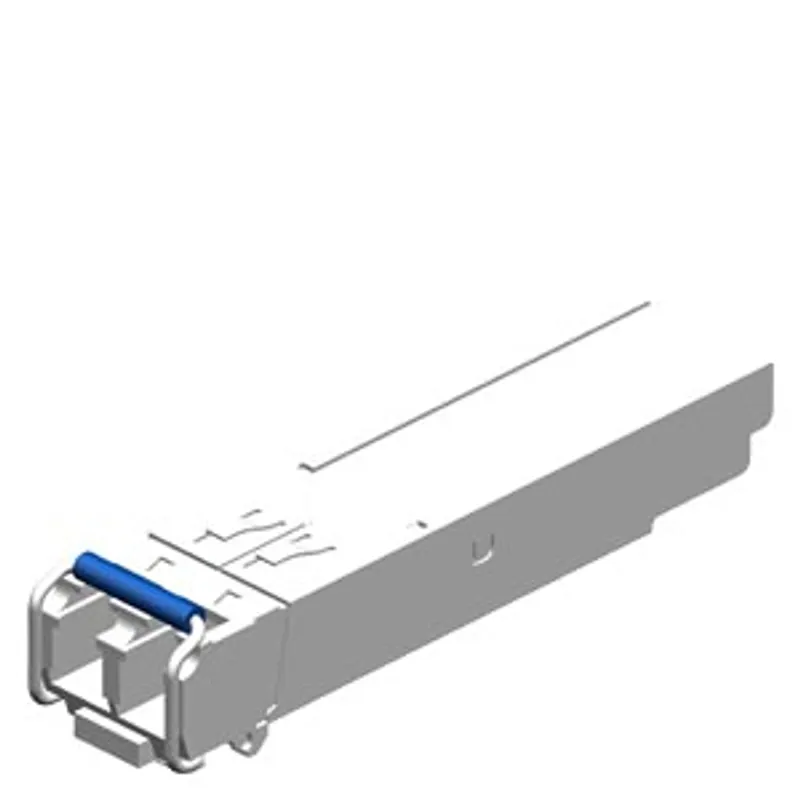

Siemens 6ES7960-1FB00-0AA5
SIMATIC S7-1500H synchronization module for optical fiber cables up to 10 km, fiber category OS1 or OS2
- MPN
- 6ES7960-1FB00-0AA5
- Category
- CPU & Controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7960-1FB00-0AA5?
SIMATIC S7-1500H synchronization module for optical fiber cables up to 10 km, fiber category OS1 or OS2, connector type LC
Specifications
General information
| Product type designation | Synchronization module |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15.1 or higher |
Power loss
| Power loss, typ. | 0.83 W |
Interfaces
| Optical interface | Yes |
| Optical interface — design of optical connection | LC |
| Optical interface — wavelength of optical interface | 1 310 nm |
| Optical interface — range (depending on optical fiber used), min. | 2 m |
| Optical interface — range (depending on optical fiber used), max. | 10 km |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | 0 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | 0 °C |
| Ambient temperature during operation — vertical installation, max. | 40 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |

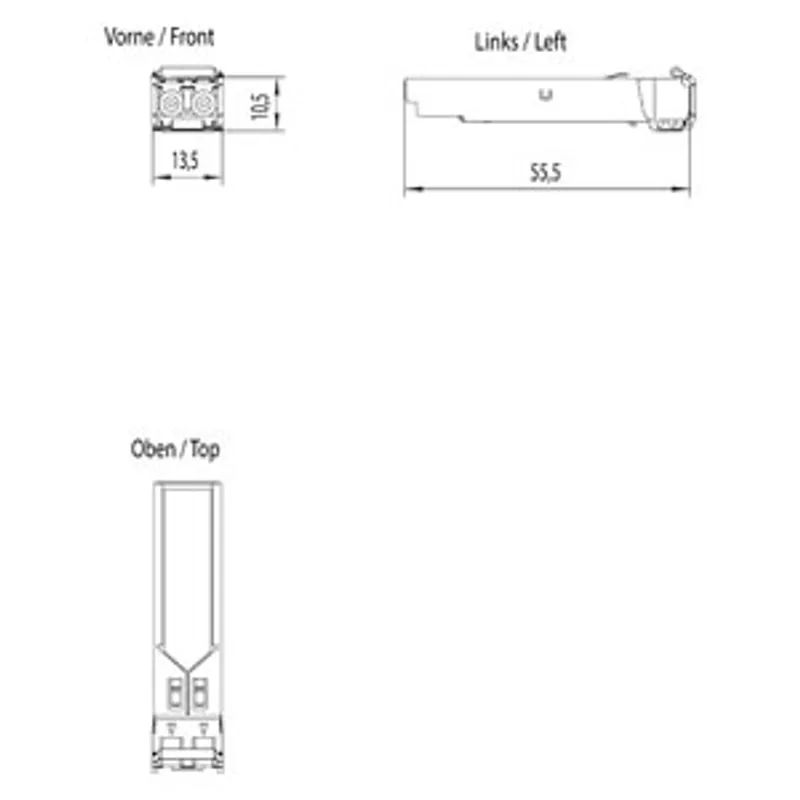

Dimensions
| Width | 13 mm |
| Height | 14 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 18 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7960-1FB00-0AA5: frequently asked questions
When can 6ES7960-1FB00-0AA5 be shipped?
6ES7960-1FB00-0AA5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7960-1FB00-0AA5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7960-1FB00-0AA5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7960-1FB00-0AA5, subject to availability and destination.
