Siemens 6ES7924-0BB20-0AC0
Connection module TP2 8 channels f. 2 A digital output and 2x6 multiplication terminals Type: Push-in…
- MPN
- 6ES7924-0BB20-0AC0
- Category
- Connection modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

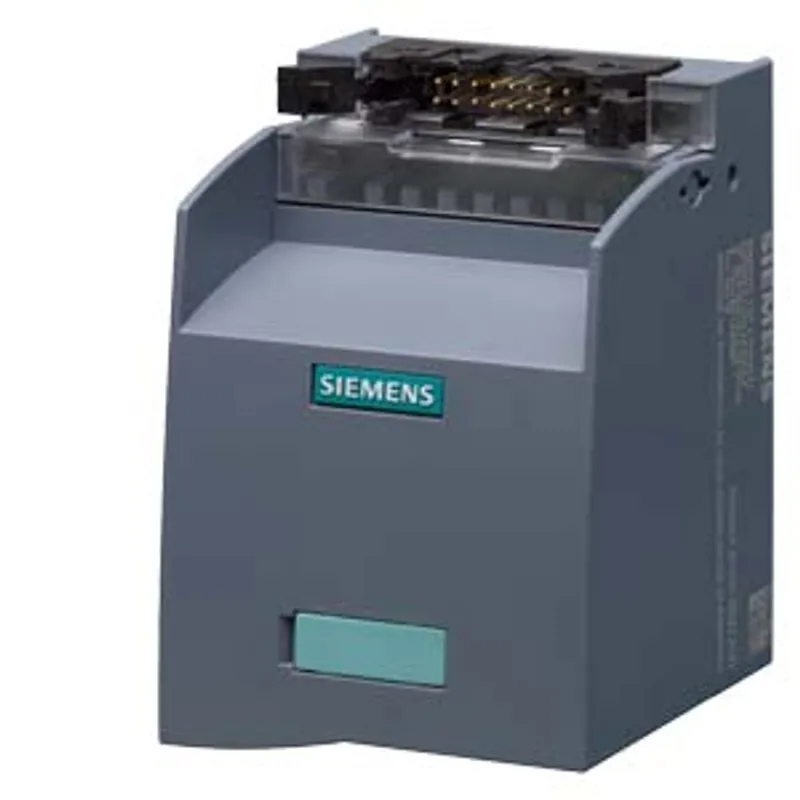

What is the Siemens 6ES7924-0BB20-0AC0?
Connection module TP2 8 channels f. 2 A digital output and 2x6 multiplication terminals Type: Push-in terminal without LED, VPE=1 unit 16 pole IDC connection for cable
Specifications
General
| Technical Product Detail Page | https://i.siemens.com/1P6ES7924-0BB20-0AC0 |
| target system | SIMATIC S7-300 / 1500 |
| suitability for use | 2A Output module |
| product brand name | SIMATIC Top connect |
| product type designation | Fully modular connection |
| product designation | Connection module |
electrical data
| operating voltage — at DC / rated value | 24 V |
| operating voltage — rated value | 50 V |
| operating voltage — at DC / maximum | 50 V |
| ampacity / per pin / maximum | 1 A |
| continuous current / at DC / per signal cable / maximum | 2 A |
| product function / infeed function | Yes |
| product component — PE connection | No |
| product component — shield connection | No |
| product component — disconnector | No |
| product feature / cross-connectable | No |
connection method
| number of terminals | 20; 8 x O; 2 x 6 x M |
| number of channels | 8 |
| type of connecting terminal | push-in |
| position / of the terminal | Top |
| number of terminal levels | 1 |
| design of terminal / terminal levels internally linked | No |
| type of electrical connection / for connecting cable | Plug-in connection |
| number of poles / at the 1st interface | 16; IDC connector with installed strain relief for the connecting cable |
| number of the plug contacts / of the electrical connection | 1 |
| wire length / maximum | 30 m; between front connector module and Connection module |
| type of connectable conductor cross-sections / solid | No |
| connectable conductor cross-section — for flexible conductor / with core end processing | 0.2 ... 2.5 mm²; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar |
| connectable conductor cross-section — stranded | 0.2 ... 2.5 mm² |
| connectable conductor cross-section — finely stranded / without core end processing | 0.2 ... 2.5 mm² |
| connectable conductor cross-section — finely stranded / with core end processing | 0.2 ... 2.5 mm² |
| number of cables / per connection | 2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule. |
| width of screwdriver blade | 3.5 mm |
standards, specifications, approvals
| certificate of suitability — cULus approval | Yes |
| design tested acc. to type of protection / EEx e | No |
| overvoltage category | 2 |
| degree of pollution | 2 |
| combustibility class according to UL 94 | V1 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 14.6 kg |
| global warming potential [CO2 eq] — during manufacturing | 0.8 kg |
| global warming potential [CO2 eq] — during operation | 13.7 kg |
| global warming potential [CO2 eq] — after end of life | 0.08 kg |
ambient conditions
| ambient temperature — during operation | 0 ... 60 °C |
| ambient temperature — during storage | -40 ... +70 |
mechanical data

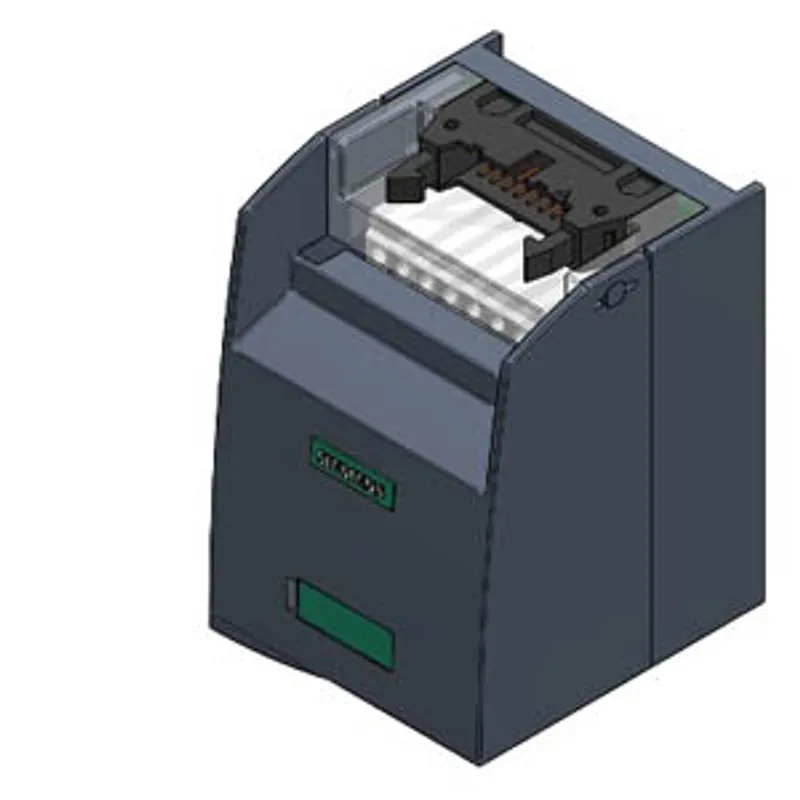

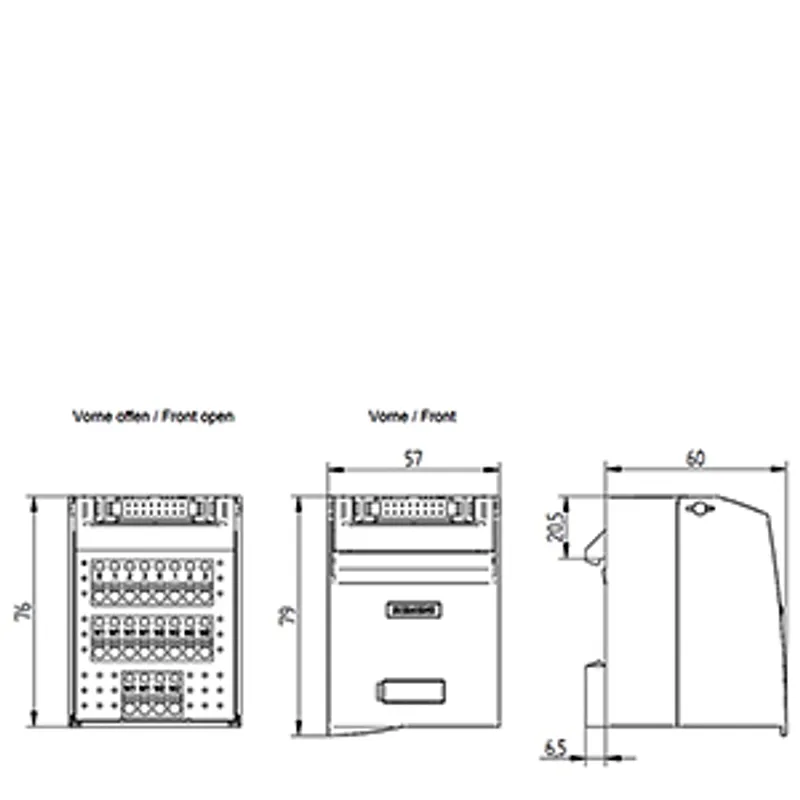

| width × height × depth | 57 mm × 76 mm × 60 mm |
| mounting type | DIN rail 35 mm, DIN rail 15 mm |
| mounting position | any |
| height / with lowest-profile installation | 60 mm |
| net weight | 0.1 kg |
| insulation material | other |
| color — of the enclosure | grey |
| color — of the light source | without |
| product component / required / end cover plate | No |
further information / internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: system cabling | https://siemens.com/simatic-top-connect |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| marketing text | The TP2 connection module for the 2-ampere output modules with 8 channels for a 2-wire connection with push-in terminals without LED for signalling forms the interface between the connecting cables of the peripherals brought in from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module. |
