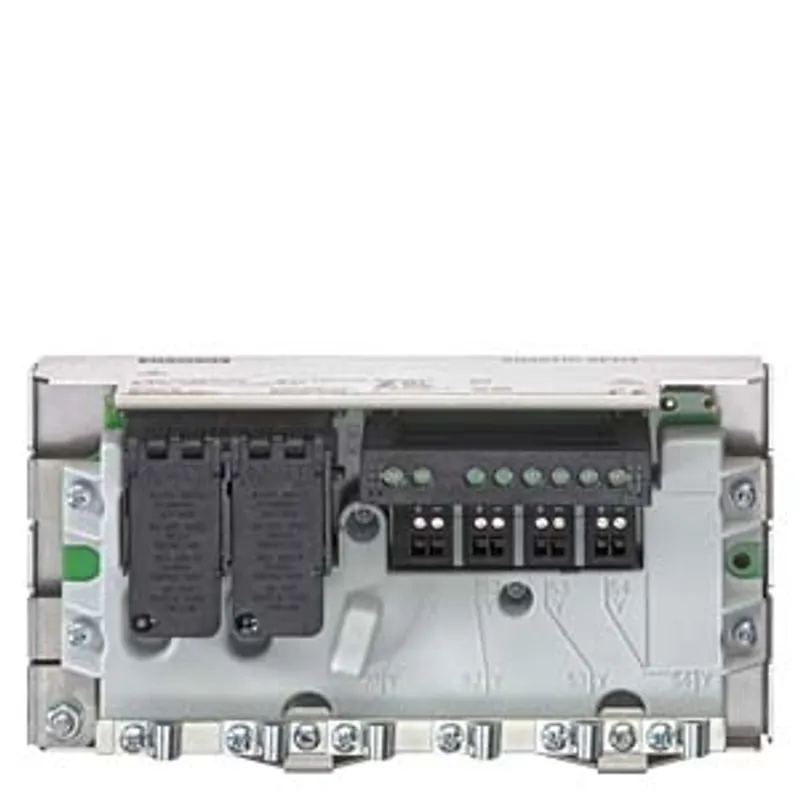

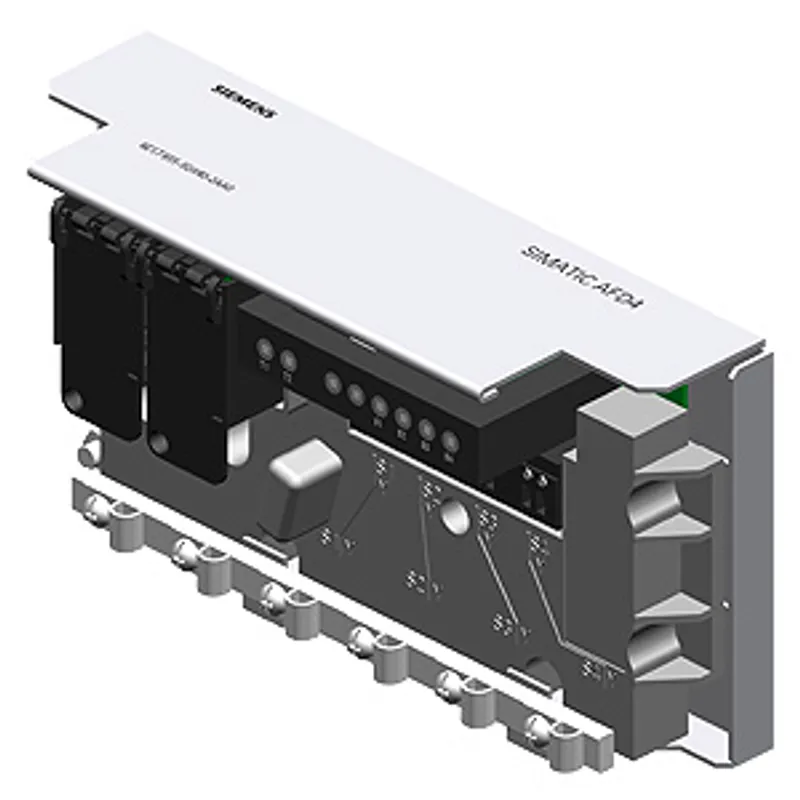

Siemens 6ES7655-5DX40-2AA0
Active field distributor AFD4 for standard mounting rail mounting without enclosure for PROFIBUS PA for…
- MPN
- 6ES7655-5DX40-2AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7655-5DX40-2AA0?
Active field distributor AFD4 for standard mounting rail mounting without enclosure for PROFIBUS PA for foundation Fieldbus H1, 4 short circuit-proof spur lines with bounce protection logic Automatic bus termination for line and ring topology for extended temperature range Degree of protection IP20
Specifications
General information
| Product function — Repeater function | No |
Supply voltage
| permissible range, lower limit (DC) | 16 V |
| permissible range, upper limit (DC) | 32 V |
Input current
| Current consumption (in no-load operation), typ. | 24 mA; 54 mA at the end of the cable |
Power loss
| Power loss, typ. | 384 mW |
| Power loss, max. | 3.2 W |
Interfaces
| PROFIBUS PA — Transmission rate, max. | 31.25 kbit/s |
| PROFIBUS PA — Transmission rate, max. | 31.25 kbit/s |
Protocols
| PROFIBUS PA | Yes |
| FOUNDATION Fieldbus H1 | Yes |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | No |
| Diagnostics function | Yes |
| Diagnostics indication LED — Main line status | Yes |
| Diagnostics indication LED — Spur line status/fault | Yes |
| Diagnostics indication LED — automatic bus termination | Yes |
Potential separation
| between main line and spur lines | No |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Use in hazardous areas — ATEX Zone 1 | No |
| Use in hazardous areas — ATEX Zone 21 | No |
| Use in hazardous areas — ATEX Zone 2 | Yes |
| Use in hazardous areas — ATEX Zone 22 | Yes |
| Use in hazardous areas — FM Class I Zone 1 | No |
| Use in hazardous areas — FM Class I Zone 2, Division 2 | Yes |
Ambient conditions
| Ambient temperature during operation — min. | -40 °C |
| Ambient temperature during operation — max. | 70 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
Connection method
| Main line — Number of main lines | 2 |
| Main line — Design of terminals | Screw terminal block |
| Main line — Type of cable | Type A |
| Main line — Conductor cross-section, min. | 0.2 mm² |
| Main line — Conductor cross-section, max. | 2.5 mm² |
| Main line — automatic bus termination | Yes |
| Main line — permissible main line current | 1 A |
| Spur line — Number of spur lines | 4 |
| Spur line — Type of cable | Type A |
| Spur line — Conductor cross-section, min. | 0.2 mm² |
| Spur line — Conductor cross-section, max. | 2.5 mm² |
| Spur line — Number of connectable field devices | 4 |
| Spur line — total current output to field devices, max. | 240 mA |
| Spur line — Current limitation per field device, max. | 60 mA |
| Spur line — Short-circuit current (test current); max. | 6 mA |
| Spur line — intrinsically safe according to FISCO model | No |
| Spur line — Debounce logic | Yes |

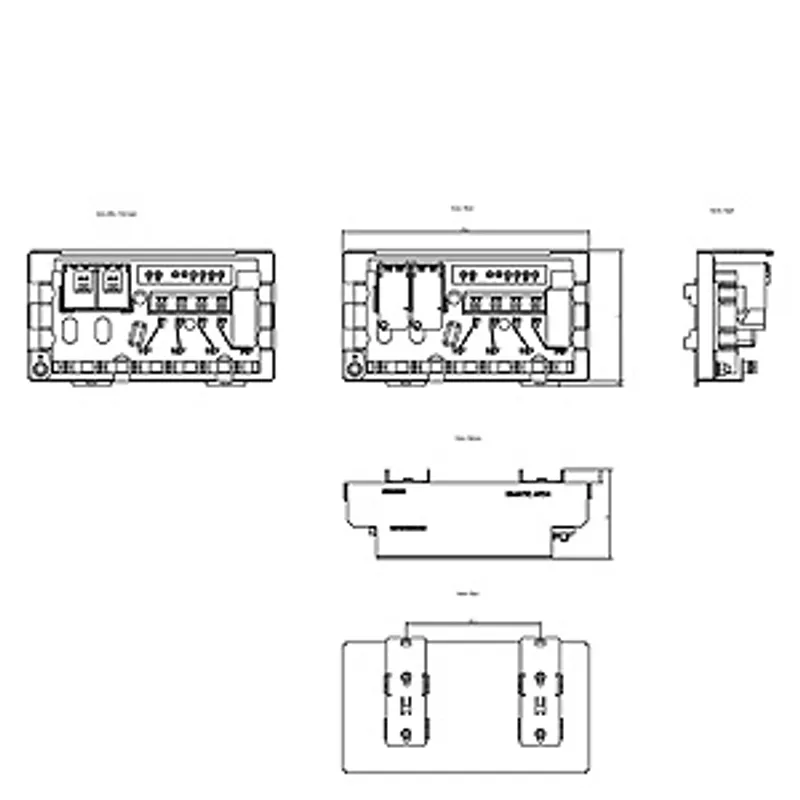

Dimensions
| Width | 220 mm |
| Height | 120 mm |
| Depth | 83 mm |
Weights
| Weight, approx. | 1 000 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7655-5DX40-2AA0: frequently asked questions
When can 6ES7655-5DX40-2AA0 be shipped?
6ES7655-5DX40-2AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7655-5DX40-2AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7655-5DX40-2AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7655-5DX40-2AA0, subject to availability and destination.
