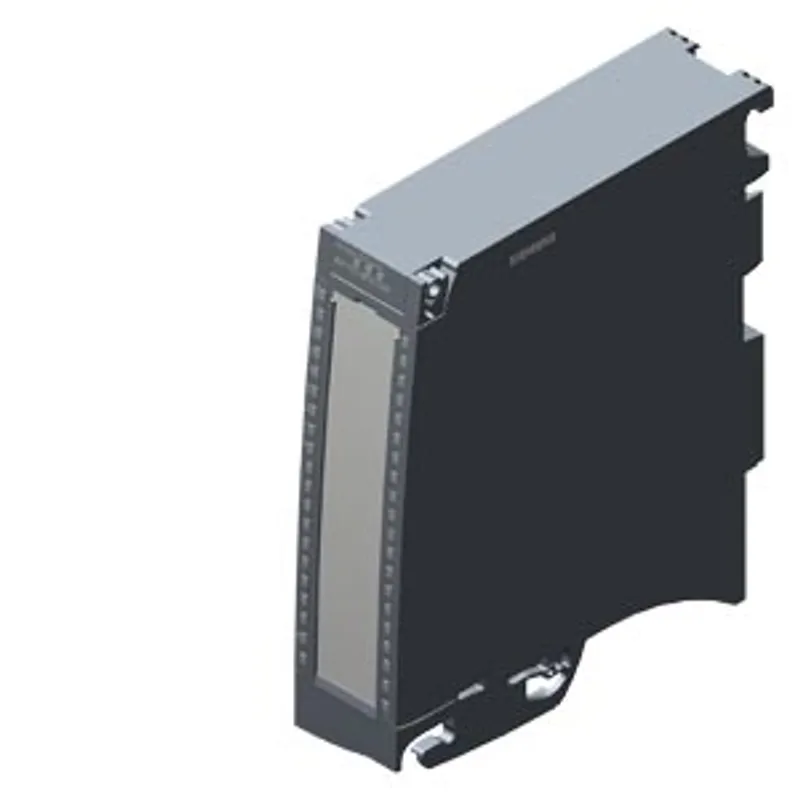

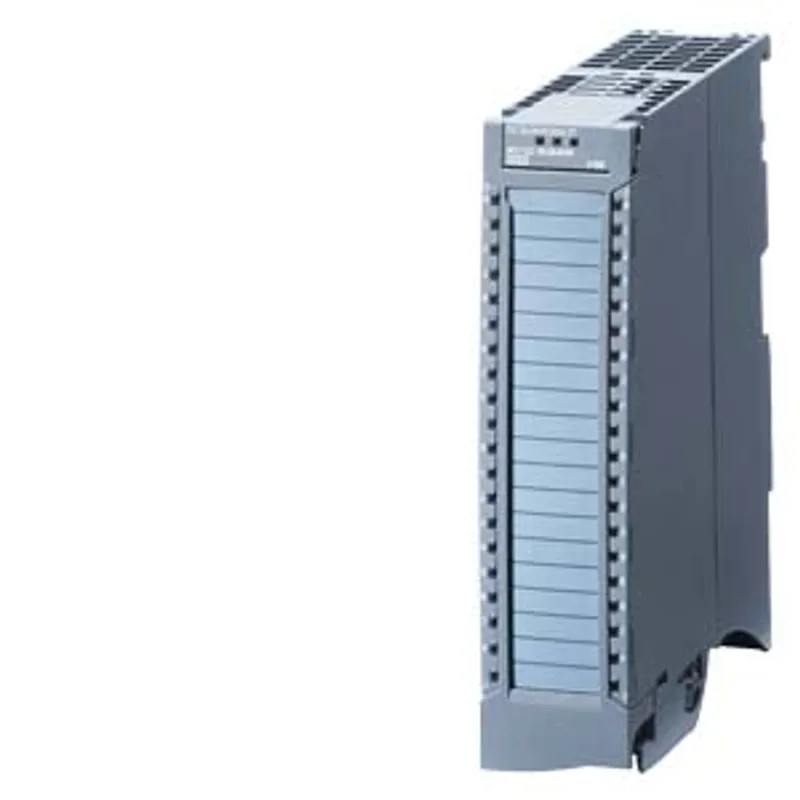

Siemens 6ES7522-1BF00-0AB0
SIMATIC S7-1500, digital output module DQ 8x24 V DC/2A HF; 8 channels in groups of 8; 8 A per group
- MPN
- 6ES7522-1BF00-0AB0
- Category
- SM 522 digital output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7522-1BF00-0AB0?
SIMATIC S7-1500, digital output module DQ 8x24 V DC/2A HF; 8 channels in groups of 8; 8 A per group; diagnostics; substitute value: 2 channels can be used for pulse width modulation(PWM) . the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately
Specifications
General information
| Product type designation | DQ 8x24VDC/2A HF |
| HW functional status | From FS03 |
| Firmware version | V2.2.0 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | No |
| Product function — Prioritized startup | Yes |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / - |
| Engineering with — STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| Engineering with — PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| Engineering with — PROFINET from GSD version/GSD revision | V2.3 / - |
| Operating mode — DQ | Yes |
| Operating mode — DQ with energy-saving function | Yes; with an application |
| Operating mode — PWM | Yes |
| Operating mode — Cam control (switching at comparison values) | No |
| Operating mode — Oversampling | No |
| Operating mode — MSO | Yes |
| Operating mode — Integrated operating cycle counter | Yes |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; through internal protection with 10 A per group |
Input current
| Current consumption, max. | 40 mA; 20 mA per group, no output is activated. |
Output voltage
| Rated value (DC) | 24 V |
Power
| Power consumption from the backplane bus | 0.9 W |
Power loss
| Power loss, typ. | 5.6 W; 6.8 W for PWM operation |

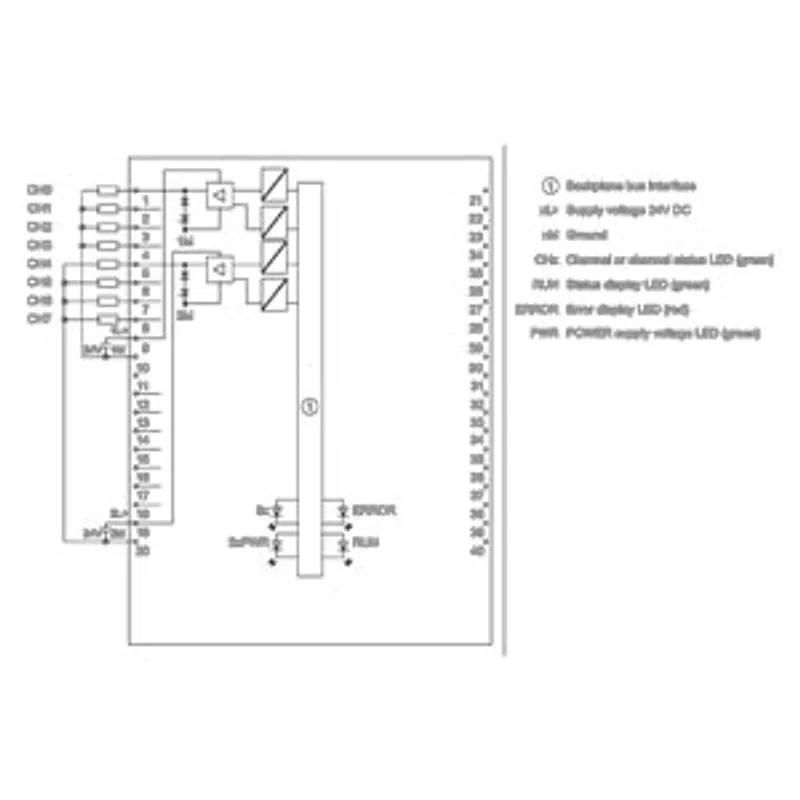

Digital outputs
| Type of digital output | Transistor |
| Number of digital outputs | 8 |
| Current-sourcing | Yes |
| Digital outputs, parameterizable | Yes |
| output type acc. to IEC 61131, type 2 | Yes |
| Short-circuit protection | Yes |
| Short-circuit protection — Response threshold, typ. | 3 A |
| Limitation of inductive shutdown voltage to | -17 V |
| Controlling a digital input | Yes |
| Digital output functions, parameterizable — Freely usable digital output | Yes |
| Digital output functions, parameterizable — PWM output | Yes; FS02 and FW V2.1.0 or higher |
| Digital output functions, parameterizable — PWM output — Number, max. | 2 |
| Digital output functions, parameterizable — PWM output — Cycle duration, parameterizable | Yes; 2 ... 100 ms continuous |
| Digital output functions, parameterizable — PWM output — ON period, min. | 0 % |
| Digital output functions, parameterizable — PWM output — ON period, max. | 100 % |
| Digital output functions, parameterizable — PWM output — Resolution of the duty cycle | 0.1 % |
| Digital output functions, parameterizable — PWM output — Minimum pulse duration | 300 µs |
| Switching capacity of the outputs — with resistive load, max. | 2 A |
| Switching capacity of the outputs — on lamp load, max. | 10 W |
| Load resistance range — lower limit | 12 Ω |
| Load resistance range — upper limit | 4 kΩ |
| Output voltage — for signal "1", min. | L+ (-0.8 V) |
| Output current — for signal "1" rated value | 2 A |
| Output current — for signal "1" permissible range, max. | 2.4 A; note derating specification for PWM operation |
| Output current — for signal "0" residual current, max. | 0.5 mA |
| Output delay with resistive load — "0" to "1", typ. | 80 µs |
| Output delay with resistive load — "0" to "1", max. | 100 µs |
| Output delay with resistive load — "1" to "0", typ. | 300 µs |
| Output delay with resistive load — "1" to "0", max. | 500 µs |
| Parallel switching of two outputs — for logic links | Yes |
| Parallel switching of two outputs — for uprating | No |
| Parallel switching of two outputs — for redundant control of a load | Yes |
| Switching frequency — with resistive load, max. | 100 Hz; With PWM operation: 500 Hz |
| Switching frequency — with inductive load, max. | 0.5 Hz; According to IEC 60947-5-1, DC-13; max. 500 Hz with PWM operation only with external circuit; see additional description in the manual |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs — Current per channel, max. | 2 A; see additional description in the manual |
| Total current of the outputs — Current per group, max. | 8 A; see additional description in the manual |
| Total current of the outputs — Current per module, max. | 16 A; see additional description in the manual |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Alarms — Diagnostic alarm | Yes |
| Alarms — Maintenance interrupt | Yes; maintenance alarm for switching cycle counter |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | No |
| Diagnoses — Short-circuit | Yes |
| Diagnoses — Group error | Yes |
| Diagnostics indication LED — RUN LED | Yes; green LED |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for channel diagnostics | Yes; red LED |
| Diagnostics indication LED — for module diagnostics | Yes; red LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels, in groups of | 4 |
| Potential separation channels — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | No |
| Suitable for safety-related tripping of standard modules | Yes; From FS03 |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 43.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 9.5 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 34.5 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.231 kg |
| Highest safety class achievable for safety-related tripping of standard modules — Performance level according to ISO 13849-1 | PL d |
| Highest safety class achievable for safety-related tripping of standard modules — Category according to ISO 13849-1 | Cat. 3 |
| Highest safety class achievable for safety-related tripping of standard modules — SIL acc. to IEC 62061 | SIL 2 |
| Highest safety class achievable for safety-related tripping of standard modules — remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
Security
| signed firmware update | Yes; Firmware V3.0.0 or higher |
| safely removing data | No |
| data integrity | Yes; Firmware V3.0.0 or higher |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C; From FS06 |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C; From FS06 |
| Ambient temperature during operation — vertical installation, max. | 40 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |

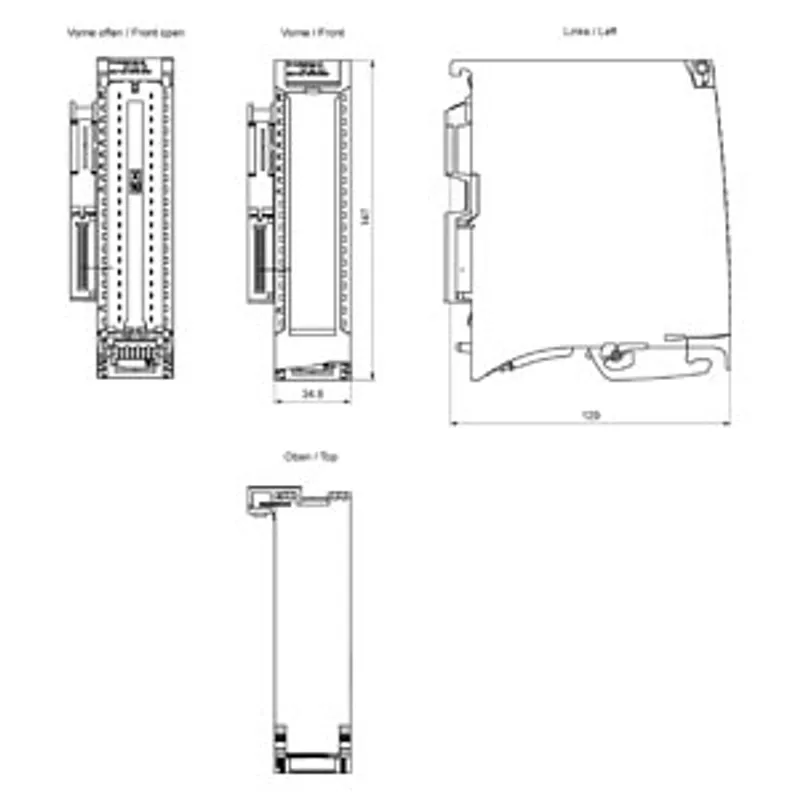

Dimensions
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
Weights
| Weight, approx. | 240 g |
