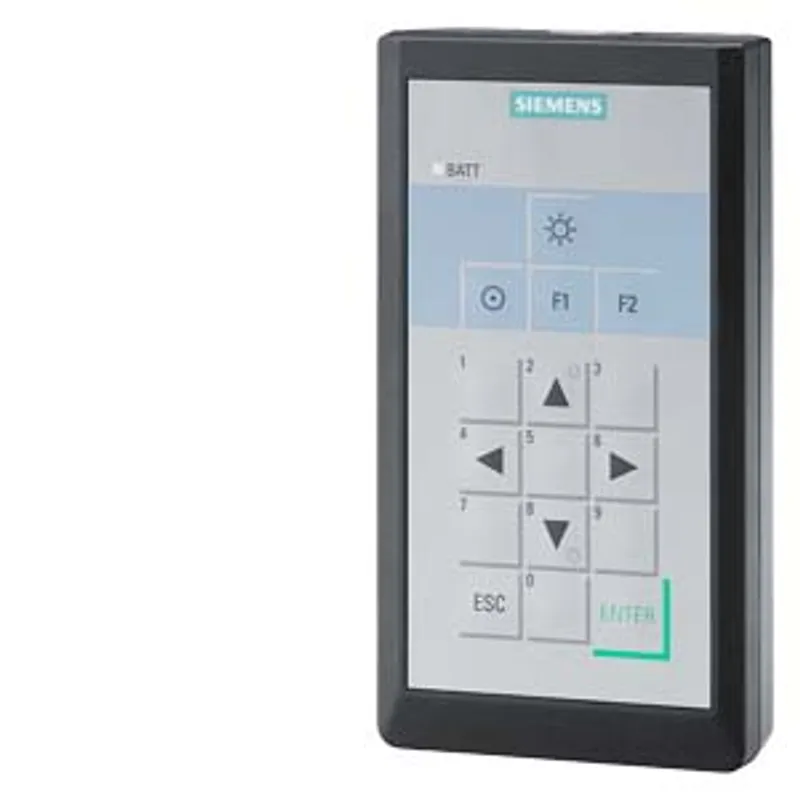

Siemens 6ES7292-0CA50-0AA0
SIMATIC S7-1200, EMS400S, IR-RC infrared remote control
- MPN
- 6ES7292-0CA50-0AA0
- Category
- SIMATIC EMS400S IR-RC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7292-0CA50-0AA0?
SIMATIC S7-1200, EMS400S, IR-RC infrared remote control
Specifications
Control elements
| Keyboard — Design | Membrane keyboard |
| Keyboard — Color of the buttons | gray |
| Keyboard — Function keys — Number of function keys | 4 |
| Keyboard — Function keys — Programmable | Yes |
| Keyboard — Number pad | Yes |
| Keyboard — status LED displays | Yes |
| Connection type — Range without cables | 10 m |
Supply voltage
| Rated value (DC) | 3 V; 2x AA batteries |
Battery
| Design — AA | Yes |
Interfaces
| Device-side interface | Infrared sender |
Degree and class of protection
| IP (at the front) | IP65 |
Standards, approvals, certificates
| CE mark | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Relative humidity — Operation, max. | 95 % |
Dimensions
| Width | 85 mm |
| Height | 152 mm |
| Depth | 35 mm |
Weights
| Weight, approx. | 200 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7292-0CA50-0AA0: frequently asked questions
When can 6ES7292-0CA50-0AA0 be shipped?
6ES7292-0CA50-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7292-0CA50-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7292-0CA50-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7292-0CA50-0AA0, subject to availability and destination.
