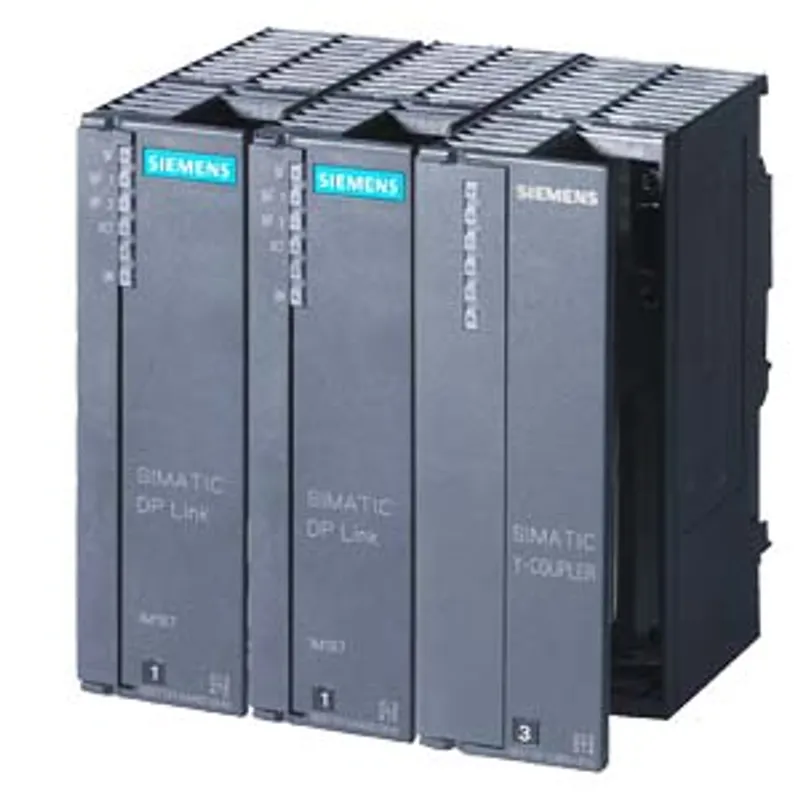

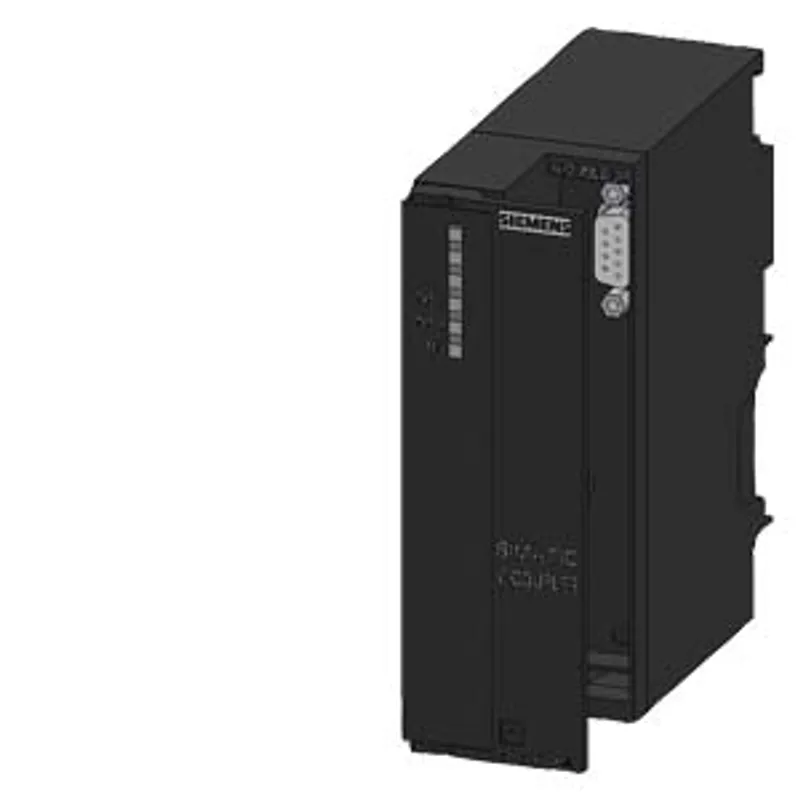

Siemens 6ES7197-1LB00-0XA0
SIMATIC S7, Y coupler for setting up a Y-Link for redundant controllers
- MPN
- 6ES7197-1LB00-0XA0
- Category
- CPU & Controllers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7197-1LB00-0XA0?
SIMATIC S7, Y coupler for setting up a Y-Link for redundant controllers
Specifications
Supply voltage
| Design of the power supply | via bus module |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption, max. | 300 mA |
Power loss
| Power loss, typ. | 1 W |
Interfaces
| PROFIBUS DP — Properties of the lower-level DP master system — Transmission rate, max. | 12 Mbit/s; 45.45 kbit/s to 12 Mbit/s |
| PROFIBUS DP — Properties of the lower-level DP master system — Termination of lower-level DP master system | active terminating resistor (Bus Terminator) |
| PROFIBUS DP — Properties of the lower-level DP master system — Use of OLM/OBT | Yes |
| PROFIBUS DP — Properties of the lower-level DP master system — Use of RS 485 repeaters, max. | 9 |
| PROFIBUS DP — Properties of the lower-level DP master system — Number of DP devices, max. | 31; 64 when using RS 485 repeaters or OLM/OBT |
| PROFIBUS DP — Requirements for DP master system — Length of parameter assignment telegram | 244 byte |
Protocols
| PROFIBUS DP | Yes |
| AS-Interface | No |
Interrupts/diagnostics/status information
| Status indicator | No |
| Alarms | No |
| Diagnostics function | Yes |
Potential separation
| to lower-level DP master system | Yes |
Degree and class of protection
| IP degree of protection | IP20 |

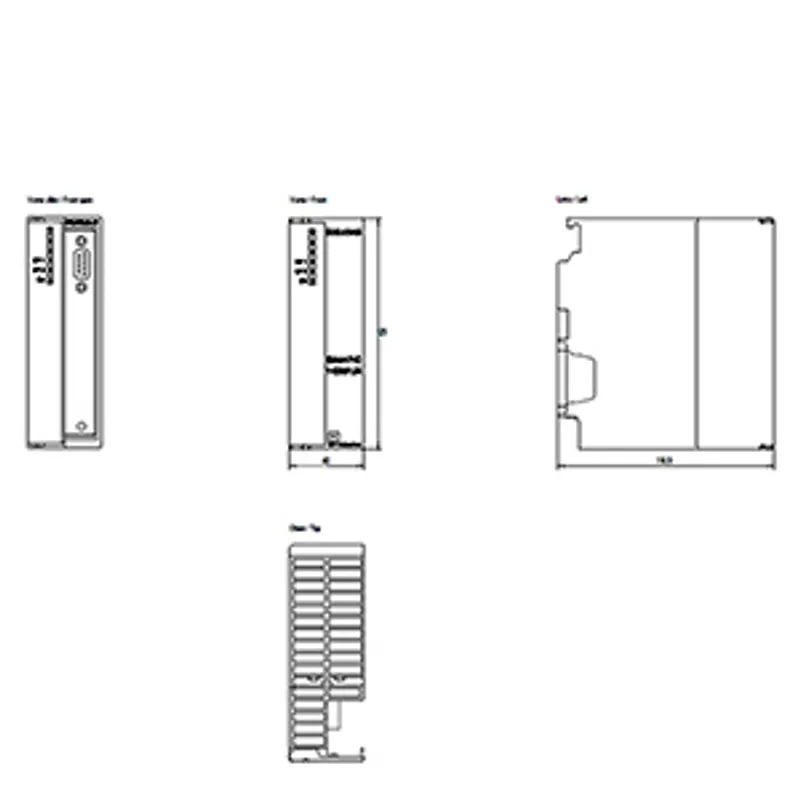

Dimensions
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
Weights
| Weight, approx. | 200 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7197-1LB00-0XA0: frequently asked questions
When can 6ES7197-1LB00-0XA0 be shipped?
6ES7197-1LB00-0XA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7197-1LB00-0XA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7197-1LB00-0XA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7197-1LB00-0XA0, subject to availability and destination.
