Siemens 6ES7193-6MT15-2BA0

BaseCarrier

MPN: 6ES7193-6MT15-2BA0
Category: BaseCarrier

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7193-6MT15-2BA0?

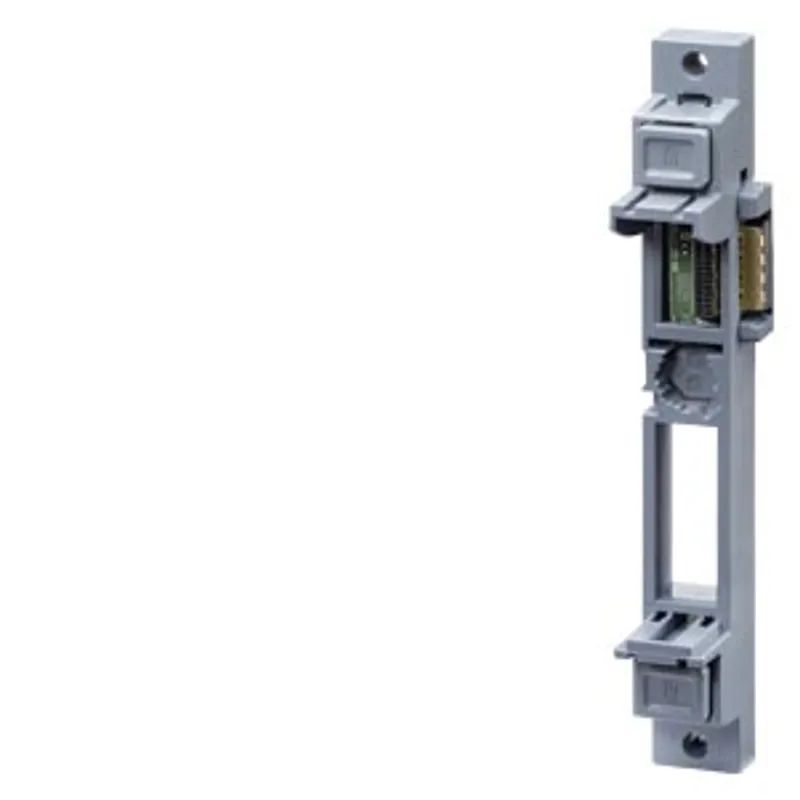

SIMATIC ET 200SP BaseCarrier, for 15 mm I/O modules, BU type A0, bridged to the left, pack quantity: 10 units, WxH: 15x 117 mm

Specifications

General information

Product type designation	BU type A0
HW functional status	from FS01

Installation type/mounting

PCB installation

Yes

Hardware configuration

Formation of potential groups — New potential group	No
Formation of potential groups — Potential group continued from the left	Yes
Slots — Number of slots	1; Type A0

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions

Width	15 mm
Height	117 mm
Depth	32 mm

Weights

Weight, approx.

5 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7193-6MT15-2BA0PDF

6ES7193-6MT15-2BA0: frequently asked questions

When can 6ES7193-6MT15-2BA0 be shipped?

6ES7193-6MT15-2BA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7193-6MT15-2BA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7193-6MT15-2BA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7193-6MT15-2BA0, subject to availability and destination.
