Siemens
6ES7193-6BP00-2BA0
Siemens 6ES7193-6BP20-0BB0
BaseUnit
- MPN
- 6ES7193-6BP20-0BB0
- Category
- BaseUnits
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7193-6BP20-0BB0?

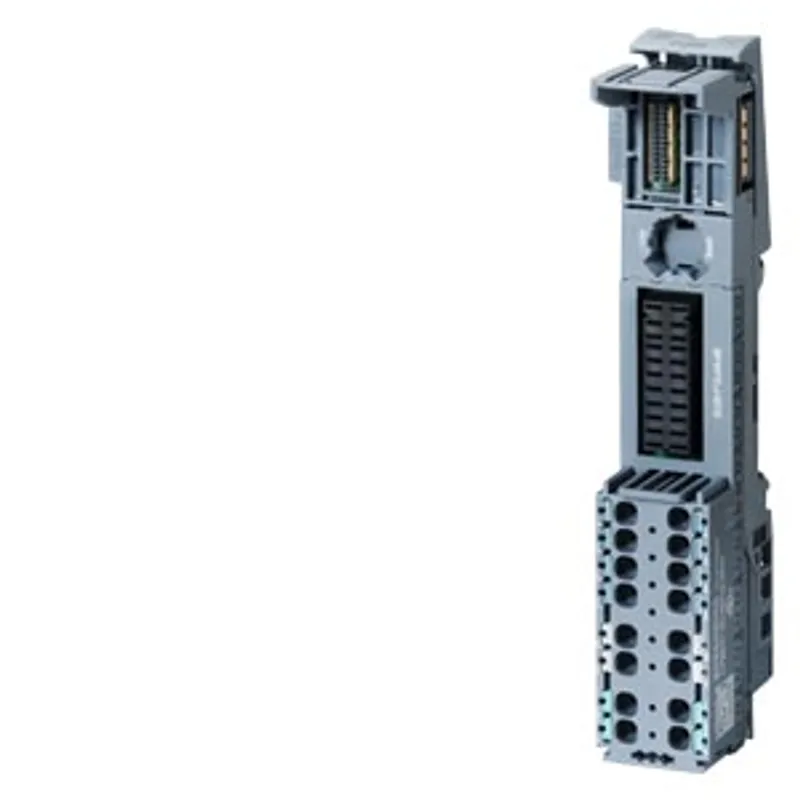

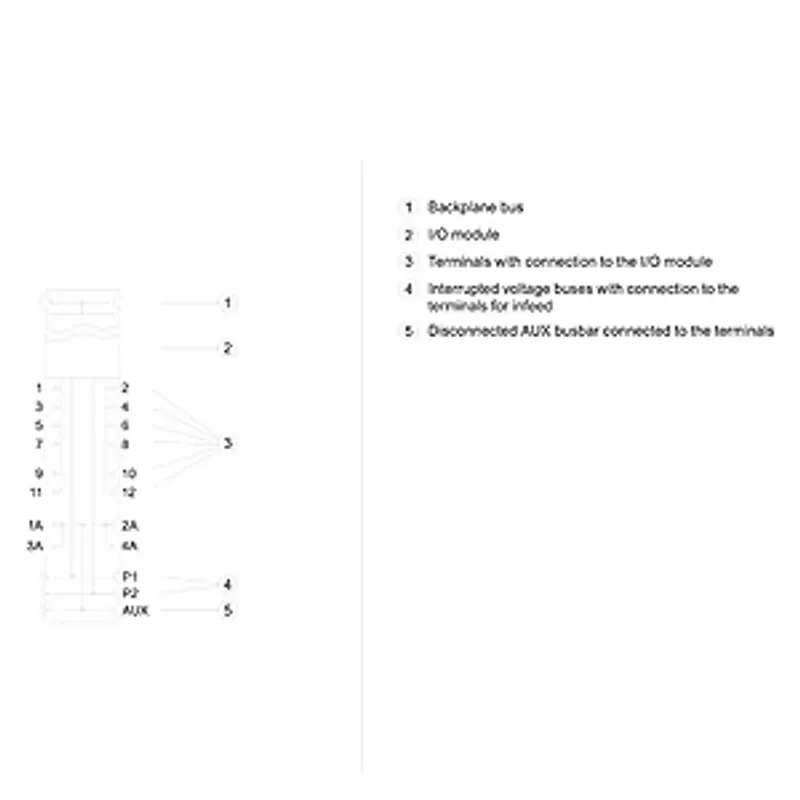

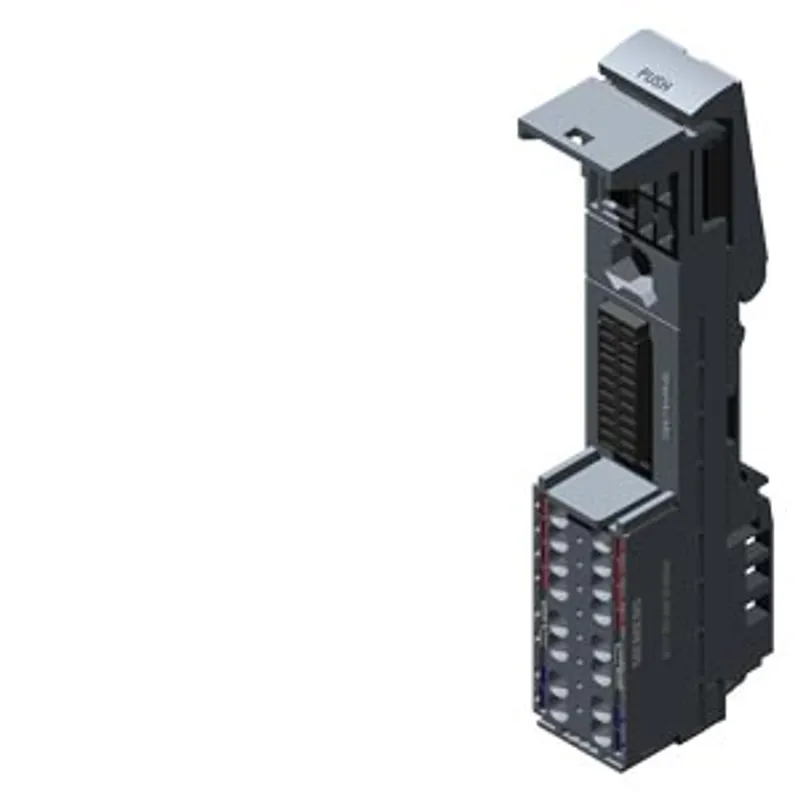

SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm
Specifications
General information
| Product type designation | BU type B0 |
| HW functional status | FS10 and higher |
Supply voltage
| Rated value (DC) | See manual |
| Rated value (DC) — For P1 and P2 bus | 24 V |
| Rated value (DC) — For AUX bus | 24 V; Equal potential group to P1/P2 bus or PE |
| Rated value (DC) — for process terminals | 24 V |
| Rated value (AC) | See manual |
| Rated value (AC) — For P1 and P2 bus | 230 V |
| Rated value (AC) — For AUX bus | 230 V; Equal potential group to P1/P2 bus or PE |
| Rated value (AC) — for process terminals | 230 V |
| Mains filter — Integrated | No |
Current carrying capacity
| up to 60 °C, max. | 10 A |
| For P1 and P2 bus, max. | 10 A |
| For AUX bus, max. | 10 A |
| For process terminals, max. | 5 A |
Hardware configuration
| Automatic encoding | Yes |
| Slots — Number of slots | 1 |
Potential separation
| between backplane bus and supply voltage | Yes |
| between process terminals and supply voltage | Yes; only for process terminals 1 to 8 |
| between power bus and supply voltage | No |
Isolation
| Isolation tested with | 3 100 V DC |
Standards, approvals, certificates
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 0.873 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 0.866 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 0 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -30 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| Absolute humidity — dew point, min. | -60 °C; suitable for dry room applications |
Accessories
| Color coding labels — for AUX terminals | CC81 to CC83 |
Connection method
| Terminals — Terminal type | Push-in terminal |
| Terminals — system-integrated shield connection | Yes; Optional |
| Terminals — Conductor cross-section, min. | 0.14 mm²; AWG 26 |
| Terminals — Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| Terminals — Number of process terminals to I/O module | 12; Pro slot |
| Terminals — Number of terminals to AUX bus | 0 |
| Terminals — Number of add-on terminals | 0 |
| Terminals — Number of terminals with connection to P1 and P2 bus | 0; Pro slot |

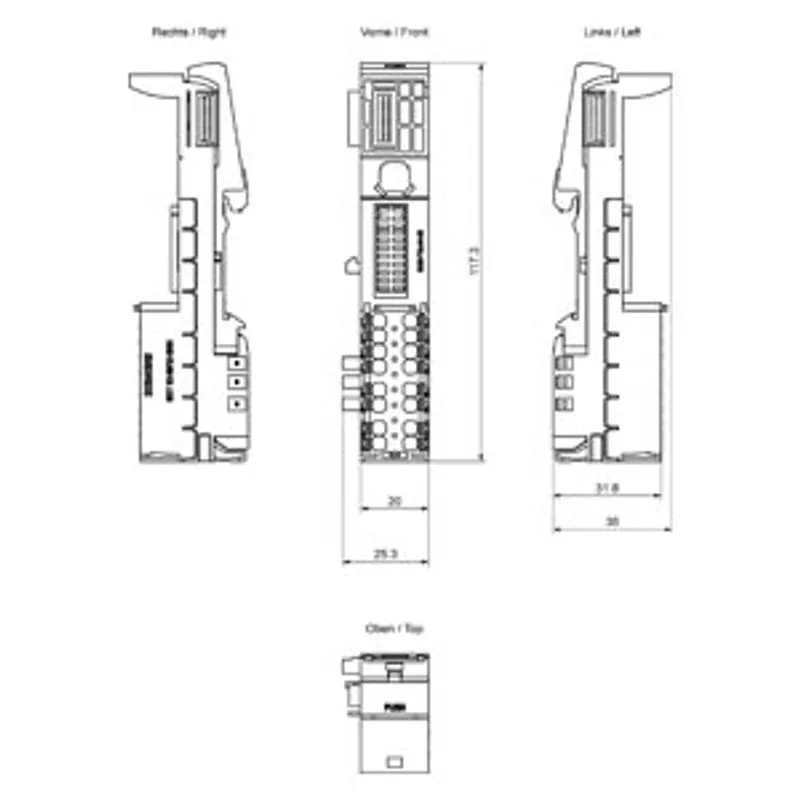

Dimensions
| Width | 20 mm |
| Height | 117 mm |
| Depth | 35 mm |
Weights
| Weight, approx. | 48 g |
