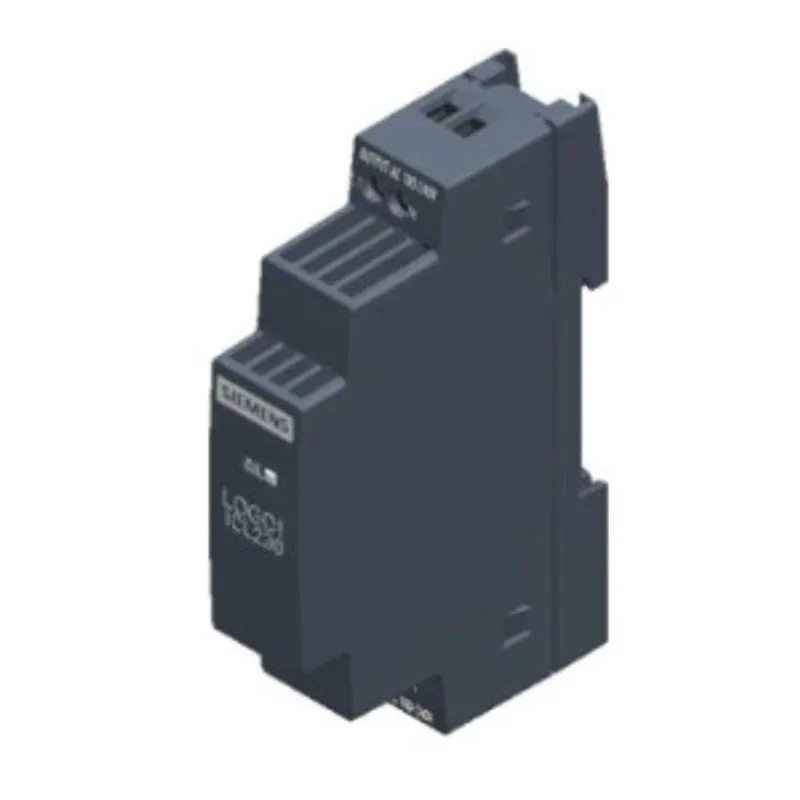

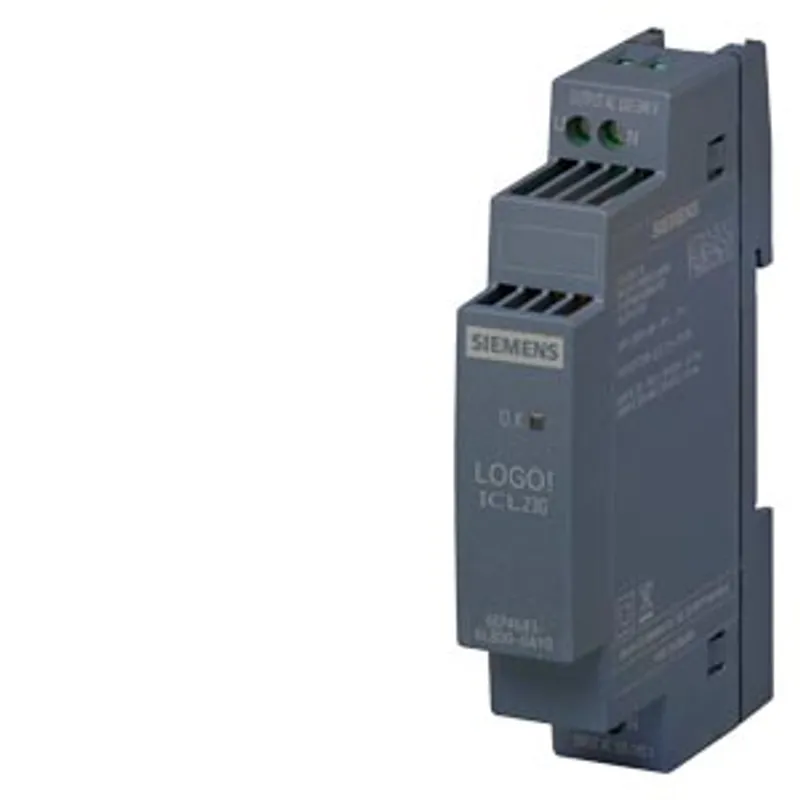

Siemens 6EP4683-6LB00-0AY0

LOGO! ICL230 Inrush current limiter Input: 100-240 V AC Output: 100-240 V AC/5 A

MPN
6EP4683-6LB00-0AY0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6EP4683-6LB00-0AY0?

LOGO! ICL230 Inrush current limiter Input: 100-240 V AC Output: 100-240 V AC/5 A

Specifications

General information

Technical Product Detail Pagehttps://i.siemens.com/1P6EP4683-6LB00-0AY0
product brand nameLOGO!
product type designationICL230
product designationSwitch-on current limitation
type of current supply100-240 V/5 A

input

type of the power supply network1-phase AC
phase number1
voltage curve at inputAC
supply voltage at AC — minimum rated value100 V
supply voltage at AC — maximum rated value240 V
supply voltage at AC — initial value85 V
supply voltage at AC — full-scale value264 V
wide range inputYes
current limitation of inrush current at 25 °C maximum10 A

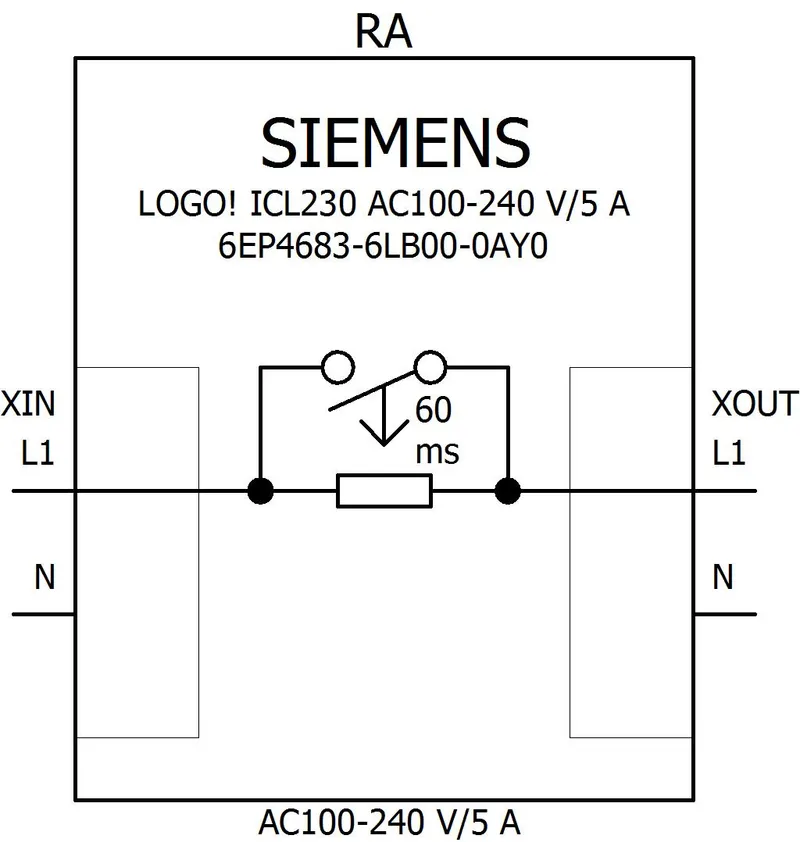

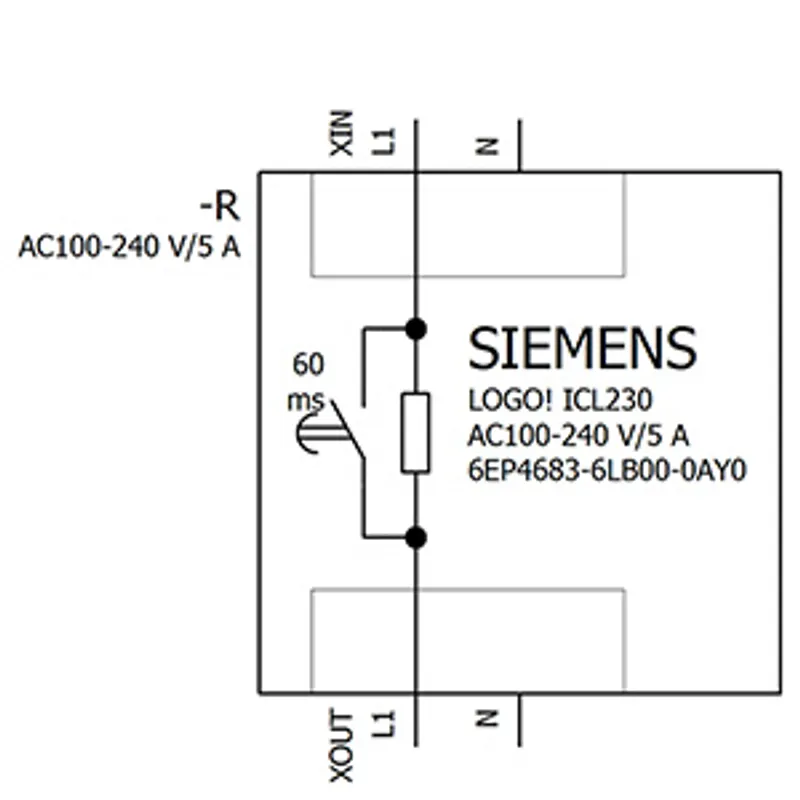

duration of inrush current limiting at 25 °C — typical60 ms
fuse protection typeOverload protection in case of error through non-reversible thermal fuse

output

voltage curve at outputaccording to the supply voltage
product function output voltage controlledNo
product function output voltage stabilizedNo
output voltage — at AC rated value100 - 240 V
output voltage — at AC85 ... 264
output voltage adjustableNo
display version for normal operationGreen LED
output current — rated range0 ... 5 A; Active current limitation for 60 ms to 10 A during switch-on.
bridging of equipmentNo

efficiency

power loss [W] — at rated output voltage for rated value of the output current typical1.5 W

protection and monitoring

design of short-circuit protectionmust be ensured by primary protection element
overcurrent overload capability — when switching onSwitching frequency max. 2 events per minute. Time-limited increased switching frequency once per hour for one minute (typ. 30 events per minute).

safety

galvanic isolation between input and outputNo
operating resource protection classClass II
protection class IPIP20

EMC

standard — for emitted interferenceEN 61000-6-3
standard — for mains harmonics limitation-
standard — for interference immunityEN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE markingYes
certificate of suitability — UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — EAC approvalYes
certificate of suitability — NEC Class 2No
type of certification — CB-certificateYes

standards, specifications, approvals hazardous environments

certificate of suitability — IECExNo
certificate of suitability — ATEXNo
certificate of suitability — ULhazloc approvalNo
certificate of suitability — FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)No
Marine classification association — French marine classification society (BV)No
Marine classification association — Det Norske Veritas (DNV)No
Marine classification association — Lloyds Register of Shipping (LRS)No

ambient conditions

ambient temperature — during operation-40 ... +70 °C; with natural convection
ambient temperature — during transport-40 ... +85 °C
ambient temperature — during storage-40 ... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal
type of electrical connection — at inputL1, N: 1 screw terminal each for 0.5 ... 2.5 mm²
type of electrical connection — at outputL1, N: 1 screw terminal each for 0.5 ... 2.5 mm²

mechanical data

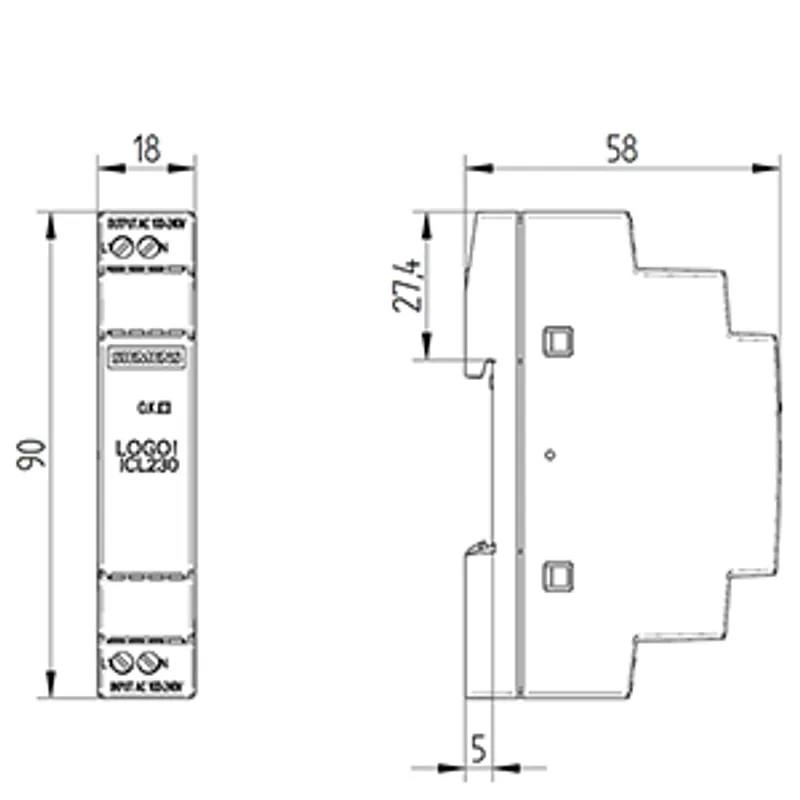

width × height × depth of the enclosure18 × 90 × 53 mm
installation width × mounting height18 mm × 130 mm
required spacing — top20 mm
required spacing — bottom20 mm
required spacing — left0 mm
required spacing — right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
fastening method — DIN-rail mountingYes
fastening method — S7 rail mountingNo
fastening method — wall mountingYes
housing can be lined upYes
net weight0.14 kg

further information internet links

internet link — to website: Industry Mallhttps://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to web page: power supplieshttps://siemens.com/sitop
internet link — to website: CAx-Download-Managerhttps://siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
