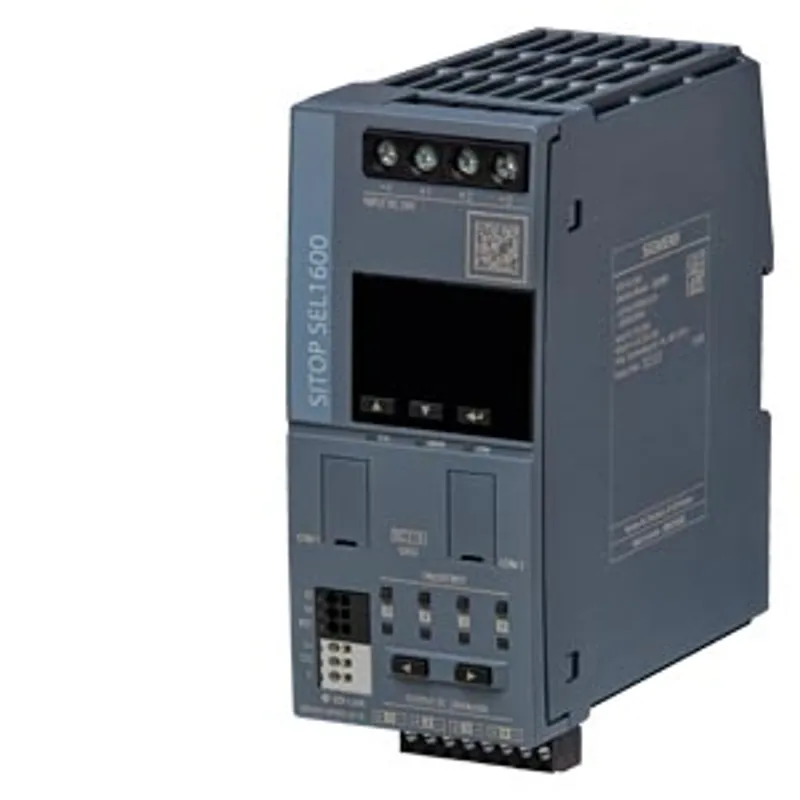

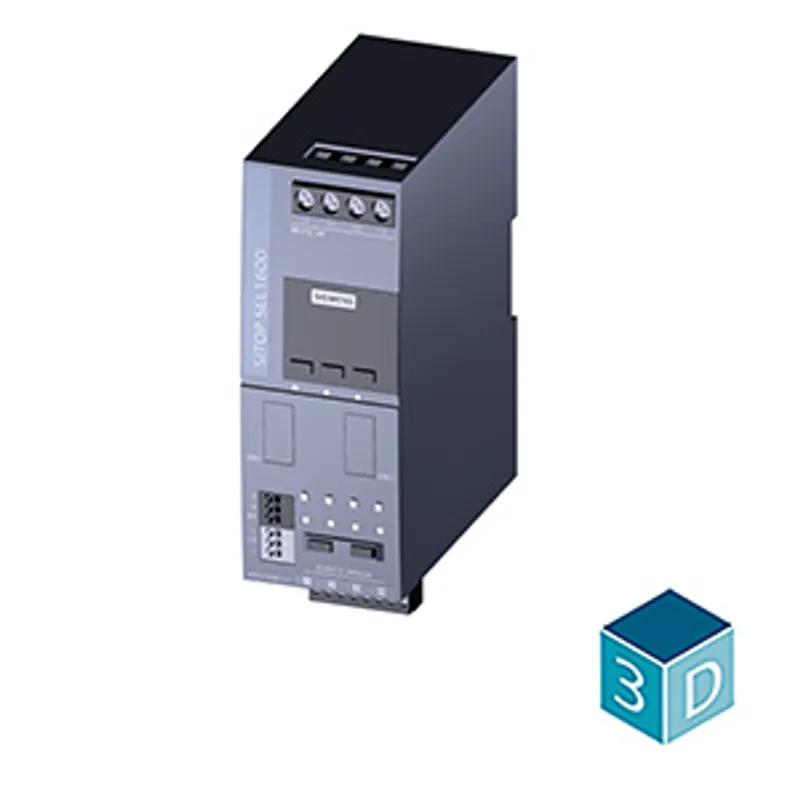

What is the Siemens 6EP4437-8FB00-4CY0?

SITOP SEL1600 4x10 A IOL basic module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A setting range: 0.5-10 A with IO-Link interface

Specifications

General information

Technical Product Detail Pagehttps://i.siemens.com/1P6EP4437-8FB00-4CY0
product brand nameSITOP
product type designationSEL1600
product designationSITOP Selectivity module
type of current supplyselectivity module, 4 x 10 A, basic module with IO-Link interface

input

type of the power supply networkControlled DC voltage
supply voltage at DC rated value24 V
input voltage at DC20.4 ... 30 V
overvoltage overload capability35 V
input current at rated input voltage 24 V rated value40 A; with expansion module max. 60 A

output

voltage curve at outputcontrolled DC voltage
formula for output voltageUe - approx. 0.25 V
relative overall tolerance of the voltage noteIn accordance with the supplying input voltage
number of outputs4; expandable up to 40 outputs via expansion modules
output current up to 60 °C per output rated value10 A; +60 ... +70 °C: Derating 2%/K
adjustable current response value current of the current-dependent overload release0.5 ... 10 A
type of response value settingvia display and IO-Link interface
response delay maximum10 s
product feature parallel switching of outputsYes; Two outputs located next to each other within one module
type of outputs connectionswitch-on of all outputs after power-up of the supply voltage > 20 V, for sequential switch-on, delay time of 25 ms, 100 ms, or "load-optimized" configurable via display and IO-Link interface, user-defined times can be configured via IO-Link interface

efficiency

efficiency in percent98 %
power loss [W] at rated output voltage for rated value of the output current typical10 W

switch-off characteristic

switching characteristic — of the excess currentswitch-off characteristic selectable: Ia = 1.0 ... 1.25 x set value, shutdown after typ. 10 s; Ia = 1.0 ... 1.5 x set value, shutdown after typ. 5 s; Ia = 1.0 ... 1.7 x set value, shutdown after typ. 1 s
switching characteristic — of the current limitationIa = 1.8 x set value, switch-off after typ. 10-100 ms
switching characteristic — of the immediate switch-offIout > set value and Vin < 20 V, switch-off after approx. 0.5 ms
design of the reset device/resetting mechanismvia buttons for each output and IO-Link interface
remote reset functionnon-isolated 24 V input (signal level "high" at > 15 V)

protection and monitoring

fuse protection type at input15 A per output (not accessible)
display version for normal operationdisplay and 3-color LEDs each for operational, fault and communication status as well as 3-color LEDs per output
design of the switching contact for signaling functionisolated common signaling contact (NO contact), contact rating capacity 30 V/0.1 A

interfaces

product function communication functionYes
design of the interfaceIO-Link
protocol is supported IO-Link protocolYes
IO-Link transfer rateCOM3 (230.4 kBaud)
number of IO-Link ports1
point-to-point cycle time between master and IO-Link device minimum5 ms
data volume — of the address range of the outputs with cyclical transfer for all IO-Link ports maximum25 byte
data volume — of the address range of the inputs with cyclical transfer for all IO-Link ports maximum29 byte
protocol between master and IO-Link device Version 1.1Yes

safety

galvanic isolation between input and output at switch-offNo
standard for safetyaccording to EN 62368-1
operating resource protection classClass III
protection class IPIP20
standard — for emitted interferenceEN 61000-6-3
standard — for interference immunityEN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE markingYes
certificate of suitability — UL approvalYes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259
certificate of suitability — UKCA markingYes
type of certification — CB-certificateYes
MTBF at 40 °C360 000 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECExNo
certificate of suitability — ATEXNo

standards, specifications, approvals marine classification

shipbuilding approvalYes
Marine classification association — Det Norske Veritas (DNV)Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total298.9 kg
global warming potential [CO2 eq] — during manufacturing24.2 kg
global warming potential [CO2 eq] — during operation274 kg
global warming potential [CO2 eq] — after end of life0.56 kg

ambient conditions

ambient temperature — during operation-40 ... +70 °C; with natural convection
ambient temperature — during transport-40 ... +85 °C
ambient temperature — during storage-40 ... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionScrew-type terminals and Push-in
type of electrical connection — at input-1, +1, +2, -2: one screw terminal each for 0.5 ... 16 mm²
type of electrical connection — at output+, -: each output 1 common screw plug-in terminal for 0.5 ... 2.5 mm²
type of electrical connection — for auxiliary contactsRST: push-in for 0.5 ... 1.5 mm²
type of electrical connection — for signaling contact13, 14: a push-in terminal each for 0.5 ... 1.5 mm²
removable terminal at inputNo
removable terminal at outputYes
design of the interface for communicationL+, C/Q, L- (IO-Link): 1 push-in terminal each for 0.2 ... 1.5 mm²

mechanical data

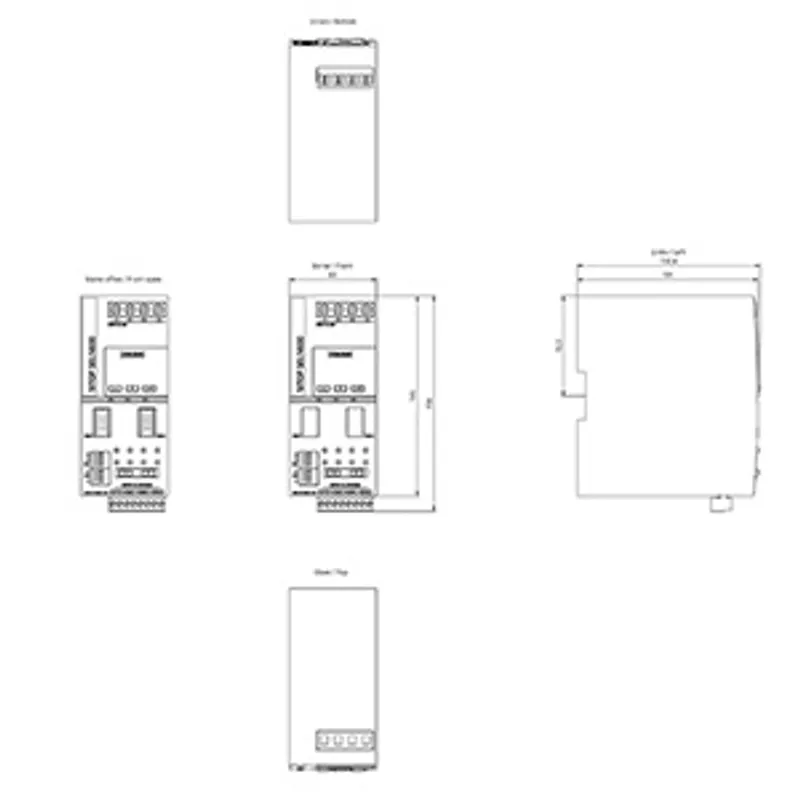

width × height × depth of the enclosure63 × 145 × 125 mm
installation width × mounting height63 mm × 225 mm
required spacing — top40 mm
required spacing — bottom40 mm
required spacing — left0 mm
required spacing — right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
fastening method — DIN-rail mountingYes
fastening method — S7 rail mountingNo
fastening method — wall mountingNo
housing can be lined upYes
net weight0.4 kg

accessories

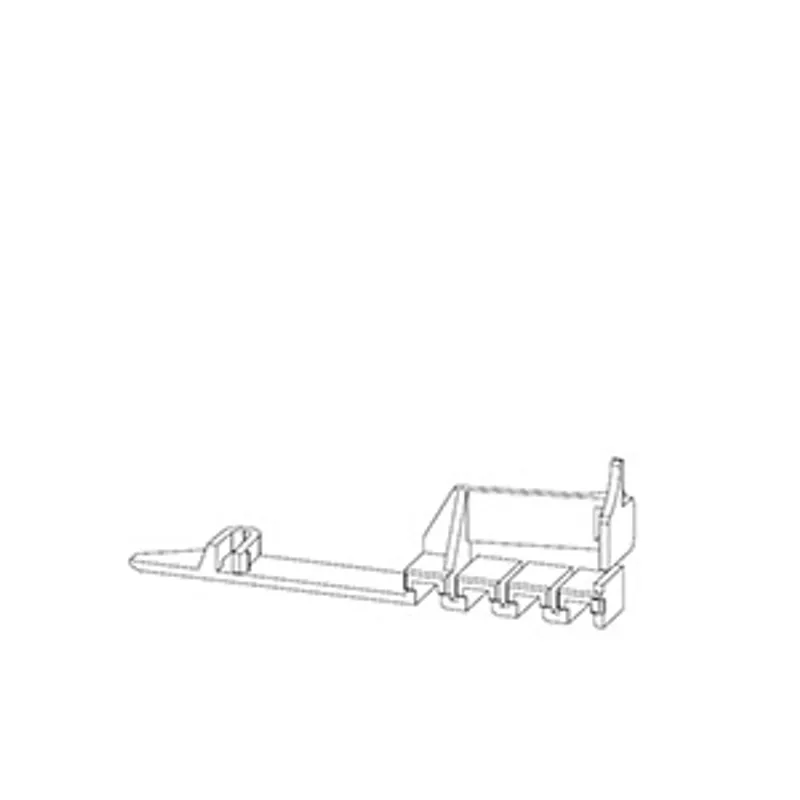

electrical accessories6EP4990-8KK10-0XU0: SITOP SEL1600 Connection Set for connection to PSU8400 20A, contents: COM connecting cable and input wiring bracket; 6EP4990-8KK20-0XU0: SITOP SEL1600 Connection Set for connection to PSU8400 40A, contents: COM connecting cable and input wiring bracket; 6EP4990-8KK30-0XU0: SITOP SEL1600 Connection Set for connection of two power supplies PSU8400, contents: 2x short and 1x long COM connecting cable

further information internet links

internet link — to website: Industry Mallhttps://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to web page: power supplieshttps://siemens.com/sitop
internet link — to website: CAx-Download-Managerhttps://siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com
identification linkYes; acc. to IEC 61406-1:2022

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
