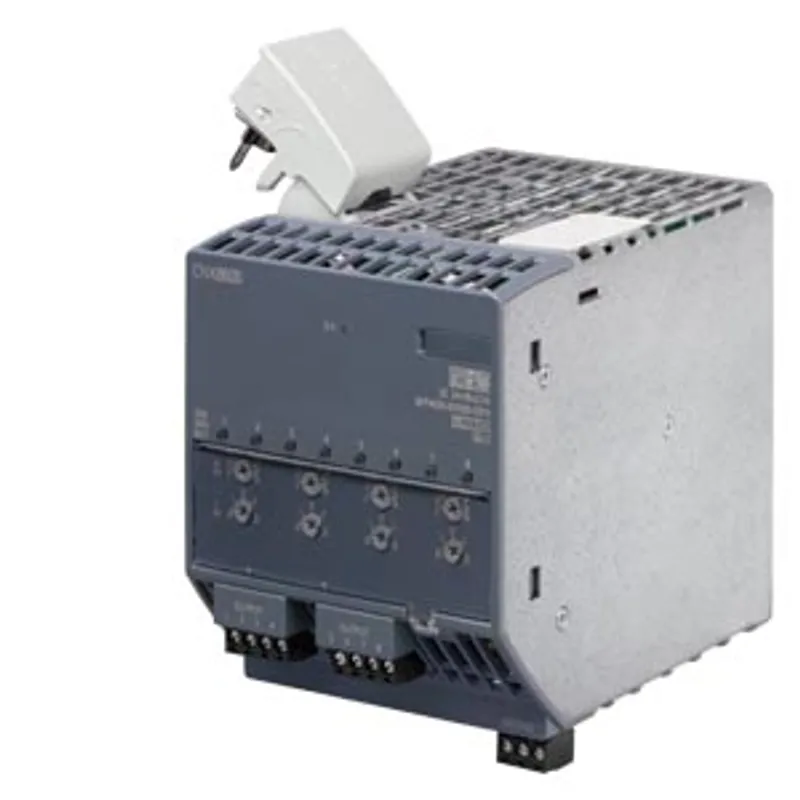

Siemens 6EP4436-8XB00-0DY0
SITOP CNX8600/8X2.5A SITOP CNX8600 8x2.5 A expansion module for PSU8600 output: 24 V DC/8x 2.5 A outputs…
- MPN
- 6EP4436-8XB00-0DY0
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP4436-8XB00-0DY0?
SITOP CNX8600/8X2.5A SITOP CNX8600 8x2.5 A expansion module for PSU8600 output: 24 V DC/8x 2.5 A outputs according to NEC class 2
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP4436-8XB00-0DY0 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP4436-8XB00-0DY0 |
| product brand name | SITOP |
| product type designation | CNX8600 |
| product designation | Extension module SITOP CNX8600 |
| type of current supply | 8x 2.5 A |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| number of outputs | 8 |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 2 at DC rated value | 24 V |
| output voltage — at output 3 at DC rated value | 24 V |
| output voltage — at output 4 at DC rated value | 24 V |
| output voltage — at output 5 at DC rated value | 24 V |
| output voltage — at output 6 at DC rated value | 24 V |
| output voltage — at output 7 at DC rated value | 24 V |
| output voltage — at output 8 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 5 ... 24 V |
| output voltage — at output 2 at DC | 5 ... 24 |
| output voltage — at output 3 at DC | 5 ... 24 |
| output voltage — at output 4 at DC | 5 ... 24 |
| output voltage — at output 5 at DC | 5 ... 24 |
| output voltage — at output 6 at DC | 5 ... 24 |
| output voltage — at output 7 at DC | 5 ... 24 |
| output voltage — at output 8 at DC | 5 ... 24 |
| output voltage adjustable | Yes; via potentiometer or IE/PN interface |
| adjustable output voltage | 4 ... 28 V; Derating > 24 V: 4%/V; max. 60 W per output |
| relative overall tolerance of the voltage | 3 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.2 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 0.1 % |
| residual ripple — maximum | 100 mV |
| voltage peak — maximum | 200 mV |
| display version for normal operation | 3-color LED for operating state module; 3-color LED per output for operating state output |
| type of signal at output | Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK" at power supply unit PSU8600 |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 1.5 s; Without on-delay of the outputs |
| type of outputs connection | simultaneous switch-on of all outputs after device power-up or delay time of 25 ms, 100 ms, or "load-optimized" for sequential switch-on of the outputs via DIP switch to PSU8600 power supply configurable |
| voltage increase time of the output voltage — maximum | 500 ms |
| output current — rated value | 20 A |
| output current — per output | 2.5 A |
| output current — at output 1 rated value | 2.5 A |
| output current — at output 2 rated value | 2.5 A |
| output current — at output 3 rated value | 2.5 A |
| output current — at output 4 rated value | 2.5 A |
| output current — at output 5 rated value | 2.5 A |
| output current — at output 6 rated value | 2.5 A |
| output current — at output 7 rated value | 2.5 A |
| output current — at output 8 rated value | 2.5 A |
| output current — rated range | 0 ... 20 A; Outputs meet requirements to NEC Class 2; an increase of the maximum output power of the SITOP PSU8600 overall system is not possible over the SITOP CNX8600 expansion module |
| supplied active power typical | 480 W |
| parallel switching of outputs | No |
| bridging of equipment | No |
efficiency
| efficiency in percent | 97 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 15 W |
closed-loop control
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 0.4 % |
| setting time — maximum | 10 ms |
protection and monitoring
| design of the overvoltage protection | max. 35 V (max. 500 ms) |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | electronic overload cut-off |
| adjustable current response value current of the current-dependent overload release | 0.5 ... 2.5 A |
| type of response value setting | via potentiometer or IE/PN interface |
| switching characteristic — of the excess current | Ia >1.0...<1.5 x Ia threshold for 5 s permissible; Ia limit (= 1.5 x Ia threshold) for 200 ms permissible |
| display version for overload and short circuit | 3-color LED for operating state module; 3-color LED per output for operating state output |
| design of the reset device/resetting mechanism | via sensor per output or IE/PN interface |
| remote reset function | non-isolated 24 V input (signal level "high" at > 15 V) at power supply PSU8600 |
interfaces
| product function communication function | Yes |
| design of the interface | Ethernet/PROFINET via power supply unit PSU8600 |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class III |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 55022 Class B |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability — NEC Class 2 | Yes; according to UL1310 |
| certificate of suitability — SEMI F47 | Yes |
| type of certification — CB-certificate | Yes |
| MTBF at 40 °C | 327 369 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 469 kg |
| global warming potential [CO2 eq] — during manufacturing | 56.3 kg |
| global warming potential [CO2 eq] — during operation | 411 kg |
| global warming potential [CO2 eq] — after end of life | 1.31 kg |
ambient conditions
| ambient temperature — during operation | -25 ... +60 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | Plug-in terminals with screwed connection |
| at output | 1, 2, 3, 4, 5, 6, 7, 8: Two plug-in terminals (1…4 and 5…8) with 1 screwed connection each for 0.2 ... 2.5 mm²; Ground: Plug-in terminal with 3 screwed connections for 0.2 ... 2.5 mm² |
| removable terminal at output | Yes |
| suitability for interaction modular system | Yes |
| type of connection to system components | Via integrated connector |
mechanical data
| width × height × depth of the enclosure | 100 × 125 × 150 mm |
| installation width × mounting height | 100 mm × 225 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 50 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 1.29 kg |
accessories
| mechanical accessories | Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20 |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
