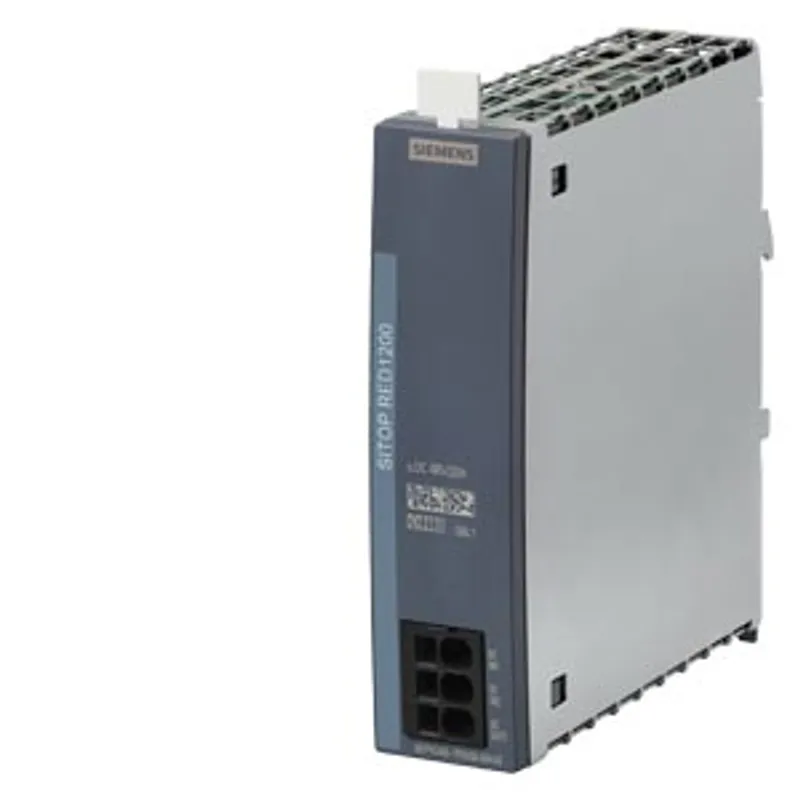

Siemens 6EP4346-7RB00-0AX0
SITOP RED1200/Red.M./24/48VDC/2X10A SITOP RED1200 redundancy module Input/output: 24/48 V DC/20 A Suitable…
- MPN
- 6EP4346-7RB00-0AX0
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP4346-7RB00-0AX0?
SITOP RED1200/Red.M./24/48VDC/2X10A SITOP RED1200 redundancy module Input/output: 24/48 V DC/20 A Suitable for decoupling two SITOP power supplies with max. 10 A output current each
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP4346-7RB00-0AX0 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP4346-7RB00-0AX0 |
| product brand name | SITOP |
| product type designation | RED1200 |
| product designation | Redundancy module |
input
| type of the power supply network | DC voltage |
| voltage curve at input | DC |
| supply voltage at DC | 12 ... 48 V |
| input voltage at DC | 10 ... 58 V |
output
| voltage curve at output | Controlled DC voltage |
| number of outputs | 1 |
| output voltage at DC rated value | 24 V |
| formula for output voltage | Vin - approx. 0.6 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 12 ... 48 V |
| output voltage adjustable | No |
| output current — rated value | 20 A |
| bridging of equipment | No |
efficiency
| efficiency in percent | 97.5 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 12 W |
| power loss [W] — during no-load operation maximum | 0.1 W |
safety
| galvanic isolation between input and output | No |
| operating resource protection class | Class III |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 61000-6-3 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability — NEC Class 2 | No |
| MTBF at 40 °C | 8 100 000 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | No |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 349.9 kg |
| global warming potential [CO2 eq] — during manufacturing | 20.5 kg |
| global warming potential [CO2 eq] — during operation | 328.8 kg |
| global warming potential [CO2 eq] — after end of life | 0.48 kg |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | push-in terminals |
| at input | In1, In2: each for 0.2 ... 10 mm² |
| at output | Out1: 0.2 ... 10 mm² |
mechanical data
| width × height × depth of the enclosure | 35 × 135 × 125 mm |
| installation width × mounting height | 35 mm × 225 mm |
| required spacing — top | 45 mm |
| required spacing — bottom | 45 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
| net weight | 0.47 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
