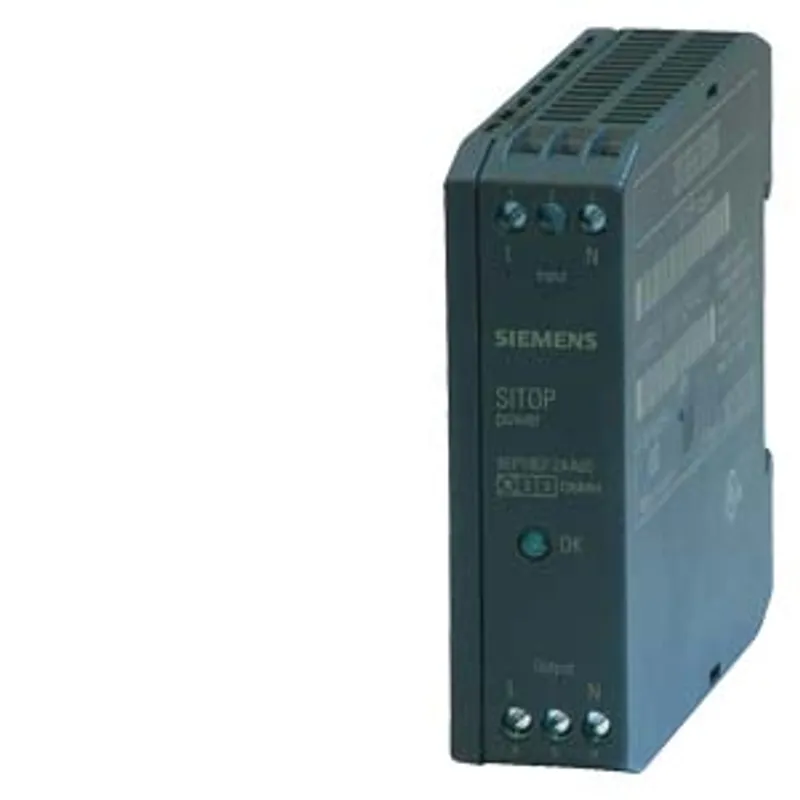

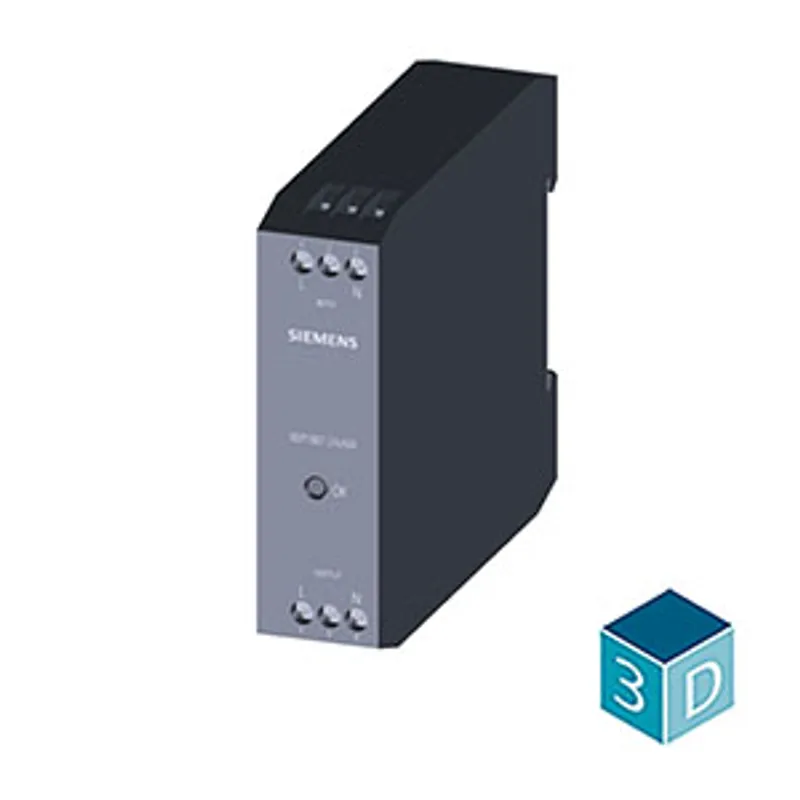

Siemens 6EP1967-2AA00

SITOP Switch on current limiter Ballast unit for SITOP Power supplies input: 100-480 V AC

MPN: 6EP1967-2AA00
Category: Inrush current limiter

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6EP1967-2AA00?

SITOP Switch on current limiter Ballast unit for SITOP Power supplies input: 100-480 V AC, 10 A max output: 100-480 V AC, 10 A max

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP1967-2AA00
product brand name	SITOP
product type designation	ICL
product designation	Switch-on current limitation
type of current supply	100-480 V/10 A

input

type of the power supply network	1-phase, 2-phase and 3-phase AC
phase number	1
voltage curve at input	AC
supply voltage at AC — minimum rated value	100 V
supply voltage at AC — maximum rated value	480 V
supply voltage at AC — initial value	85 V
supply voltage at AC — full-scale value	575 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
current limitation of inrush current at 25 °C maximum	10 A
duration of inrush current limiting at 25 °C — typical	120 ms
fuse protection type in the feeder	Circuit breaker max. 10 A

output

voltage curve at output	according to the supply voltage
product function output voltage controlled	No
product function output voltage stabilized	No
number of outputs	1
output voltage — at AC rated value	100 - 480 V
output voltage — at AC	85 ... 575
output voltage adjustable	No
display version for normal operation	Green LED
output current — rated range	0 ... 10 A
bridging of equipment	No

efficiency

power loss [W] — at rated output voltage for rated value of the output current typical

1.5 W

protection and monitoring

property of the output short-circuit proof	No
design of short-circuit protection	must be ensured by primary miniature circuit breaker
overcurrent overload capability — when switching on	Switching frequency max. 1 event per minute

safety

galvanic isolation between input and output	No
operating resource protection class	Class II
protection class IP	IP20

EMC

standard — for emitted interference	EN 61000-6-3
standard — for mains harmonics limitation	-
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — EAC approval	Yes
certificate of suitability — NEC Class 2	No
type of certification — CB-certificate	No

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	No
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No

ambient conditions

ambient temperature — during operation	-25 ... +60 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
type of electrical connection — at input	L, N: 1 screw terminal each for 0.5 ... 2.5 mm²
type of electrical connection — at output	L, N: 1 screw terminal each for 0.5 ... 2.5 mm²

mechanical data

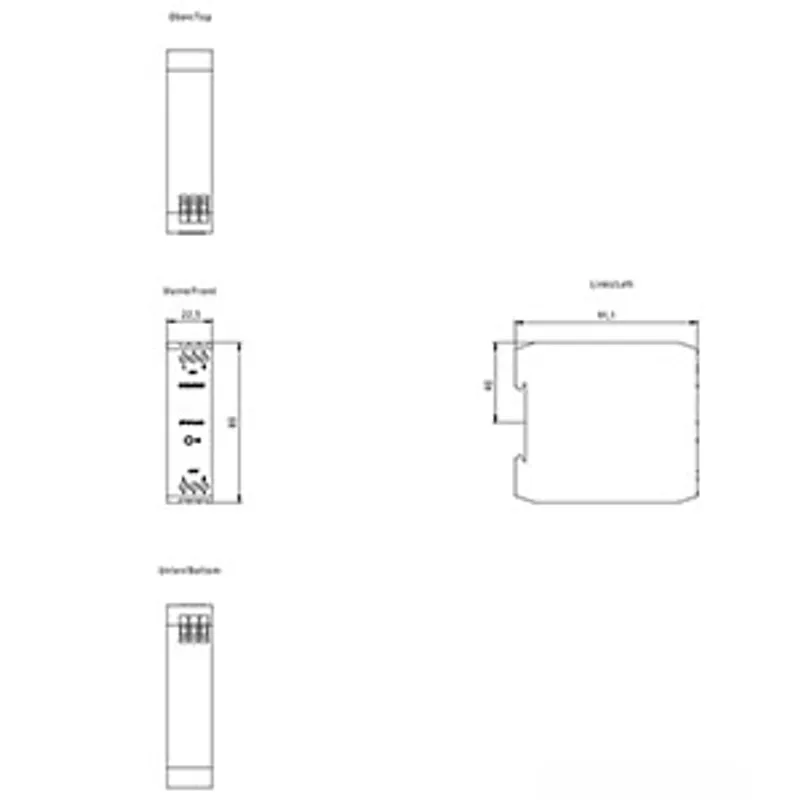

width × height × depth of the enclosure	22.5 × 80 × 91 mm
installation width × mounting height	22.5 mm × 180 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
fastening method — DIN-rail mounting	Yes
fastening method — S7 rail mounting	No
fastening method — wall mounting	No
housing can be lined up	Yes
net weight	0.12 kg

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP1967-2AA00PDF
