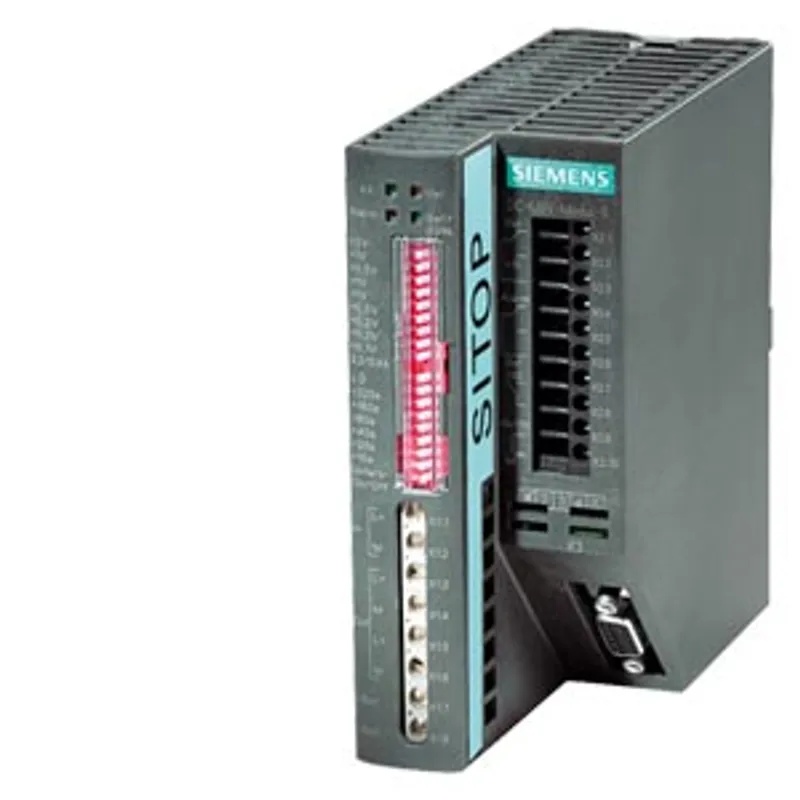

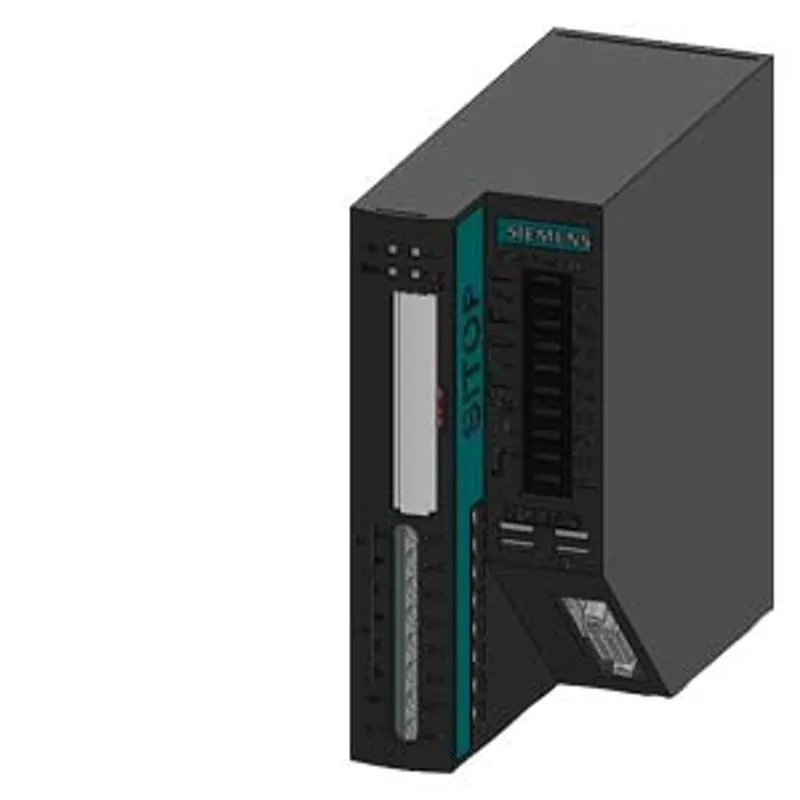

What is the Siemens 6EP1931-2EC31?

SITOP DC UPS module 24 V/15 A uninterruptible power supply with serial interface input: 24 V DC/16 A output: 24 V DC/15 A

Specifications

General information

Technical Product Detail Pagehttps://i.siemens.com/1P6EP1931-2EC31
product brand nameSITOP
product type designationDC UPS
type of current supplyDC UPS 24 V/15 A

input

voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC22 ... 29 V
adjustable response value voltage for buffer connection preset22.5 V
adjustable response value voltage for buffer connection22 ... 25.5 V; Adjustable in 0.5 V increments
input current at rated input voltage 24 V rated value15 A; + approx. 1 A with empty battery

memory

type of energy storagewith batteries
product function DC-UPS modularly expandableYes
design of the mains power cut bridging-connectionDependent on connected battery and load current, see selection table battery module and mains buffering times as well as the relevant important information notes!

output

output voltage — in normal operation at DC rated value24 V
output voltage — in buffering mode at DC rated value24 V
formula for output voltageVin - approx. 0.5 V
startup delay time typical1 s
voltage increase time of the output voltage typical60 ms
output voltage in buffering mode at DC19 ... 28.5 V
output current — rated value15 A
output current — in normal operation0 ... 15 A
output current — in buffering mode0 ... 15 A
peak current15.7 A
property of the output short-circuit proofYes
charging current0.35 A, 0.7 A

efficiency

efficiency in percent — at rated output voltage for rated value of the output current typical96.2 %
efficiency in percent — in case of operation on rechargeable battery typical96 %
power loss [W] — at rated output voltage for rated value of the output current typical14 W
power loss [W] — in case of operation on rechargeable battery typical15 W
supplied active power typical360 W

protection and monitoring

product function — reverse polarity protection against energy storage unit polarity reversalYes
product function — reverse polarity protection against input voltage polarity reversalYes
display version — for normal operationNormal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set at the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with approx. 0.25 Hz, floating changeover contact "Alarm/Bat" switching with approx. 0.25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A or AC 30 V /1 A
display version — in buffering modeBuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20.4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed

interfaces

product component PC interfaceYes
product function communication functionNo
design of the interfaceserial

safety

galvanic isolation between input and outputNo
operating resource protection classClass III
protection class IPIP20
standard — for emitted interferenceEN 55022 Class B
standard — for interference immunityEN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE markingYes
certificate of suitability — UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — EAC approvalYes
MTBF at 40 °C725 689 h

standards, specifications, approvals marine classification

shipbuilding approvalYes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)Yes
Marine classification association — Det Norske Veritas (DNV)Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total399.2 kg
global warming potential [CO2 eq] — during manufacturing18.5 kg
global warming potential [CO2 eq] — during operation380.3 kg
global warming potential [CO2 eq] — after end of life0.34 kg

ambient conditions

ambient temperature — during operation-25 ... +60 °C; with natural convection
ambient temperature — during transport-40 ... +85 °C
ambient temperature — during storage-40 ... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

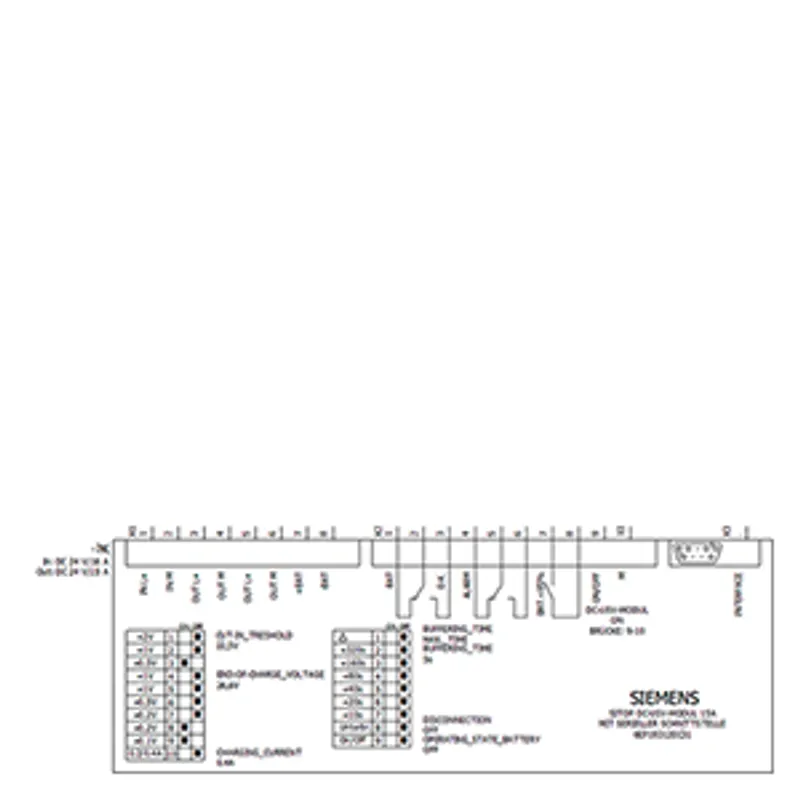

connection method

type of electrical connectionscrew terminal
type of electrical connection — at input24 V DC: 2 screw terminals for 1 ... 4 mm²/17 ... 11 AWG
type of electrical connection — at output24 V DC: 4 screw terminals for 1 ... 4 mm²/17 ... 11 AWG
type of electrical connection — for rechargeable battery module24 V DC: 2 screw terminals for 1 ... 4 mm²/17 ... 11 AWG
type of electrical connection — for control circuit and status message10 screw terminals for 0.5 ... 2.5 mm²/20 ... 13 AWG

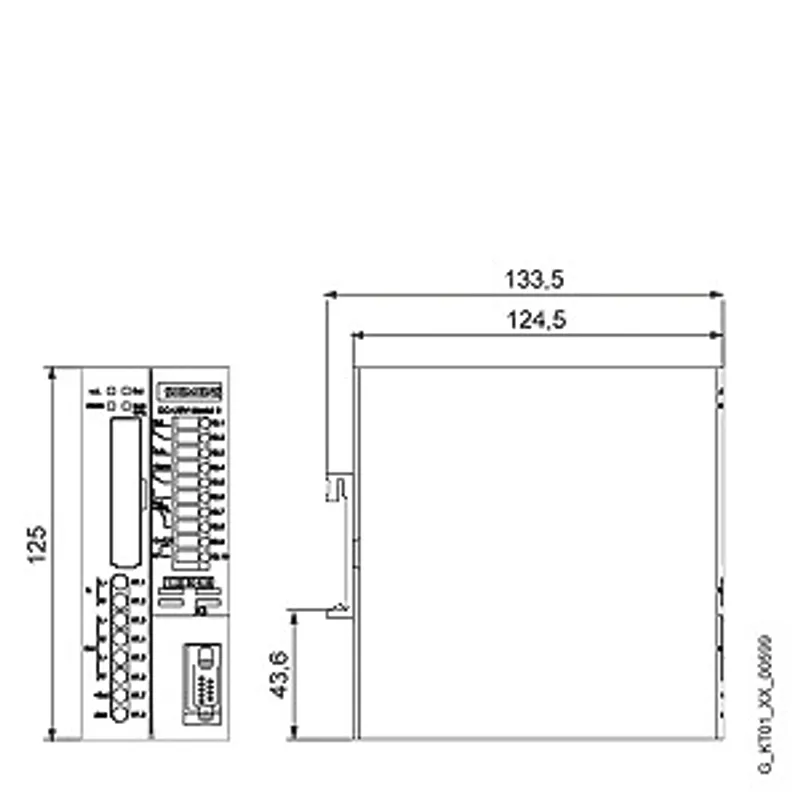

mechanical data

width × height × depth of the enclosure50 × 125 × 125 mm
installation width × mounting height50 mm × 225 mm
required spacing — top50 mm
required spacing — bottom50 mm
required spacing — left0 mm
required spacing — right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
fastening method — DIN-rail mountingYes
fastening method — S7 rail mountingNo
fastening method — wall mountingNo
housing can be lined upYes
net weight0.45 kg

accessories

electrical accessoriesBattery module

further information internet links

internet link — to website: Industry Mallhttps://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to web page: power supplieshttps://siemens.com/sitop
internet link — to website: CAx-Download-Managerhttps://siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
