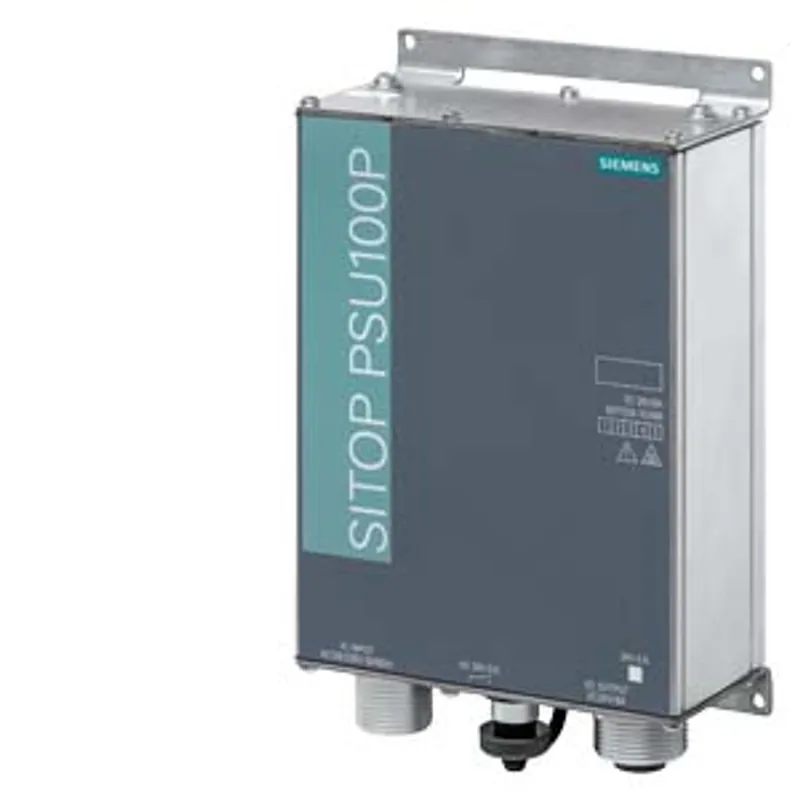

Siemens 6EP1334-7CA00
SITOP PSU100P/1AC/24VDC/8A/IP67 SITOP PSU100P IP67 Stabilized power supply input: 120/230 V AC
- MPN
- 6EP1334-7CA00
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6EP1334-7CA00?
SITOP PSU100P/1AC/24VDC/8A/IP67 SITOP PSU100P IP67 Stabilized power supply input: 120/230 V AC, output: 24 V DC/8 A
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP1334-7CA00 |
| Technical Product Detail Page | https://i.siemens.com/1P6EP1334-7CA00 |
| product brand name | SITOP |
| product type designation | PSU100P |
| product designation | Power supply SITOP |
| type of current supply | 24 V/8 A |
input
| type of the power supply network | 1-phase AC |
| phase number | 1 |
| voltage curve at input | AC |
| supply voltage at AC | Automatic range selection |
| supply voltage | 120 V/230 V |
| input voltage 1 at AC | 85 ... 132 V |
| input voltage 2 at AC | 170 ... 264 V |
| supply voltage — at 50 Hz | 230 V |
| supply voltage — at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| line frequency | 47 ... 63 Hz |
| wide range input | No |
| overvoltage overload capability | Implemented internally with varistor |
| buffering time for rated value of the output current in the event of power failure minimum | 40 ms |
| operating condition of the mains buffering | at Vin = 120/230 V |
| input current — at rated input voltage 120 V | 3.5 A |
| input current — at rated input voltage 230 V | 1.52 A |
| current limitation of inrush current at 25 °C maximum | 15 A |
| I2t value maximum | 0.6 A²·s |
| fuse protection type | T 6.3 A |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 6 A characteristic C/B |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage — at output 1 at DC rated value | 24 V |
| output voltage — at output 1 at DC | 24 V |
| output voltage adjustable | No |
| relative overall tolerance of the voltage | 3 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.1 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 0.2 % |
| residual ripple — maximum | 50 mV |
| voltage peak — maximum | 100 mV |
| display version for normal operation | Green LED: 24 V OK; red LED flashing: "overload/short-circuit" |
| type of signal at output | Relay contact (NO contact, rating 30 V AC/ 0.5 A; 30 V DC/1 A) for 24 V OK |
| behavior of the output voltage when switching on | Overshoot of Vout < 3 % |
| response delay maximum | 1.5 s |
| voltage increase time of the output voltage — typical | 23 ms |
| voltage increase time of the output voltage — maximum | 100 ms |
| output current — rated value | 8 A |
| output current — rated range | 0 ... 8 A |
| supplied active power typical | 206 W |
| short-term overload current — on short-circuiting during the start-up typical | 30 A |
| short-term overload current — at short-circuit during operation typical | 30 A |
| duration of overloading capability for excess current — on short-circuiting during the start-up | 50 ms |
| duration of overloading capability for excess current — at short-circuit during operation | 50 ms |
| bridging of equipment | Yes; Symmetric wiring required |
| number of parallel-switched equipment resources for increasing the power | 2 |
efficiency
| efficiency in percent | 93.6 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 13.1 W |
closed-loop control
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.2 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1 % |
| setting time — maximum | 2 ms |
protection and monitoring
| design of the overvoltage protection | < 29 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| typical | 9 A |
| enduring short circuit current RMS value — maximum | 9 A |
| enduring short circuit current RMS value — typical | 8 A |
| display version for overload and short circuit | Red LED flashing for "overload/short-circuit" |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current — maximum | 3.5 mA |
| leakage current — typical | 1 mA |
| protection class IP | IP67 |
EMC
| standard — for emitted interference | EN 55022 Class B |
| standard — for mains harmonics limitation | EN 61000-3-2 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1) |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — NEC Class 2 | No |
| type of certification — CB-certificate | No |
| MTBF at 40 °C | 800 000 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | No |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
ambient conditions
| ambient temperature — during operation | -25 ... +60 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | 3K6 without direct sunlight |
connection method
| type of electrical connection | screw terminal |
| at input | L1, N, PE: Plug connector 7/8" (counterpart see "Operating Instructions (compact)") |
| at output | +, -: Plug connector 7/8" (counterpart see "Operating Instructions (compact)") |
| for auxiliary contacts | Alarm signals: M12 plug-in connector 4-pin |
| removable terminal at input | Yes |
| removable terminal at output | Yes |
mechanical data
| width × height × depth of the enclosure | 120 × 181 × 60.5 mm |
| installation width × mounting height | 120 mm × 170 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 0 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
| fastening method | Wall mounting |
| DIN-rail mounting | No |
| S7 rail mounting | No |
| wall mounting | Yes |
| housing can be lined up | Yes |
| net weight | 1.3 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
