What is the Siemens 6EP1322-1LD00?

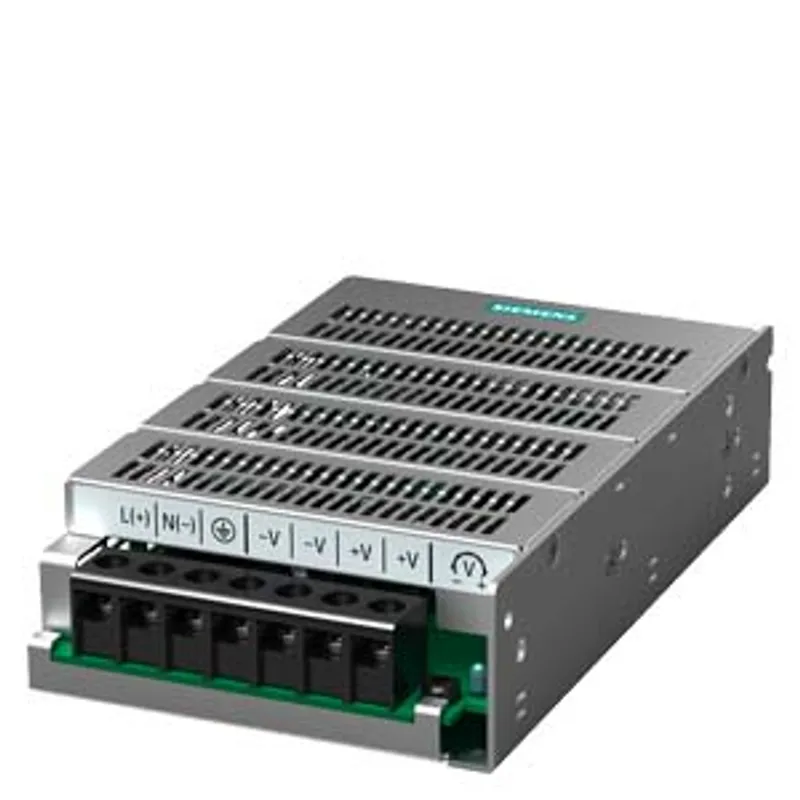

SITOP PSU100D/1AC/12VDC/8.3A ********** spare part ********* PSU100D 12 V/8.3 A stabilized power supply input: 100-240 V AC output: 12 V DC/8.3 A
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP1322-1LD00 |
| product brand name | PSU100D |
| product designation | Power supply SITOP |
| type of current supply | 12 V/8.3 A |
input
| type of the power supply network | 1-phase AC |
| phase number | 1 |
| voltage curve at input | AC |
| supply voltage at AC — minimum rated value | 100 V |
| supply voltage at AC — maximum rated value | 240 V |
| supply voltage at AC — initial value | 85 V |
| supply voltage at AC — full-scale value | 264 V |
| supply voltage — at 50 Hz | 240 V |
| supply voltage — at 60 Hz | 100 V |
| line frequency | 50/60 Hz |
| line frequency | 47 ... 63 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 15 ms |
| operating condition of the mains buffering | at Vin = 115/230 V |
| input current — at rated input voltage 100 V | 2 A |
| input current — at rated input voltage 240 V | 1.1 A |
| current limitation of inrush current at 25 °C maximum | 75 A |
| I2t value maximum | 5.5 A²·s |
| fuse protection type | internal |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 10 A characteristic C or from 16 A characteristic B |
output
| voltage curve at output | Controlled, isolated DC voltage |
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 12 V |
| output voltage — at output 1 at DC rated value | 12 V |
| output voltage — at output 1 at DC | 12 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 11 ... 14 V |
| relative overall tolerance of the voltage | 2 % |
| relative control precision of the output voltage — on slow fluctuation of input voltage | 0.5 % |
| relative control precision of the output voltage — on slow fluctuation of ohm loading | 1 % |
| residual ripple — maximum | 100 mV |
| voltage peak — maximum | 100 mV |
| display version for normal operation | Green LED for 12 V OK |
| behavior of the output voltage when switching on | Overshoot of Vout < 2 % |
| response delay maximum | 1 s |
| voltage increase time of the output voltage — maximum | 30 ms |
| output current — rated value | 8.3 A |
| output current — rated range | 0 ... 8.3 A; +50 ... +70 °C: Derating 2.5%/K |
| supplied active power typical | 100 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
efficiency
| efficiency in percent | 84 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 19 W |
closed-loop control
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.5 % |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 5 % |
protection and monitoring
| design of the overvoltage protection | < 17.6 V |
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| typical | 9.9 A |
| enduring short circuit current RMS value — typical | 10 A |
safety
| galvanic isolation between input and output | Yes |
| galvanic isolation | Safety extra low output voltage Vout according to EN 60950-1 |
| operating resource protection class | Class I |
| leakage current — maximum | 3.5 mA |
| leakage current — typical | 1 mA |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | EN 55022 Class B |
| standard — for mains harmonics limitation | EN 61000-3-2 |
| standard — for interference immunity | EN 61000-6-2 |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus (UL 60950-1, CSA C22.2 No. 60950-1), File E151273 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — NEC Class 2 | No |
| type of certification — CB-certificate | Yes |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | No |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
standards, specifications, approvals Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 605.9 kg |
| global warming potential [CO2 eq] — during manufacturing | 11.3 kg |
| global warming potential [CO2 eq] — during operation | 594.3 kg |
| global warming potential [CO2 eq] — after end of life | 0.17 kg |
ambient conditions
| ambient temperature — during operation | -10 ... +70 °C; with natural convection |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
connection method
| type of electrical connection | screw terminal |
| at input | L, N, PE: 1 screw terminal each for 0.3 ... 1.3 mm² single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.3 ... 1.3 mm² |
| for auxiliary contacts | - |
mechanical data
| width × height × depth of the enclosure | 97 × 158 × 38 mm |
| required spacing — top | 20 mm |
| required spacing — bottom | 0 mm |
| required spacing — left | 20 mm |
| required spacing — right | 20 mm |
| fastening method | Wall mounting |
| DIN-rail mounting | No |
| S7 rail mounting | No |
| wall mounting | Yes |
| net weight | 0.57 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
