Siemens 6DL1193-6BP00-0DW0
Ex I/O module
- MPN
- 6DL1193-6BP00-0DW0
- Category
- Ex I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

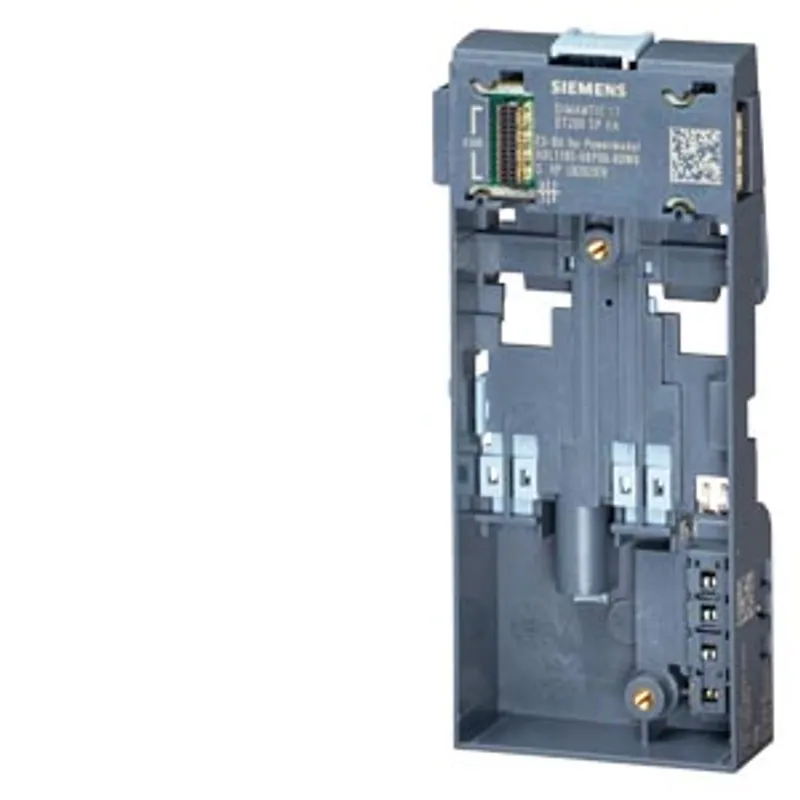

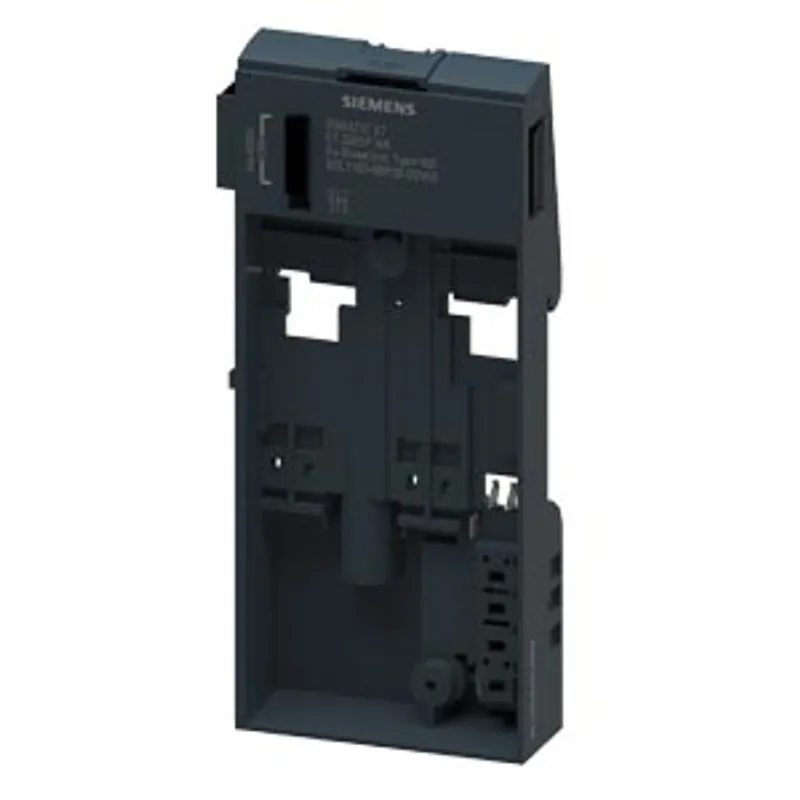

What is the Siemens 6DL1193-6BP00-0DW0?
SIMATIC ET 200SP HA, ET 200SP, BaseUnit type W0, for power module Ex-PM E, WxH: 50 mm x 117 mm
Specifications
General information
| Product type designation | BU type W0 |
| Product function — I&M data | Yes; Asset data |
Current carrying capacity
| For P1 and P2 bus, max. | 10 A |
Hardware configuration
| Formation of potential groups — support of potential groups | Yes |
| Formation of potential groups — New potential group | Yes |
| Formation of potential groups — Potential group continued from the left | No |
| Slots — Number of slots | 1 |
Potential separation
| between backplane bus and supply voltage | Yes |
Isolation
| Isolation tested with | further information on insulation can be found in the "ET 200SP HA / ET 200SP modules for devices in hazardous areas” System Manual |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -40 °C |
| Ambient temperature during operation — horizontal installation, max. | 70 °C |
| Ambient temperature during operation — vertical installation, min. | -40 °C |
| Ambient temperature during operation — vertical installation, max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |

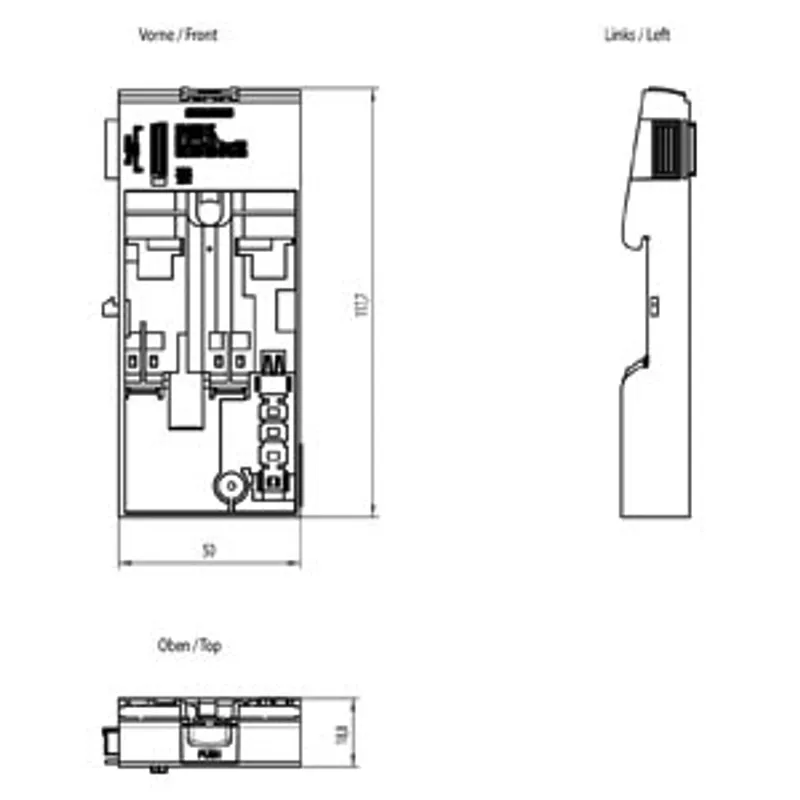

Dimensions
| Width | 50 mm |
| Height | 117 mm |
| Depth | 19 mm |
Weights
| Weight, approx. | 38 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6DL1193-6BP00-0DW0: frequently asked questions
When can 6DL1193-6BP00-0DW0 be shipped?
6DL1193-6BP00-0DW0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6DL1193-6BP00-0DW0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6DL1193-6BP00-0DW0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6DL1193-6BP00-0DW0, subject to availability and destination.
