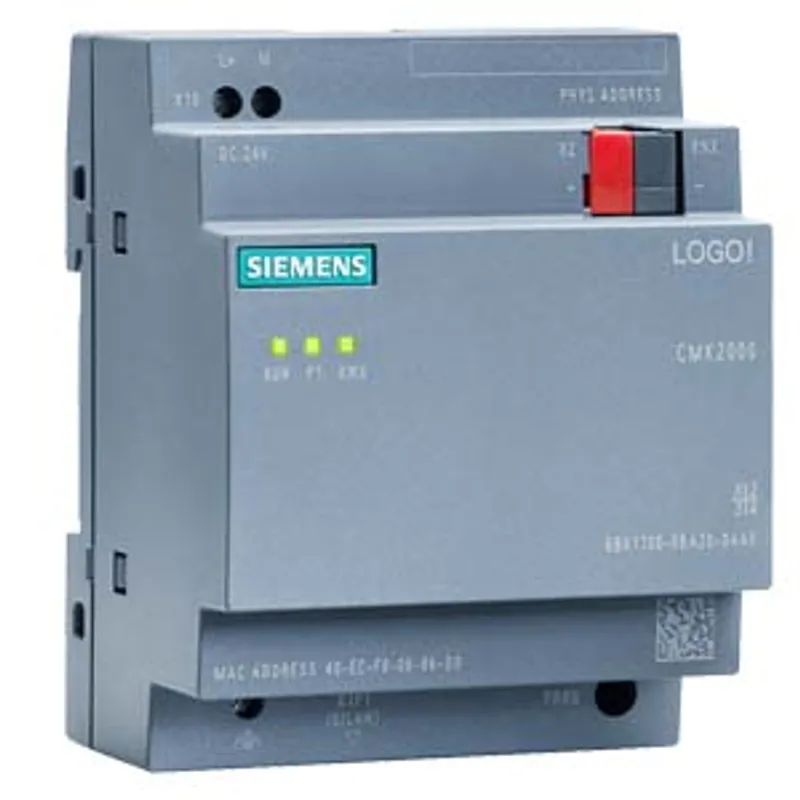

Siemens 6BK1700-0BA20-0AA0
LOGO! CMK2000 Communication module for integrating the LOGO! 8 "in the building system bus KNX
- MPN
- 6BK1700-0BA20-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6BK1700-0BA20-0AA0?
LOGO! CMK2000 Communication module for integrating the LOGO! 8 "in the building system bus KNX;" connection 24 V DC 0.04A 1 RJ45 port for Ethernet 50 communication objects time-of-day synchronization Configuration/diagnostics via web interface
Specifications
General information
| Firmware version — FW update possible | Yes |
Installation type/mounting
| Mounting | on 35 mm DIN rail, 4 spacing units wide |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption, max. | 0.04 A |
Storage
| Flash | Yes |
Time of day
| Clock synchronization — supported | Yes |
Interfaces
| Number of industrial Ethernet interfaces | 1; Ethernet, 1 port, RJ45 |
| Number of other interfaces | 1; EIB/KNX |
| Transmission rate, max. | 100 Mbit/s over Ethernet, 9 600 bit/s over KNX |
| Design of plug-in connection | KNX terminal 0.6 mm² - 1.0 mm² |
Protocols
| EIB/KNX | Yes |
| Web server — supported | Yes |
Communication functions
| S7 basic communication — supported | No |
| LOGO! communication — supported | Yes |
Interrupts/diagnostics/status information
| Diagnostics indication LED — RUN/STOP LED | Yes |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas | Yes; In accordance with EN 61000-6-3 |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | No |
| RCM (formerly C-TICK) | No |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| according to VDE 0631 | No |
| Marine approval | No |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 55 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Relative humidity — Operation, max. | 95 % |
Connection method
| Design of electrical connection for supply voltage | 2 screw-type terminals: L+, M 0.5 mm² - 2.5 mm² Screw-type terminal: FE 0.5 mm² ... 6.0 mm² |
Dimensions
| Width | 71.5 mm; 4TE |
| Height | 90 mm |
| Depth | 58.5 mm |
Weights
| Weight, approx. | 0.14 kg |
