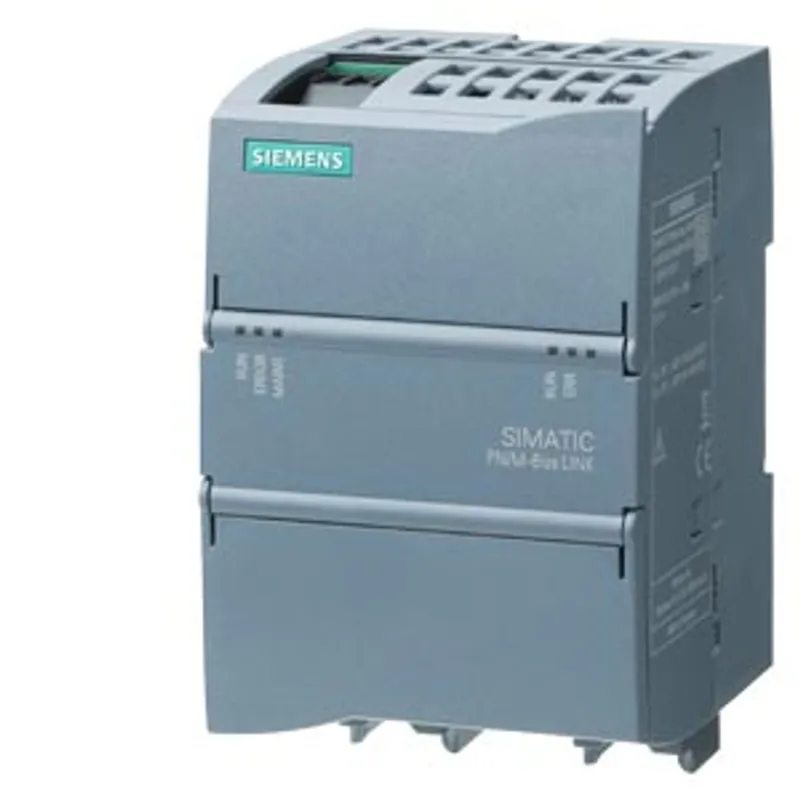

Siemens 6BK1622-0AA00-0AA0
SIMATIC PN/M-Bus LINK coupling module for Profinet to M-Bus Fieldbus, M-Bus Master, IP20
- MPN
- 6BK1622-0AA00-0AA0
- Category
- PN/M-Bus LINK
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6BK1622-0AA00-0AA0?
SIMATIC PN/M-Bus LINK coupling module for Profinet to M-Bus Fieldbus, M-Bus Master, IP20
Specifications
General information
| Product type designation | PN/M-Bus LINK |
| Firmware version | V1.0.0 |
| Firmware version — FW update possible | Yes |
| Product function — I&M data | Yes |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 or higher |
| Engineering with — PROFINET from GSD version/GSD revision | GSDML V2.3.x |
Installation type/mounting
| Mounting | DIN rail, wall mounting, portrait mounting |
| Mounting position | any |
| Recommended mounting position | Horizontal |
| Rail mounting | Yes |
| Control cabinet installation | Yes |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Overvoltage protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 10 ms; PN side |
Input current
| Current consumption (rated value) | 0.11 A; At 24 V and 5 loads |
| Current consumption, max. | 0.4 A; At 20.4 V, 40 loads + 100 mA short-circuit current |
Power loss
| Power loss, typ. | 2.4 W |
Interfaces
| Supports protocol for PROFINET IO — automatic detection of transmission rate | No |
| Supports protocol for PROFINET IO — Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO — Number of RJ45 ports | 2 |
| Supports protocol for PROFINET IO — Number of FC (FastConnect) connections | 2 |
| PROFINET functions — Assignment of the IP address, supported | Yes |
| PROFINET functions — Assignment of the device name, supported | Yes |
1. Interface
| Interface type | M-Bus master |
| Isolated | No |
| Interface types — Number of ports | 1 |
| Interface types — Design of the connection | 3-wire screw-type terminal |
| M-Bus — Bus voltage, typ. | 36 V |
| M-Bus — Transmission rate, min. | 300 bit/s |
| M-Bus — Transmission rate, max. | 9 600 bit/s |
| M-Bus — max. number of devices | 40 |
| M-Bus — Short-circuit detection | Yes |
| M-Bus — short-circuit proof | Yes |
| M-Bus — Connectable conductor cross-section | 1.5 mm² |
| M-Bus — Cable length, max. | 300 m |
2. Interface
| Interface type | PROFINET |
| Isolated | Yes; 1 500 V AC or 2 250 V DC |
| Interface types — RJ 45 (Ethernet) | Yes |
| Interface types — Number of ports | 2 |
| Interface types — integrated switch | Yes |
| Protocols — PROFINET IO device | Yes |
| Protocols — Open IE communication | Yes |
Interrupts/diagnostics/status information
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — RUN LED | Yes |
| Diagnostics indication LED — ERROR LED | Yes |
| Diagnostics indication LED — MAINT LED | Yes |
| Diagnostics indication LED — LINK LED | Yes |
| Diagnostics indication LED — RX/TX LED | Yes |
Potential separation
| Potential separation exists | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| RoHS conformity | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 50.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 14.4 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 36.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.52 kg |
Ambient conditions
| Ambient temperature during operation — horizontal installation, min. | -25 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -25 °C |
| Ambient temperature during operation — vertical installation, max. | 55 °C |
| Ambient temperature during operation — ceiling installation, min. | -25 °C |
| Ambient temperature during operation — ceiling installation, max. | 45 °C |
| Ambient temperature during operation — floor installation, min. | -25 °C |
| Ambient temperature during operation — floor installation, max. | 45 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Relative humidity — Operation, max. | 95 % |

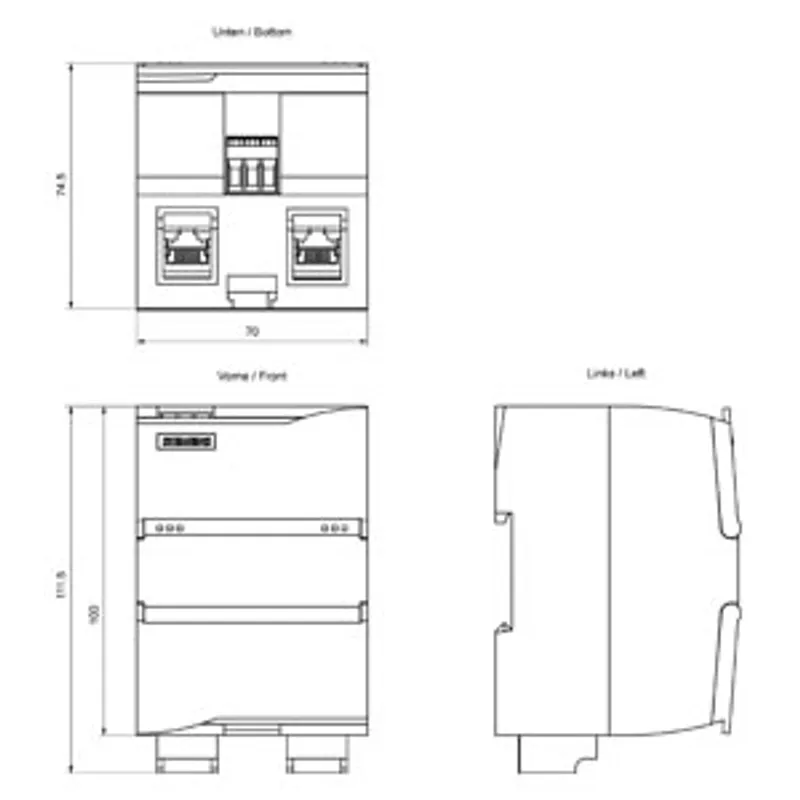

Dimensions
| Width | 70 mm |
| Height | 112 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 215 g |
