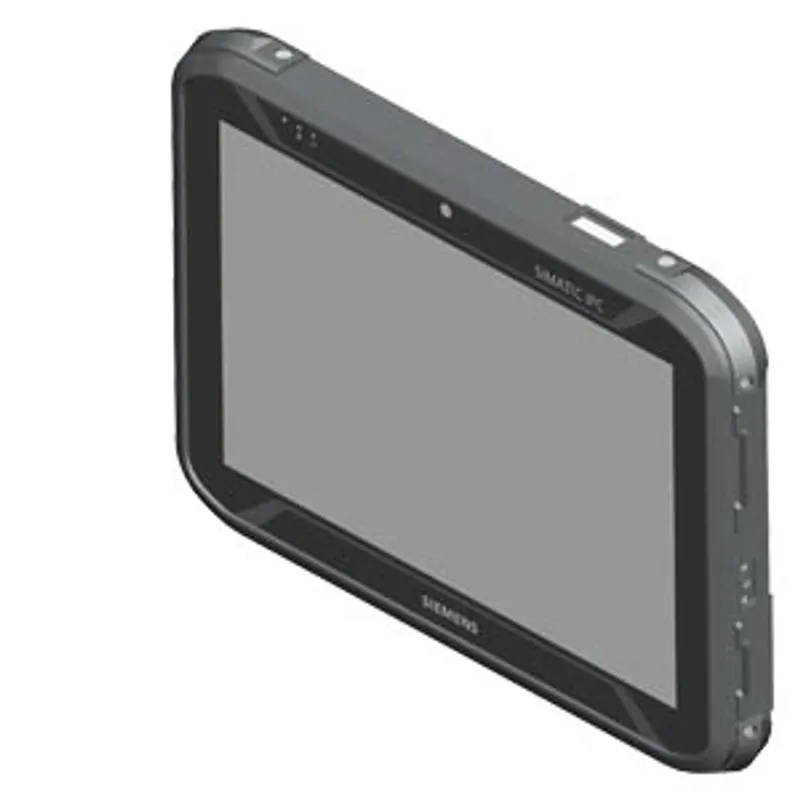

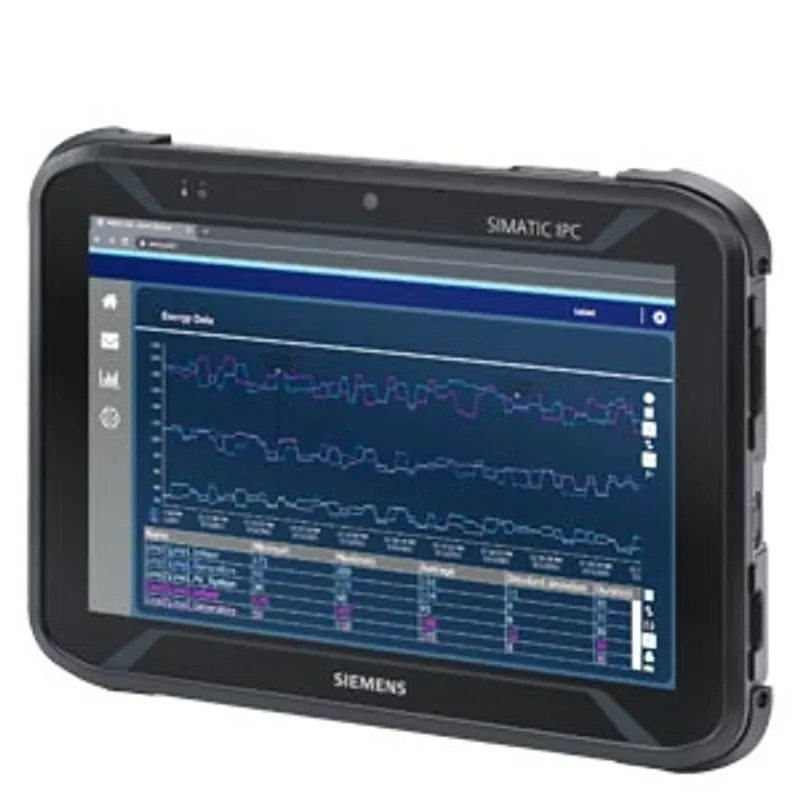

Siemens 6AV7880-4AA01-0AA2
SIMATIC IPC MD-34A with PD Entry 10.1" multi-touch 256 GB SSD
- MPN
- 6AV7880-4AA01-0AA2
- Category
- SIMATIC IPC MD-34A
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7880-4AA01-0AA2?
SIMATIC IPC MD-34A with PD Entry 10.1" multi-touch 256 GB SSD, 8 GB RAM Intel Core i5-11th Windows 10 IoT Enterprise LTSC 21H2, resolution 1280x800 pixels brightness: 350 cd/m2 Wi-Fi, Bluetooth with 3,500 mAh battery; you must select your power supply cord: EU: 6ES7900-5AA00-0XA0 GB: 6ES7900-5BA00-0XA0 Swiss: 6ES7900-5CA00-0XA0 USA: 6ES7900-5DA00-0XA0 Italy: 6ES7900-5EA00-0XA0 China: 6ES7900-5FA00-0XA0 India: 6ES7900-5GA00-0XA0
Specifications
General information
| Design of the programming device | Mobile computer |
Display
| Design of display | 10.1" TFT LCD with Multi-Touch |
| Screen diagonal | 10.1 in; TFT display, LED backlighting |
| Resolution (pixels) — Horizontal image resolution | 1 280 pixel |
| Resolution (pixels) — Vertical image resolution | 800 pixel |
| General features — Non-reflecting | Yes; Anti-Glare, etching on cover glass |
| General features — Luminance | 350 cd/m² |
| Backlighting — Type of backlighting | LED |
Control elements
| Keyboard — Design | Touch |
| Touch operation — Integrated touch pad | No |
Supply voltage
| Design of the power supply | External wide-range power supply; 3-pole |
| Rated value (DC) | 19 V |
| permissible range, lower limit (AC) | 100 V; ±10 %, sinusoidal |
| permissible range, upper limit (AC) | 240 V; ±10 %, sinusoidal |
Processor
| Processor type | Intel Core i5-1135G7 2.4 GHz |
| Chipset | Intel HM570 PCH |
| Hyper-threading | No |
| Turbo Boost Technology 2.0 | Yes |
Graphic
| Graphics controller | Intel® Iris® Xe Integrated Graphics Controller |
Drives
| CD-RW | No |
| DVD-ROM | No |
| DVD-RW | No |
| Hard disk | No |
| Hard disk — Memory capacity | 8 Gbyte |
| SSD | Yes |
| SSD — Memory capacity | 256 Gbyte |
| TPM Security Chip | Yes; 2.0 (version for China without TPM) |
Storage
| Type of memory | DDR4 SO-DIMM |
| Work memory — integrated | 8 Gbyte |
| Work memory — Number of slots | 1 |
Accumulator
| Replaceable | Yes; Lithium-ion battery |
| Capacity | 3 500 mA·h |
| Battery runtime, min. | 6 h |
Hardware configuration
| Slots — Number of ExpressCard slots | 0 |

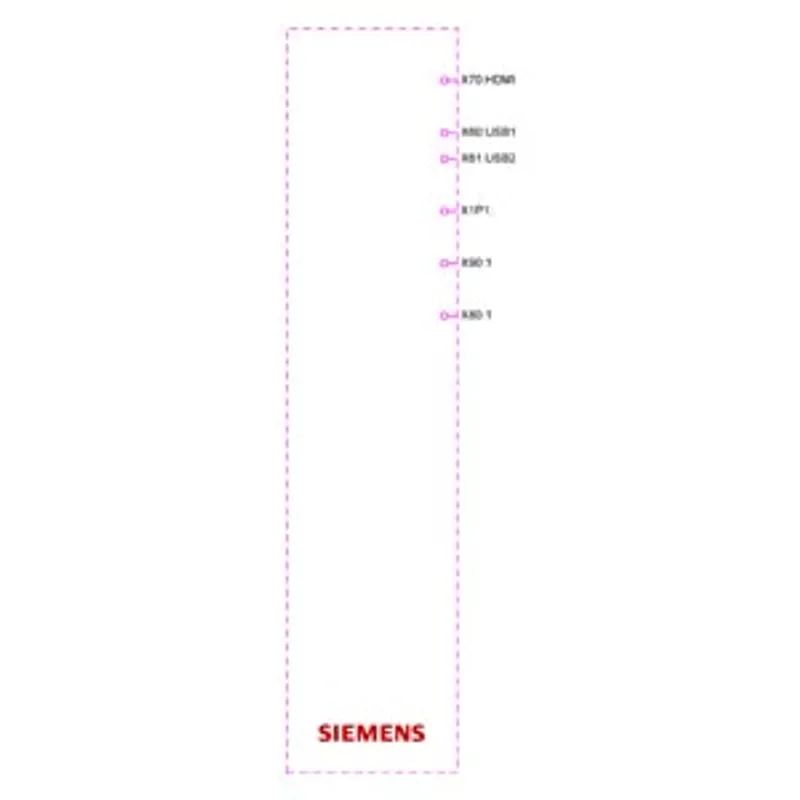

Interfaces
| Number of industrial Ethernet interfaces | 1 |
| Number of interfaces PROFIBUS DP | 0 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2 |
| Number of USB interfaces — Type A | 1; USB 3.0 |
| Number of USB interfaces — type C | 1; USB 3.0 |
| MPI | No |
| Bluetooth radio standard | Yes; V5.3 |
| Universal Audio Jack | Yes; combo audio socket for 3.5 mm jack |
| Video interfaces — analog video signal (VGA) | No |
| Video interfaces — DVI-I | No |
| Video interfaces — DisplayPort | No |
| Video interfaces — Micro HDMI | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes |
| Industrial Ethernet — Wake on LAN | No |
| Industrial Ethernet — IAMT (Intel Active Management Technology) | No |
| WLAN — Type | 802.11 a/b/g/n/ac/ax |
Interrupts/diagnostics/status information
| LED status display | 2x LED Indicator for Power, Battery |
EMC
| Interference immunity against discharge of static electricity — Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes; ±6 kV contact discharge acc. to IEC 61000-4-2, ESD; ±8 kV air discharge acc. to IEC 61000-4-2, ESD |
| Interference immunity against discharge of static electricity — Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 — Test voltage at air discharge | 8 kV |
| Interference immunity against discharge of static electricity — Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 — Test voltage at contact discharge | 6 kV |
| Interference immunity to cable-borne interference — Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes; 2 kV acc. to IEC 61000-4-4, burst |
| Interference immunity to cable-borne interference — Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes; 1 kV acc. to IEC 61000-4-4, burst, length < 3 m; 2 kV acc. to IEC 61000-4-4, burst, length > 3 m |
| Emission of radio interference acc. to EN 55 022 — Interference emission acc. to EN 55022, class B | Yes; CISPR 32 Class B |
Degree and class of protection
| IP degree of protection | IP65 |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | No |
| FCC | Yes |
| Military use — Conforms to MIL-STD-810G | No |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; AC mode |
| Ambient temperature during operation — max. | 60 °C; AC mode |
| Ambient temperature during storage/transportation — min. | -30 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Relative humidity — Operation, min. | 50 %; non condensing |
| Relative humidity — Operation, max. | 95 %; non condensing |
| Vibrations — Operation, tested according to IEC 60068-2-6 | Yes; Operating: Frequency / Deflection 10 - 58 Hz / 0.0375 mm 58 - 200 Hz / 4.9 m/s², 10 cycles Storage/Transportation: Cycles per Axle 10 / Octaves/min 1 Frequency / Deflection 5 - 8.4 Hz / 3.5 mm 8.4 - 500Hz / 9.8 m/s² |
| Shock testing — tested according to IEC 60068-2-27 | Yes; operating: 15G, 11ms half sine; The interval time is set to 2 or 3 seconds generally, 3 Shock times per direction Storage/Transportation: 25G, 6ms half sine, The interval time is set to 2 or 3 seconds generally |
| Shock testing — tested according to IEC 60068-2-29 | No |
Operating systems
| Local language of operating system | Multi-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese) |
| pre-installed operating system — Windows 10 | Yes; Windows 10 IoT Enterprise 2021 LTSC |
Software
| Preinstalled — STEP 7 Professional 2010 | No |
| Preinstalled — STEP 7 Professional (TIA Portal) | No |
| Preinstalled — STEP 7 | No |
| Preinstalled — WinCC flexible Advanced 2008 | No |
| Preinstalled — WinCC Advanced (TIA Portal) | No |
| Preinstalled — STEP 5 | No |
Mechanics/material
| Material of housing | plastic |
| Handle | No |
| Socket for Kensington lock | Yes |
| rubber corner guards | Yes; 4 corners covered by rubber bumpers as protectors |

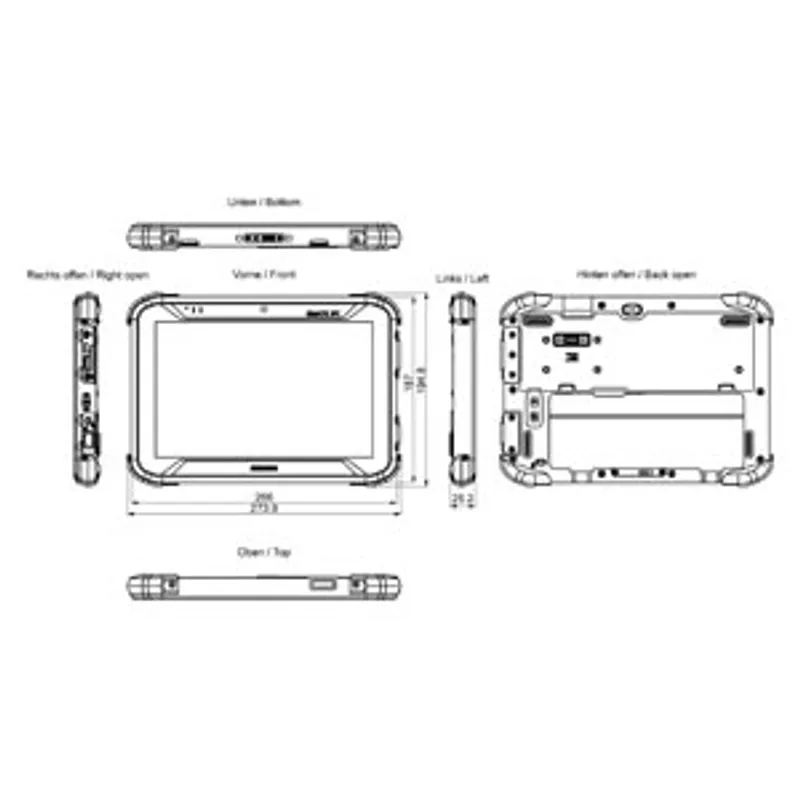

Dimensions
| Width | 272 mm |
| Height | 25 mm |
| Depth | 192 mm |
Weights
| Weight, approx. | 1.1 kg |
Scope of supply
| Accumulator | Yes |
| Power supply unit | Yes |
| backpack | No |
| SIMATIC Software | No |
| Recovery media | No; Restore & Recovery |
