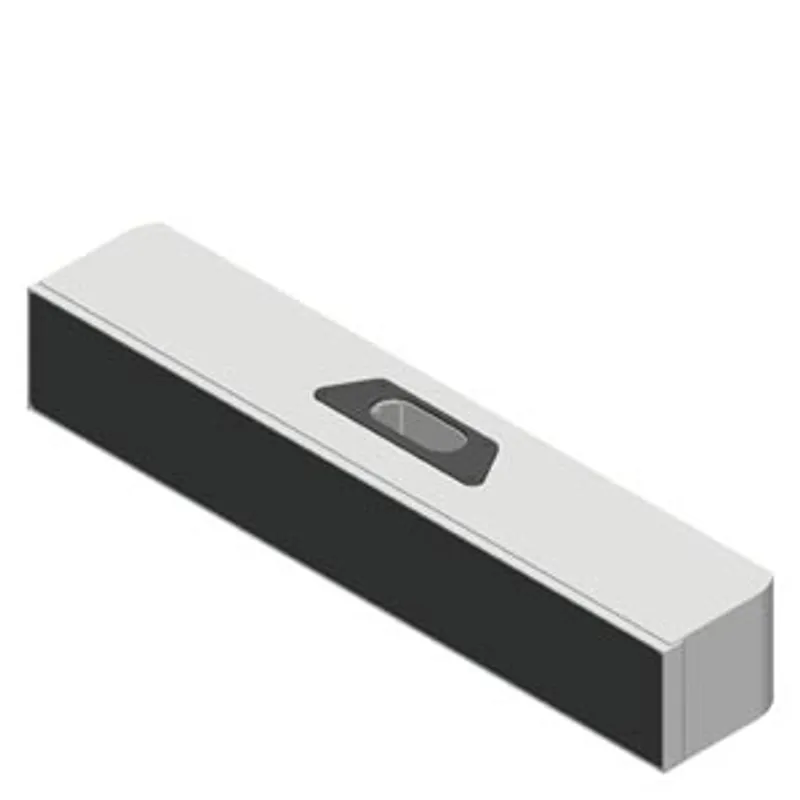

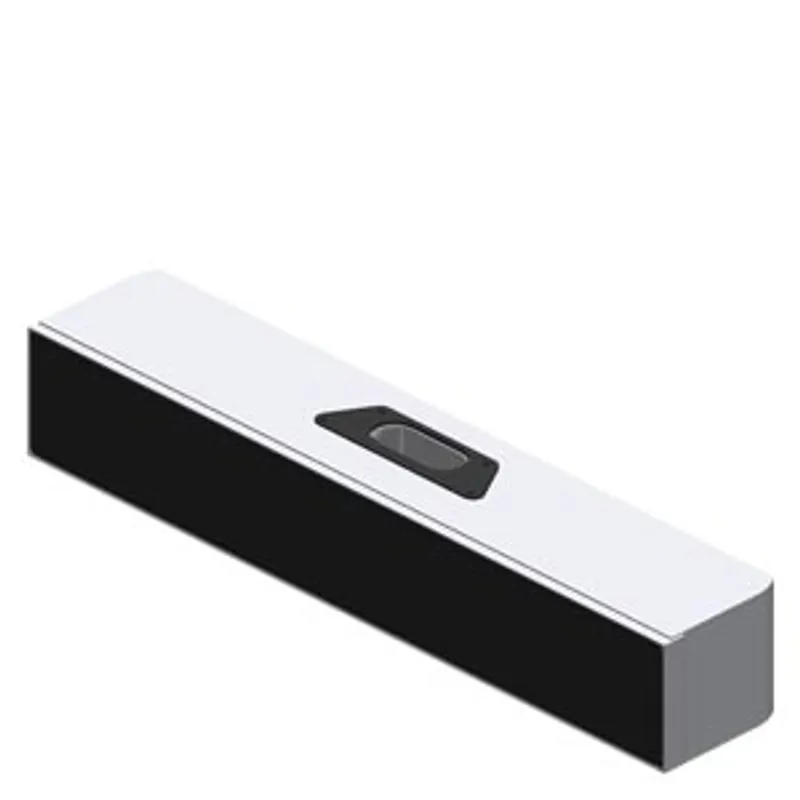

Siemens 6AV7674-1LA70-0AA0
Extension Unit box 24" for mounting on all fully IP65-enclosed 16:9 HMI/IPC devices
- MPN
- 6AV7674-1LA70-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7674-1LA70-0AA0?
Extension Unit box 24" for mounting on all fully IP65-enclosed 16:9 HMI/IPC devices. Deep empty enclosure for the flexible installation of operator controls, (without pre-perforation)
Specifications
General information
| Product type designation | Extension Unit box 24" |
Installation type/mounting
| Mounting | For mounting on a 16:9 HMI / IPC PRO device (lower part) |
| Mounting type | Screwed joint |
| Rack mounting | No |
| Front mounting | No |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
Degree and class of protection
| IP (all-round) | IP65 |
| NEMA (front) — Enclosure Type 4 at the front | Yes |
Standards, approvals, certificates
| RoHS conformity | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Relative humidity — Operation, max. | 90 %; no condensation |
Mechanics/material
| Material — aluminum | Yes; Powder-coated |
| Enclosure material (front) — aluminum | Yes; Covered with black film |

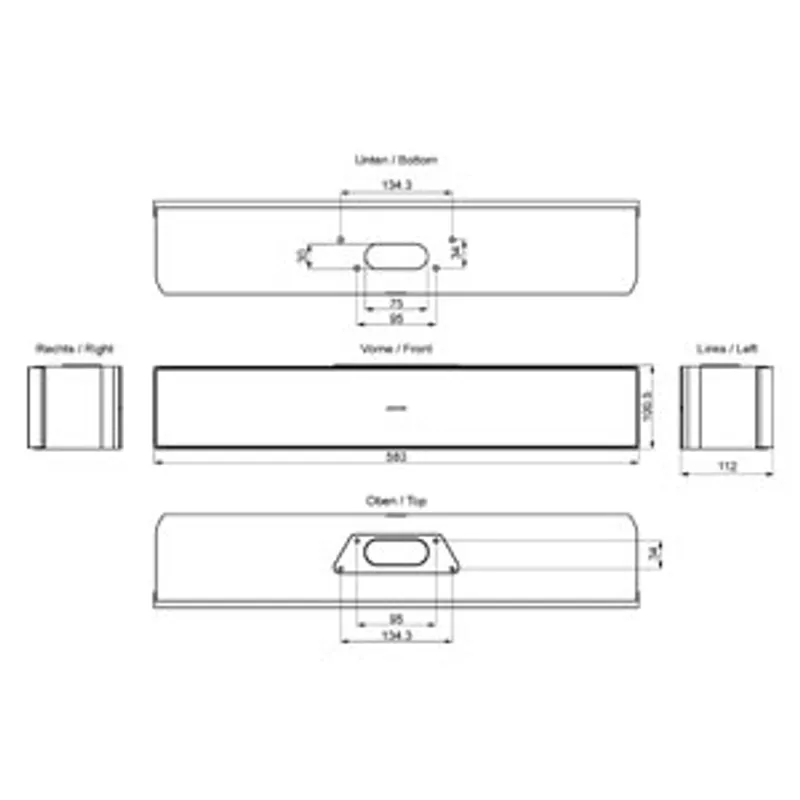

Dimensions
| Width | 583 mm |
| Height | 99 mm |
| Depth | 112 mm |
Weights
| Weight (without packaging) | 3.1 kg |
| Weight (with packaging) | 3.3 kg |
Scope of supply
| Delivery quantity in pieces | 1 |
| Components included | Screws for attachment |
Other
| Target devices | PRO devices for support arm (extendable, round tube) and pedestal (extendable, flange below) |
