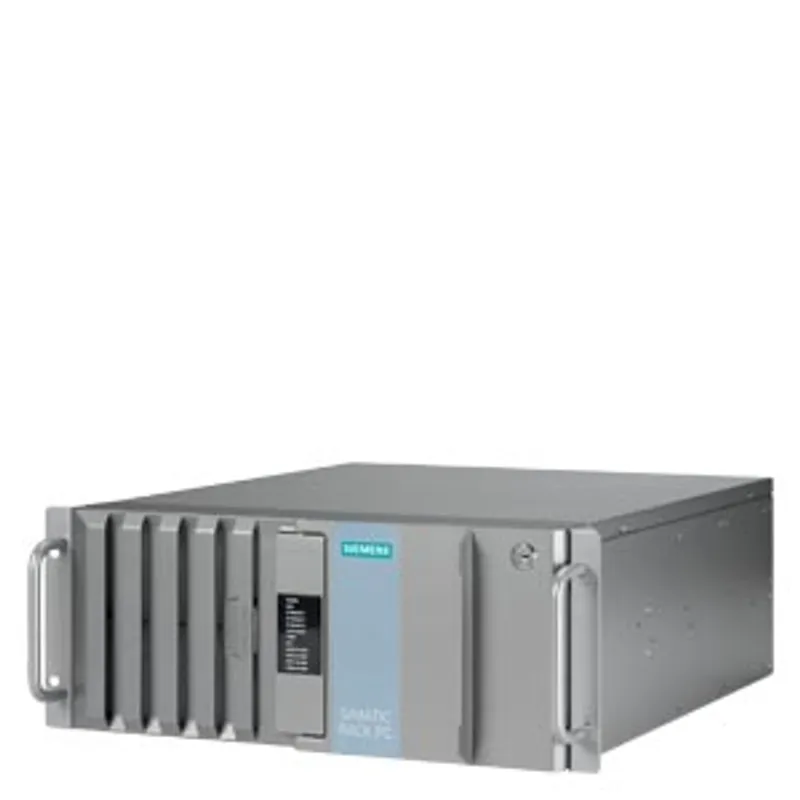

Siemens 6AG4114-3RR15-0WY0
SIMATIC IPC847E (rack PC), 3x Gbit Ethernet (IE/PN), 1x DVI-D, 2x DP, 1x COM1, audio, 6x USB3.1
- MPN
- 6AG4114-3RR15-0WY0
- Category
- SIMATIC IPC847E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG4114-3RR15-0WY0?
SIMATIC IPC847E (rack PC), 3x Gbit Ethernet (IE/PN), 1x DVI-D, 2x DP, 1x COM1, audio, 6x USB3.1; Xeon E-2278GE (8C/16T); 11 slots (8x PCIe, 3x PCI); 960 GB SSD 2.5 SATA; enclosure with drive support type A (for rack units); 100/240 V AC industrial power supply unit; 128 GB DDR4 SDRAM(4x 32 GB); Industrial Edge (Simatic); TPM 2.0
Specifications
General information
| Product type designation | IPC847E |
Installation type/mounting
| Mounting | For horizontal and vertical installation; prepared for telescopic rails; 19" mounting bracket can be removed externally; tower kit (optional) |
| Design | Rack PC, 19", 4U |
Supply voltage
| Type of supply voltage | 100/240V AC (autorange) 50/60 Hz |
| Line frequency — Rated value 50 Hz | Yes |
| Line frequency — Rated value 60 Hz | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
Processor
| Processor type | Intel Xeon E-2278GE (8C/16T, 3.3 (4.7) GHz, 16 MB cache, Turbo Boost 2.0, VT-x/-d technology, iAMT) |
| Chipset | Intel C246 |
Graphic
| Graphics controller | Intel® UHD Graphics 630 |
Drives
| SSD | Yes; 960 GB, 2.5" SATA SSD |
| Slot for drives | installed on the front in removable drive bay trays in a Type A drive cage |
Storage
| Main memory | 128 GB DDR4 2666 SDRAM DIMM |
| Capacity of main memory, max. | 128 Gbyte |
Interfaces
| Interfaces/bus type | 1x COM1, 1x COM2 (optional), 2x DisplayPort, 1x DVI-D, audio (microphone in, line in, line out), 9x USB, 3x Gigabit Ethernet |
| serial interface | COM1: 1x RS 232 |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes |
Interrupts/diagnostics/status information
| LED status display | POWER, HDD, ETHERNET 1, ETHERNET 2, ETHERNET 3, WATCHDOG, TEMP, FAN, HDD3 ALARM, HDD2 ALARM, HDD1 ALARM, HDD0 ALARM |
Integrated Functions
| Monitoring functions — Fan | Yes |
| Monitoring functions — Monitoring function via network | Optional |
Degree and class of protection
| IP (at the front) | IP41 |
| IP (rear) | IP20 |
Standards, approvals, certificates
| CE mark | Yes; For use in industrial areas as well as domestic, business and commercial environments (emitted interference: EN 61000-6-3:2007 +A1:2011, noise immunity: EN 61000-6-2:2005) |
| CSA approval | Yes; CAN/CSA-C22.2 No. 61010-2-201 Second Edition |
| UL approval | Yes; UL 61010-2-201 Second Edition, File E85972 |
| cULus | Yes; UL 61010-2-201 Second Edition; CAN/CSA-C22.2 No. 61010-2-201 Second Edition |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| Dust protection | With front door closed: G2 EN 779, 99% of particles > 0.5 mm are filtered |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C; Max. 10 °C/h (no condensation) |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -20 °C; Max. 20 °C/h (no condensation) |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | Tested according to IEC 60068-2-6: 10 cycles, 10 Hz to 58 Hz: 0.0375 mm, 58 Hz to 500 Hz: 4.9 m/s² (0.5 g) |
Operating systems
| without operating system | Yes |
Dimensions
| Width | 430 mm |
| Height | 177 mm; 4U |
| Depth | 444 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG4114-3RR15-0WY0: frequently asked questions
When can 6AG4114-3RR15-0WY0 be shipped?
6AG4114-3RR15-0WY0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG4114-3RR15-0WY0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG4114-3RR15-0WY0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG4114-3RR15-0WY0, subject to availability and destination.
