Siemens 6AG1055-1FB00-7BA2
SIPLUS LOGO! DM8 230V based on 6ED1055-1FB00-0BA2 with conformal coating, -40…+70 °C, start up -25 °C
- MPN
- 6AG1055-1FB00-7BA2
- Category
- SIPLUS LOGO! expansion modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1055-1FB00-7BA2?

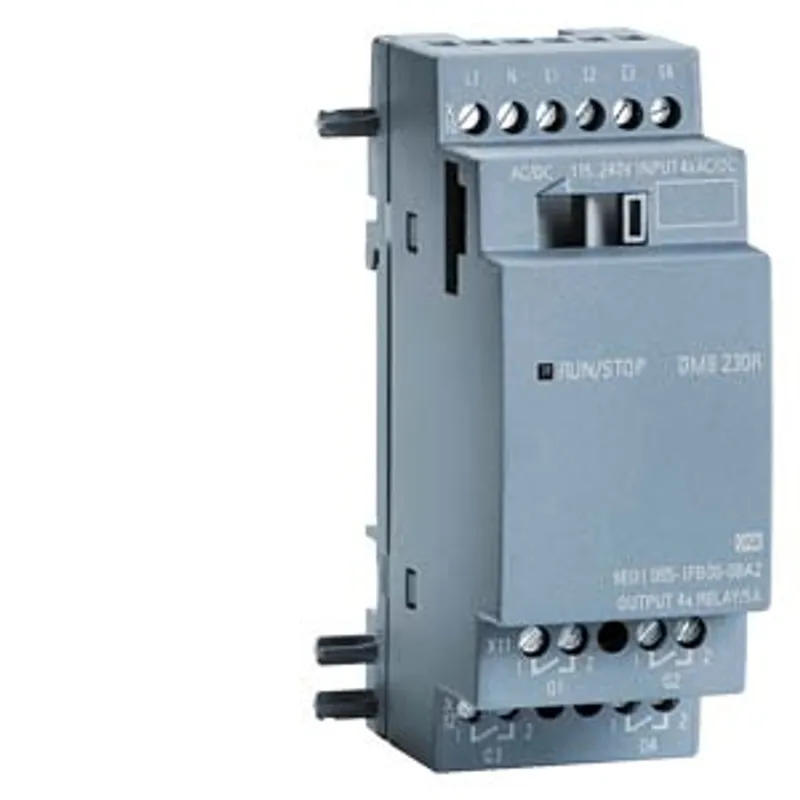

SIPLUS LOGO! DM8 230V based on 6ED1055-1FB00-0BA2 with conformal coating, -40…+70 °C, start up -25 °C, expansion module, power supply / I/O: 230 V/230 V/relay, 2 MW, 4 DI/4 DQ for LOGO! 8
Specifications
General information
| based on | 6ED1055-1FB00-0BA2 |
Installation type/mounting
| Mounting | on 35 mm DIN rail, 2 spacing units wide |
Supply voltage
| Rated value (DC) — 115 V DC | Yes |
| Rated value (DC) — 230 V DC | Yes |
| permissible range, lower limit (DC) | 100 V |
| permissible range, upper limit (DC) | 253 V |
| Rated value (AC) — 115 V AC | Yes |
| Rated value (AC) — 230 V AC | Yes |
| Line frequency — permissible range, lower limit | 47 Hz |
| Line frequency — permissible range, upper limit | 63 Hz |
Digital inputs
| Number of digital inputs | 4 |
| Input voltage — Type of input voltage | AC/DC |
| Input voltage — for signal "0" | < 40 V AC, < 30 V DC |
| Input voltage — for signal "1" | > 79 V AC, > 79 V DC |
| Input current — for signal "0", max. (permissible quiescent current) | 0.06 mA; 0.05 mA with AC, 0.06 mA with DC |
| Input current — for signal "1", typ. | 0.37 mA |
| Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max. | 40 ms |
| Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max. | 75 ms |
Digital outputs
| Number of digital outputs | 4; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| Switching capacity of the outputs — on lamp load, max. | 1 000 W; 500 W at 115V AC |
| Output current — for signal "1" rated value | 5 A |
| Output current — for signal "1" minimum load current | 100 mA |
| Parallel switching of two outputs — for uprating | No |
| Switching frequency — with resistive load, max. | 2 Hz |
| Switching frequency — with inductive load, max. | 0.5 Hz |
| Switching frequency — mechanical, max. | 10 Hz |
| Relay outputs — Switching capacity of contacts — with inductive load, max. | 3 A |
| Relay outputs — Switching capacity of contacts — with resistive load, max. | 5 A |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 145 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 7.49 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 138 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.491 kg |
Ambient conditions
| Ambient temperature during operation — min. | -40 °C; = Tmin; Startup @ -25 °C |
| Ambient temperature during operation — max. | 70 °C; = Tmax; Tmax > +55 °C max. load 3 A per relay or max. total current 10 A |
| Ambient temperature during operation — At cold restart, min. | -25 °C; incl. condensation / frost permitted (no commissioning under condensation conditions) |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Dimensions
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
